Generac Power Systems GTH990 User Manual

6-6
SECTION 6: ELECTRIC STARTER

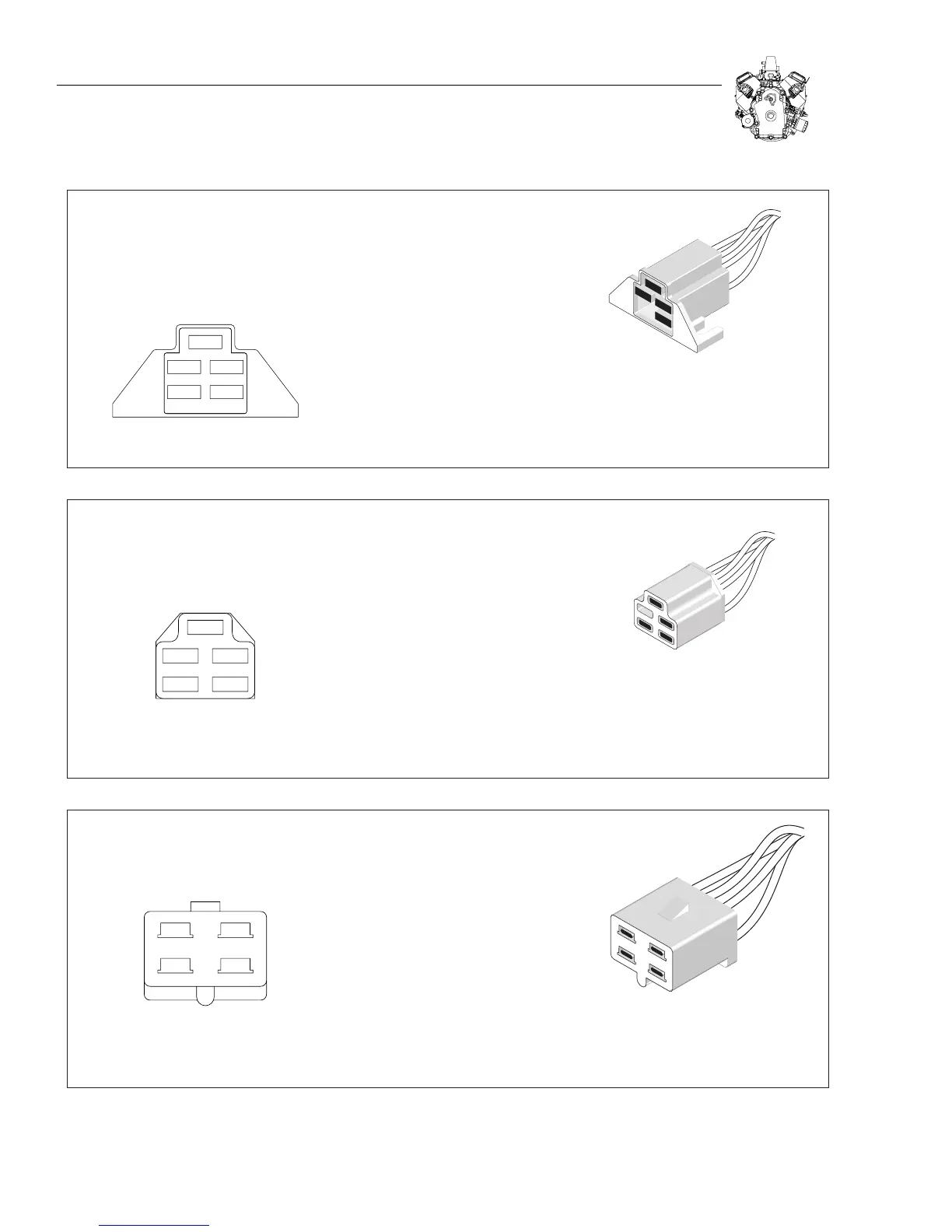

Figure 6-12. Optional Wire Harness Terminal Identification
WIRE HARNESS
(PACKARD CONNECTOR #03138080)
LEGEND
1 - IGNITION KILL TERMINAL - YELLOW
2 - STARTER SOLENOID - ORANGE
3 - CARBURETOR FUEL SOLENOID - WHITE
4 - LOW OIL PRESSURE SWITCH - BROWN
5 - OPEN
1
2
3
4
5
LEGEND
1. LOW OIL PRESSURE SWITCH - BROWN
2. IGNITION KILL TERMINAL - YELLOW
3. OPEN
4. CARBURETOR FUEL SOLENOID - WHITE
5. STARTER SOLENIOD - ORANGE
WIRE HARNESS
(PACKARD CONNECTOR #2973422)
12
3
4
5
WIRE HARNESS
(PACKARD CONNECTOR #2977048)
LEGEND
1 - IGNITION KILL TERMINAL - YELLOW
2 - BATTERY CHARGER - RED
3 - LOW OIL PRESSURE SWITCH - BROWN
4 - CARBURETOR FUEL SOLENOID - WHITE
4
2
3
1
