Automatic Transfer Switch Owner’s Manual 21
Section 5: Drawings and Diagrams
Installation Drawings

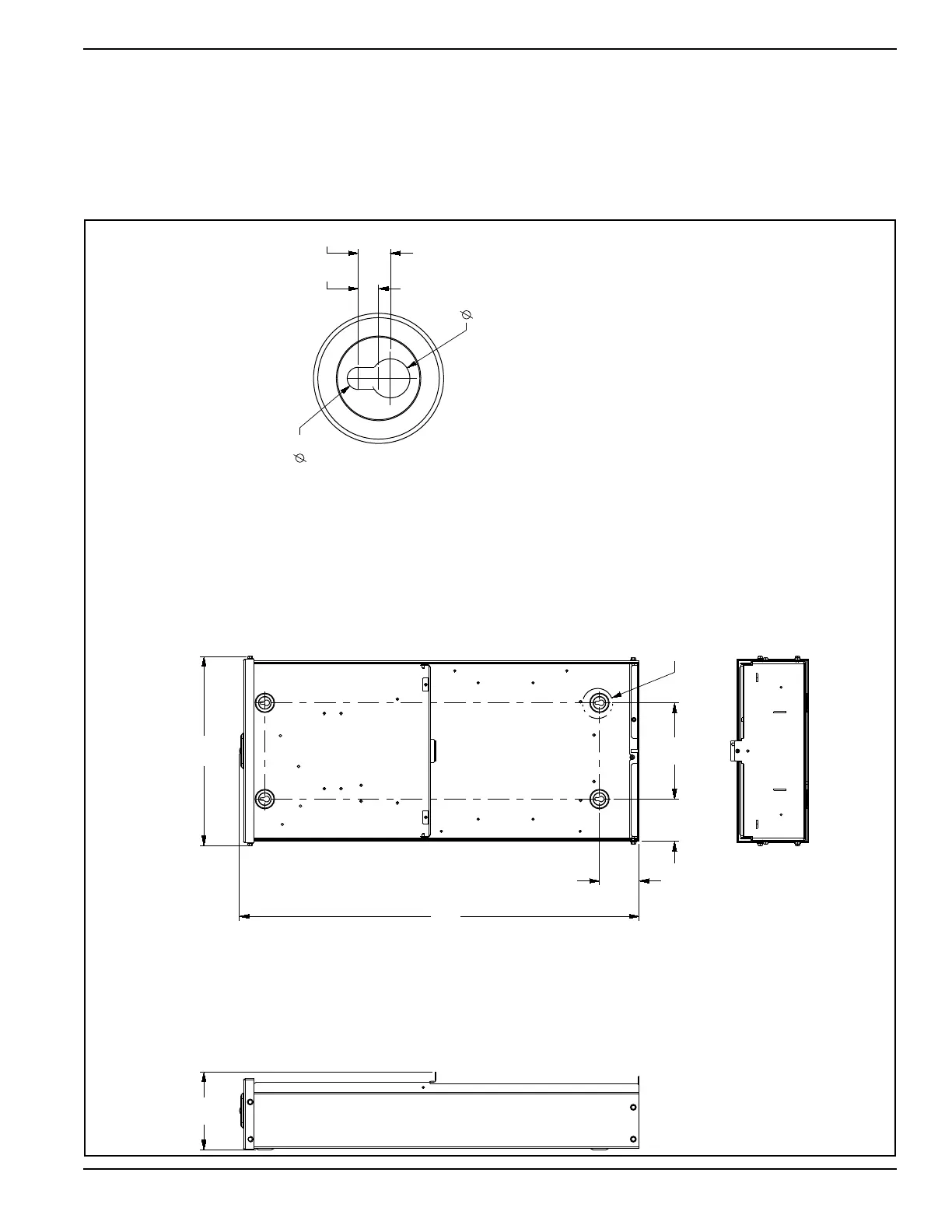

No. A0000258227-A: 150-200A SER METER MAIN
452 [17.8]
956 [37.6]
95 [3.7]
101 [4.0]
230 [9.1]
14 [.6]
12 [.5]
7 [.3]
8 [.3]
186 [7.3]
SEE DETAIL A
DETAIL A
SCALE 1.000
