Generac Power Systems XT8000E Series User Manual

8 Generador portátil Serie XT8000E

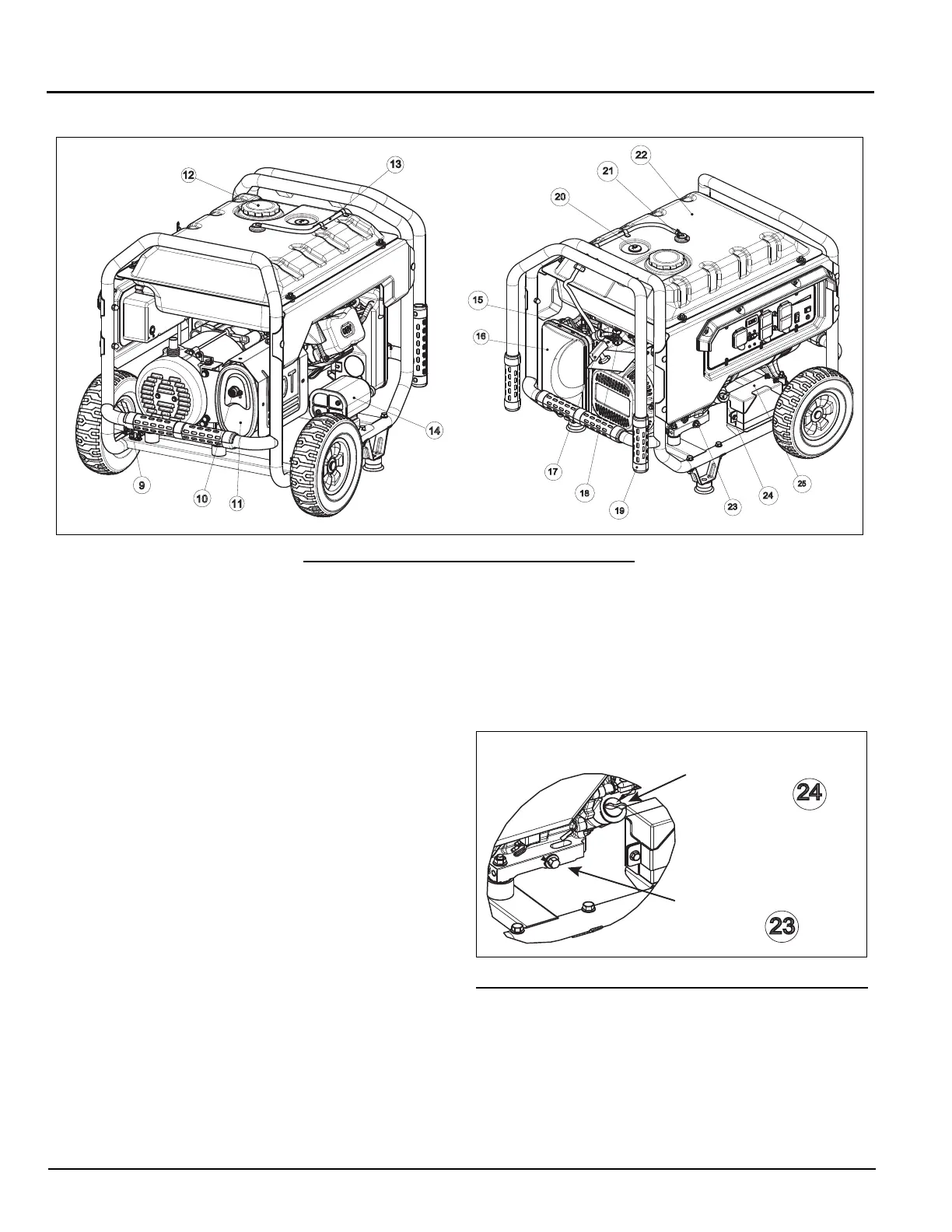

Figura 2-6. Controles del generador
9. Ubicación de la conexión a tierra – Conecte aquí
el generador a una conexión a tierra aprobada. Vea
los detalles en “Conexión a tierra del generador”.
10. Supresor de chispas – Reduce el peligro de
incendio conteniendo las chispas. (Modelos CARB
para California únicamente).
11. Silenciador – Reduce el ruido del motor.
12. Tapa de combustible – Retire para llenar el tanque
de combustible.
13. Manguera de recuperación – Tubo de vapor entre
la válvula de inversión y el motor.
14. Cartucho de carbón – Modelos CARB para
California únicamente.
15. Palanca del cebador – Se usa para arrancar un
motor frío.
16. Filtro de aire – Filtra el aire de admisión a medida
que ingresa en el motor.
17. Arrancador con cuerda – Se usa para arrancar el
motor manualmente.
18. Válvula de combustible – Activa y desactiva el
suministro de combustible.
19. Manija – Se usa para transportar el generador.
20. Medidor de combustible – Muestra el nivel de
combustible del tanque.
21. Válvula de inversión – Permite el paso de
combustible al motor.
22. Tanque de combustible – Contiene el suministro de
aceite.
23. Válvula de vaciado de aceite – Tapón de vaciado
para retirar el aceite usado del cárter del motor.
24. Llenado de aceite/varilla de medición –
Compruebe el nivel de aceite y añada aceite aquí.
25. Batería – Proporciona alimentación para el
arrancador eléctrico.
Figura 2-7. Vaciado/llenado de aceite
9
11
12
13
10
14
17
16
15
18
23
24
25
20
21
22
19
ABERTURA VARILLA DE
M
TAPÓN DE VACIADO
DE ACEITE
ABERTURA VARILLA DE MEDICIÓN/LLENADO
24
23
