PARTS

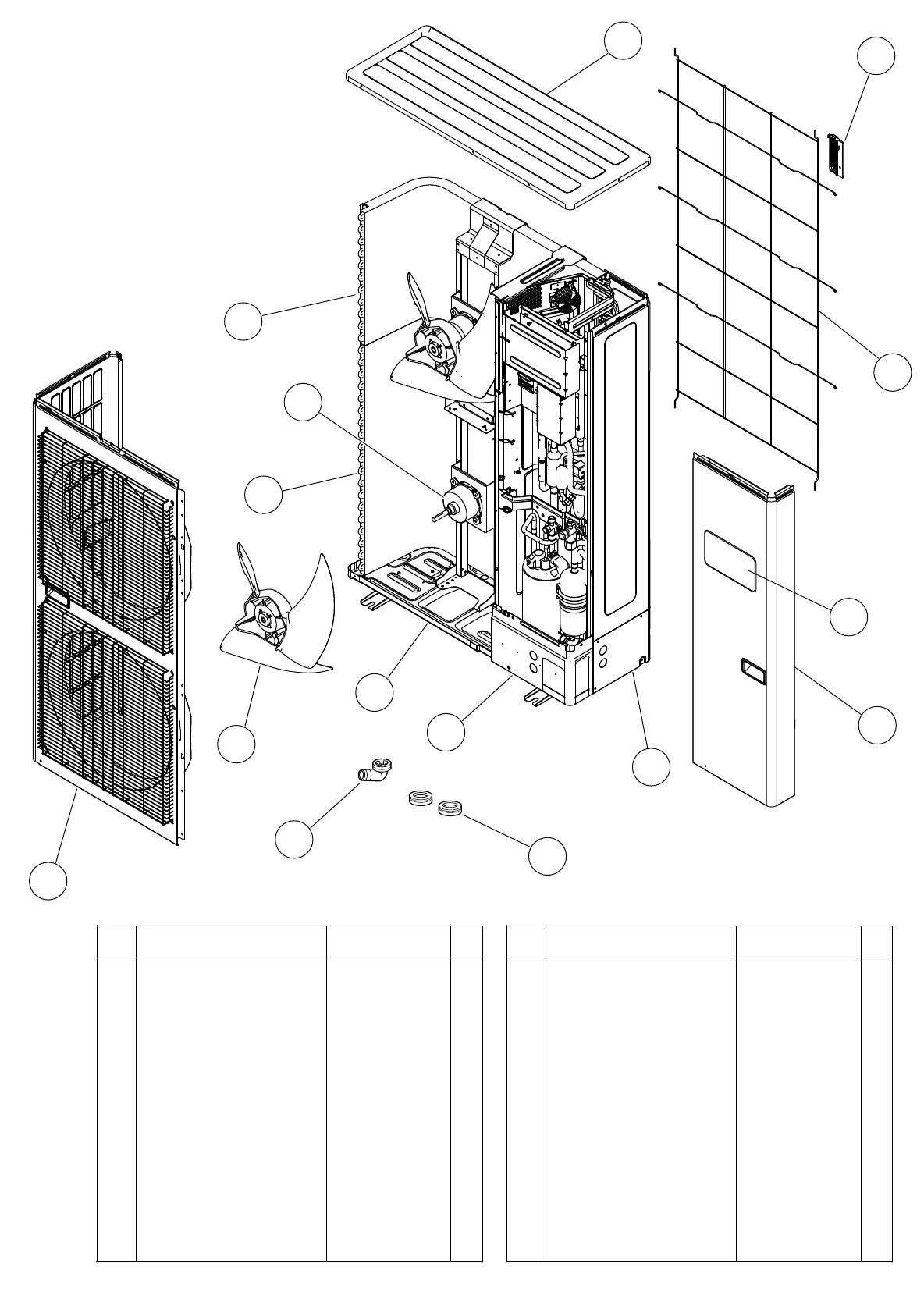

OUTDOOR UNIT
2013.02.18 26
1 Top Panel Sub Assy 9374417056
6 Right Panel Sub Assy 9374416189
7 Protective Net 9375381042
8 Thermo Holder 9375211011
4 Emblem Rear 9372171059
5 Pipe Cover Front 9378861015
3 Sevice Panel Sub Assy 9374415090
2 Front Panel Sub Assy 9374414109
Ref. Description Parts number
15 Drain Cap 313166024302
14 Drain Assy 9303029015
10
Ref. Description Parts number
9
11
12
13
Propeller Fan Assy
Motor DC Brushless
Condenser A Sub Assy
Condenser B Sub Assy
Base Assy
9366378020
9602843039
9374420261
9374422081
9374166220
1
3
15
2
10
13
12
11
4
9
7
8
6
5
14
To Next Page
