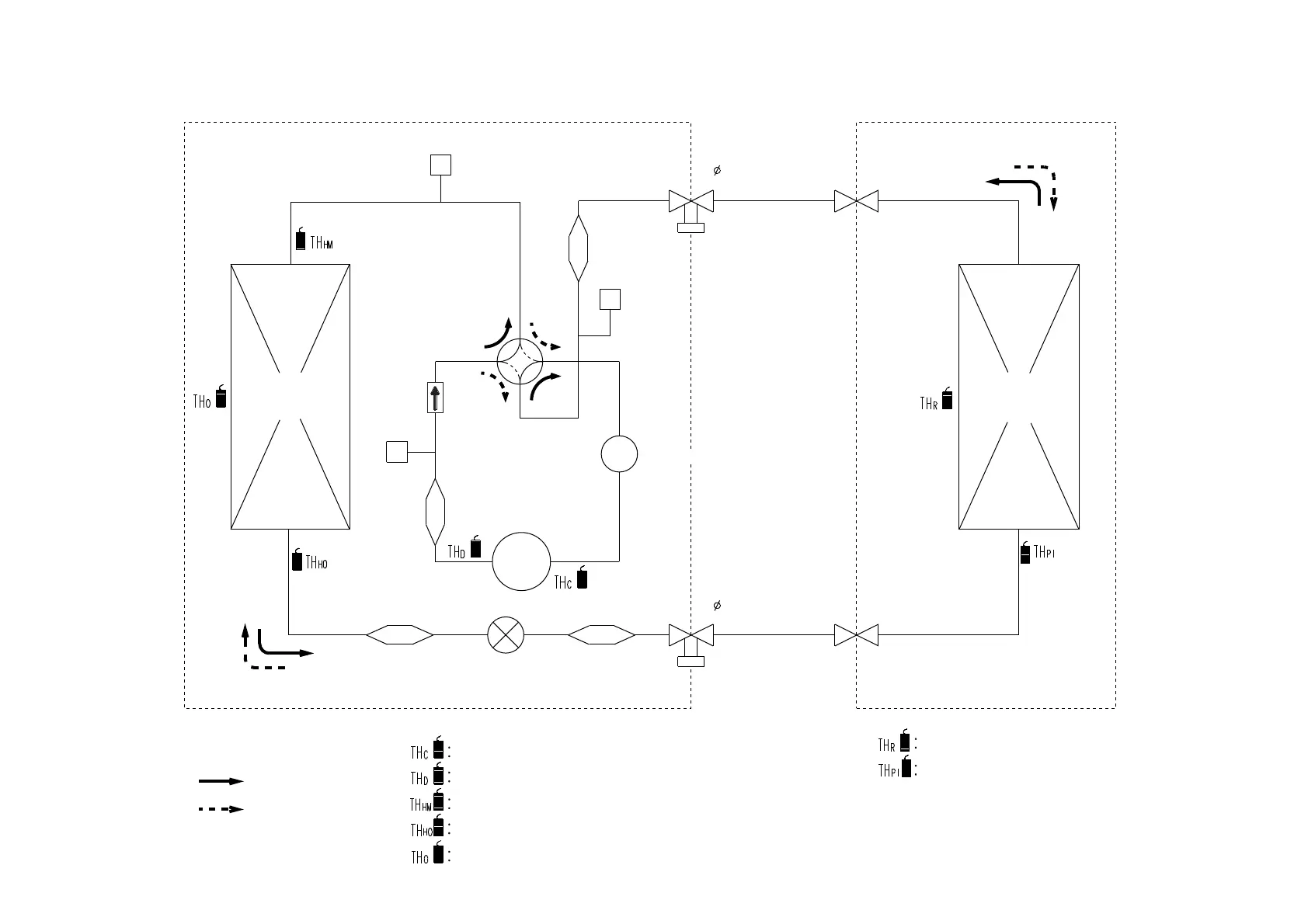

REFRIGERANT SYSTEM DIAGRAM
2013.02.15
Thermistor (Compressor)
Compressor
4-way
Valve
Pressure
Check Valve
Pressure
Sensor
Muffler
Check
Valve
Strainer Strainer
Expansion
Valve
Muffler
3-way Valve
3-way Valve
Accumulator
High Pressure
Switch
Refrigerant Pipe
9.52mm (3/8")
Refrigerant Pipe
15.88mm (5/8")
Thermistor (Discharge)
Thermistor (Room)
Heat
Exchanger
Heat
Exchanger
Thermistor (Pipe)
Thermistor (Heat Exchanger Med)
Thermistor (Heat Exchanger Out)
Thermistor (Outdoor)
Cool
Refrigerant direction
Heat
3
OUTDOOR UNIT INDOOR UNIT
