Genesis 1.2 User Manual

Ver 1.0
12
~ÄëçäìíÉ=ÑáÇÉäáíó
the Servo-Bass Amplifier to drive the woofers.
Six pairs of jumpers are supplied to connect the crossover box to the
midrange/tweeter wings. These jumpers are made using the same
internal wire connecting the drivers of the G1.2 and are supplied with
high quality banana plugs. When the supplied jumpers are used,
remove completely the nut on the binding posts. The sound will
improve with the removal of the unnecessary metal. Keep the nuts
safely in case you will be using spades for termination in the future.
The crossovers can be specified to be supplied in three electrically
separated parts so that the G1.2 can be tri-amplified (or bi-amplified)
with identical amplifiers. Do NOT use a low-powered SET amplifier for
the tweeters, and a high-powered solid-state amplifier for the
midrange. You will ruin the spectral and phase coherency of the G1.2.
2 Operating your G1.2
Once you have successfully connected all the parts of the system –
the various interconnects in the Servo-Bass system, the speaker
cables to the crossover boxes, the jumpers from the
crossover to the midrange/tweeter wings, and the power
umbilicals from the power transformers to the amplifier
modules – then plug in the Control Module power cord into
the wall power outlet. Next, plug in each of the Power
Transformers into the wall outlet. And you are now ready to
begin.
2.1 Servo-Bass Amplifier Remote

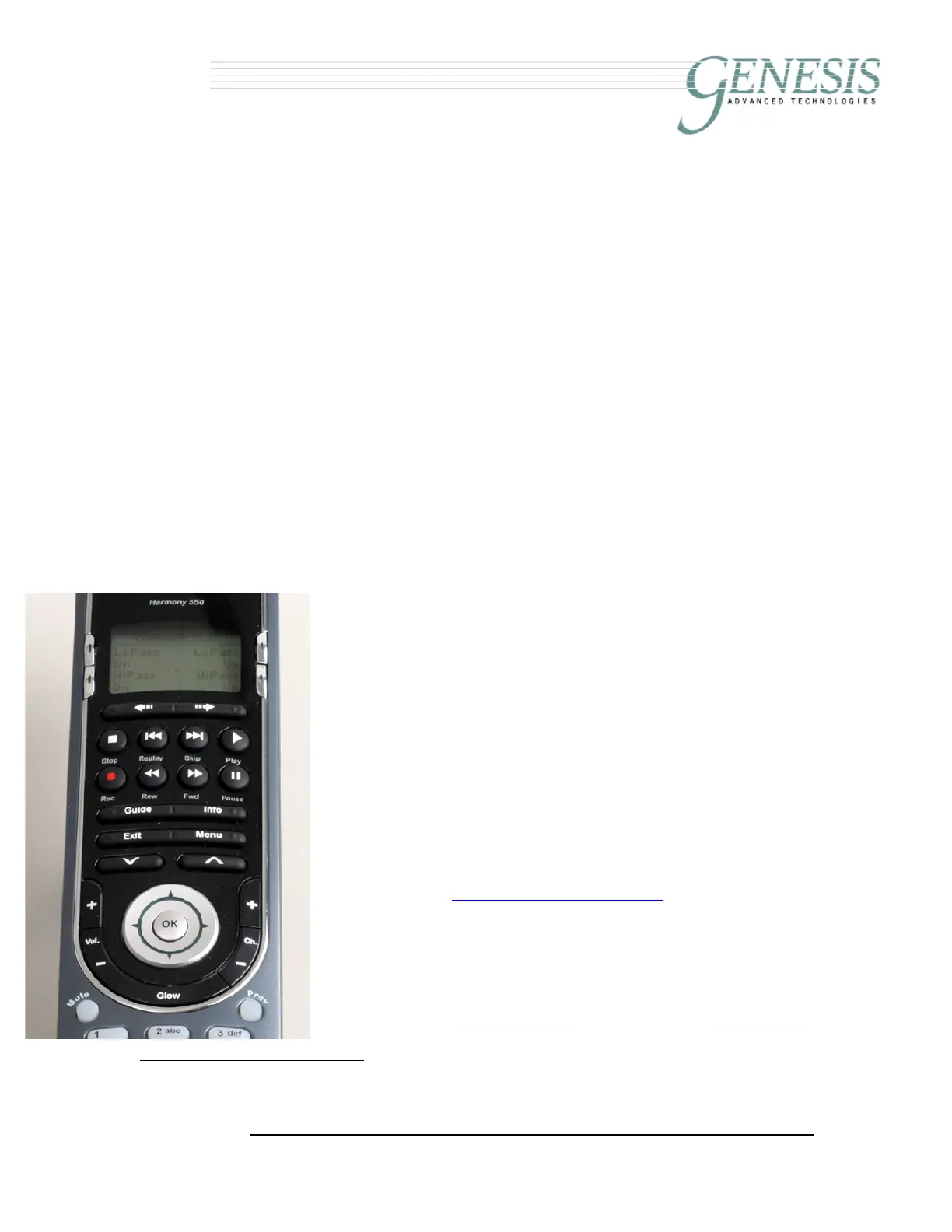

Your Genesis 1.2 servo-bass amplifier system is supplied
with a Logitech Harmony™ remote control. This is a
universal remote control that can also be programmed to
control the rest of your music system. While we do not
provide customer support for the programmable functions
(please check www.harmonyremote.com
for that) we
supply it pre-programmed with the correct codes to control
the Genesis servo-bass amplifier.
To do this, we have created an online profile
#
for you to use.
Your UserID is RrrrrrrrrXxxxxx and Password is Genesis12
#
If you have managed to let us know ahead of time what the rest of your system is, it
might even be possible for us to pre-program the remote for you.

Genesis 1.2 Specifications

Audio Specifications

frequency response	16Hz to 36kHz, +/- 1dB
sensitivity	91 dB 1 watt 1 meter
input impedance	4 ohms (nominal)
bass amplifier power rating	Six channels per side @400 watts each

Transducers

HF transducers	26 Genesis 1” Circular Ribbon Tweeters (20 front, 6 rear)
midrange transducer	Single 75” Ribbon
LF transducers	Twelve Genesis 12” woofers with ribbed aluminum cones

Weight and Dimensions

weight per side	approx.1, 000 lbs (450kg)
mid/tweeter wing dimensions	H 90” x W 41.5” x D 5” each
woofer tower dimensions	H 90” x W 15.5” x D 19” each
