Bulk Ink Cartridge Installation
1. Install the bulk ink cartridge into the cartridge mount on
the left side of the plotter. Push the cartridge until it
latches.

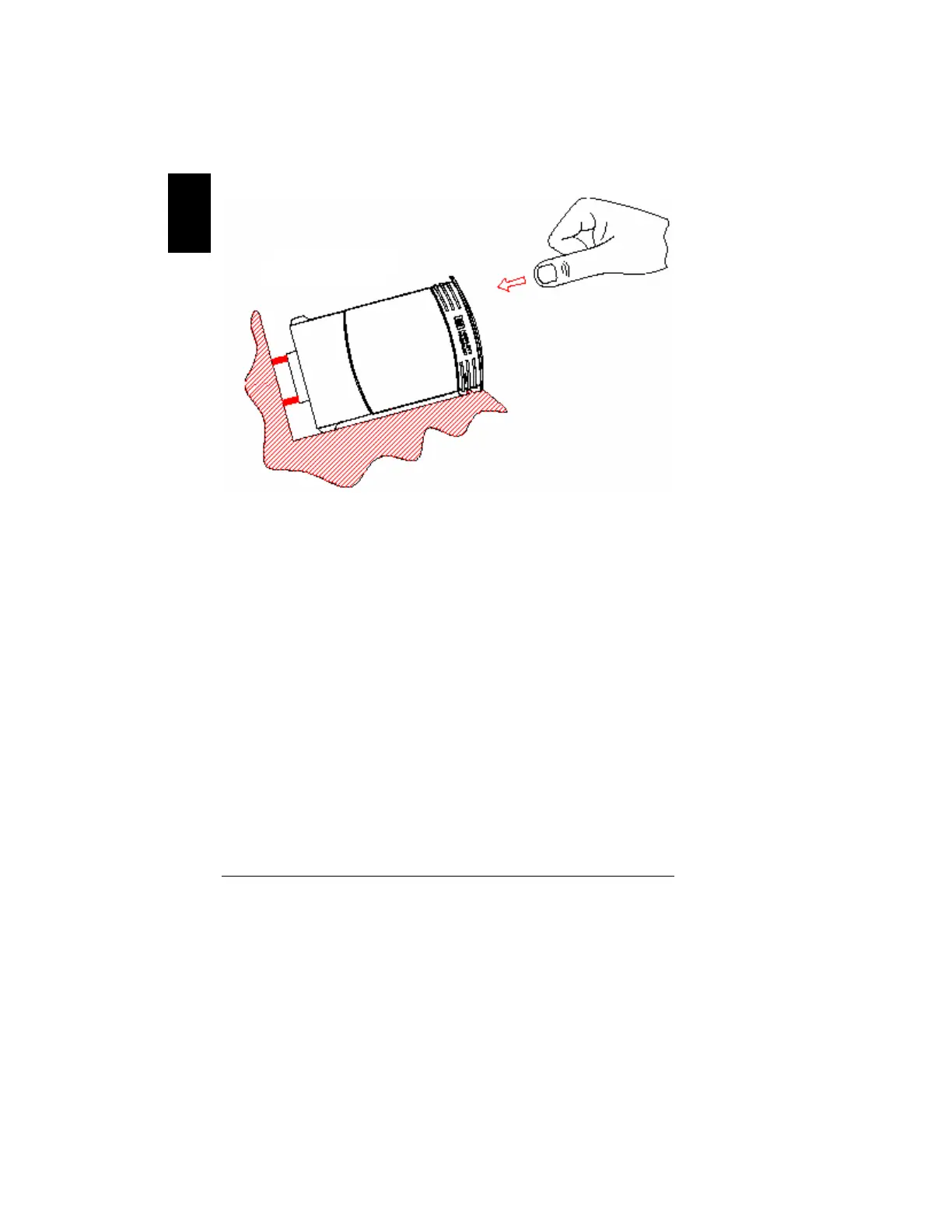

Figure 11. Installing the Bulk Ink Cartridge
WARNING! De-energize the bulk ink system
by pushing the Access Pens
button on the Infinity control
panel before removing the bulk
ink cartridge. Failure to comply
could result in the accidental
discharge of ink from the bulk
cartridge.
Powering Up the Plotter
1. Turn the plotter On.
2. Wait 30 seconds for the initialization process and
observe that:
• LEDs flash (internal diagnostics run)
• Power LED stays on (indicates power is on)
• Homing and purging routines run (head moves
back and forth)
