8. Check the tubing for air bubbles that become visible only
after the ink has settled. If a 1 inch or longer bubble of air
is visible, prime the system again.
Note: Some air in the pressure regulator output
tubing is normal.
9. Push the CPC connector back into the u-bracket on the
side of the print cartridge. Do this for both print head
cartridges.
Print Head Cartridge Installation
1. Push the Access Pens button on the Infinity control panel
to put the plotter offline and to de-pressurize the bulk ink
cartridge.
2. Open the new print head cartridges and prepare them for
use by removing the tape from the cartridge foot.

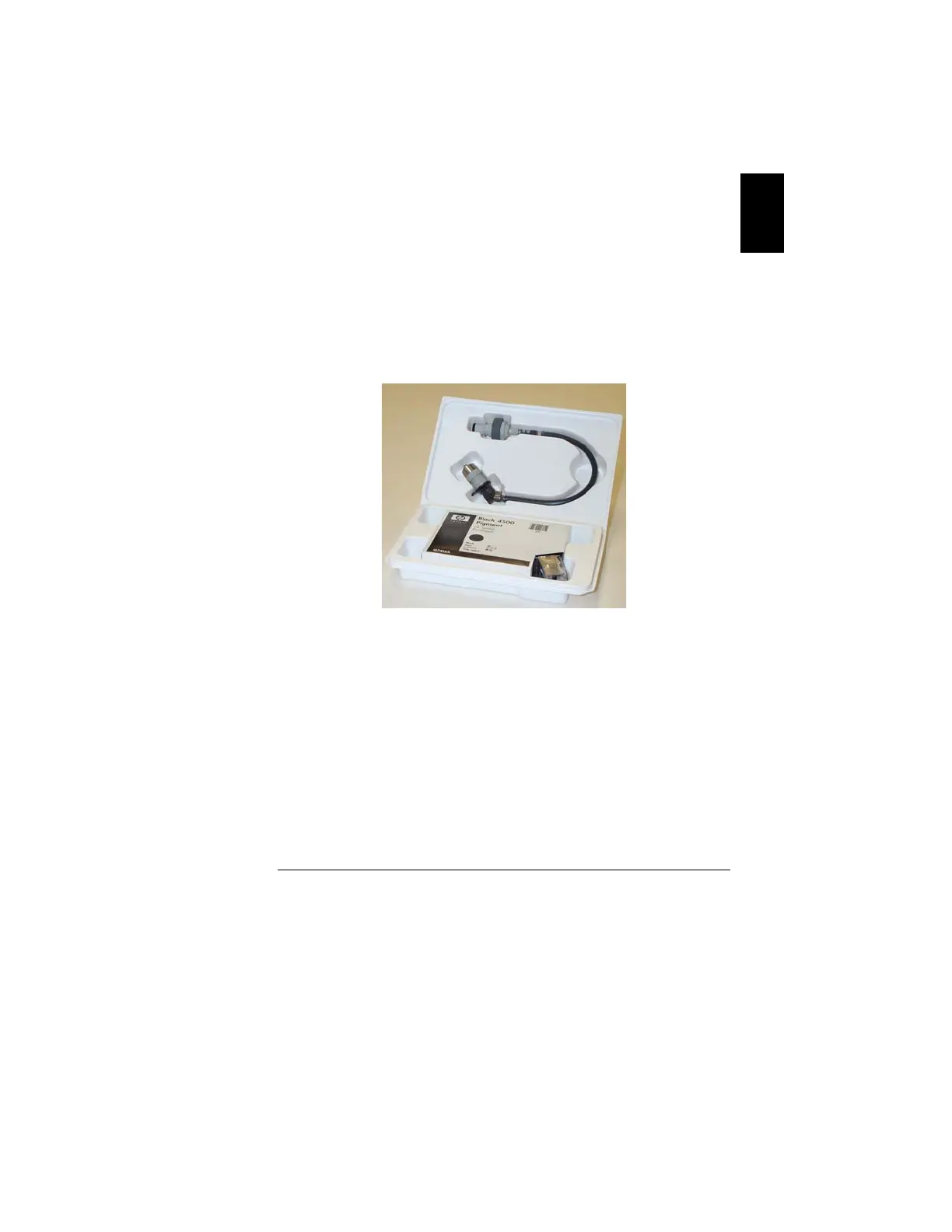

Figure 19. Infinity Print Head Cartridge and Tube Assembly
3. Install the print cartridge interconnect valve end of a print
head cartridge tube to the print head cartridge. Repeat
this procedure for the remaining print head cartridge.
Note: The print head and tube are shipped loaded
with ink so these components do not need to be primed.
