Gerber Technology MP+ Series User Manual
5
of 1
of 1 rating
91 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
MP+
UPGR
ADE K
IT
MP
MP+
00:00
S
W
00:00
00:00
78

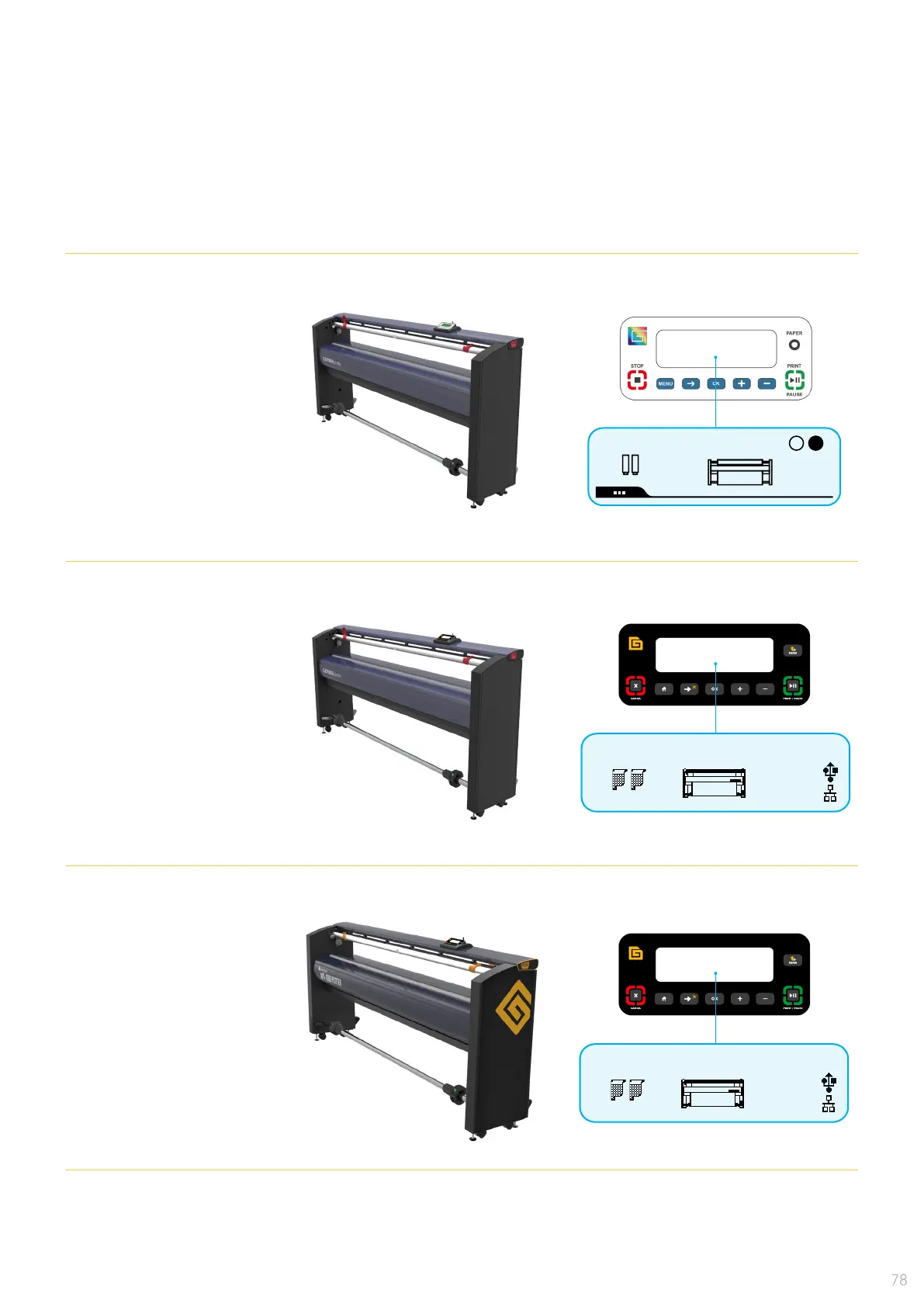

WHICH TYPE OF PLOTTER DO YOU HA
VE?
Depending on the type, you'll need to follow
differ
ent steps.
Please check befor
e
r
emoving old materboard.
77
79
Table of Contents
Table of Contents
3
Technic Mode
4
Introduction to Printing
5
Introduction to Printing
6
Calibration
8
Calibration
9
Print Data Flow
13
Print Data Flow
14
Schematics
15
Schematics
16
Troubleshootings
20
Plotter Firmware
21
Plotter Movement Alerts
31
Software Errors on Printing
37
Plotter Sensors
42
Cartridge Not Detected 4PH
51
Printing Quality
55
Mechanical Issues
58
Preventive Mainteance
60
Preventive Maintenance
61
Smart Check List
62
Parts Life Cycle
66
Service Notes
67
FFC Flat Flexible Cable - REPLACEMENT
68
Keyboard Membrane - REPLACEMENT
70
Encoder Strip - REPLACEMENT
73
Carriage Electronic Board - REPLACEMENT
75
Master Board REPLACEMENT & FIRMWARE INSTALLATION
77
5
Based on 1 rating
