Quick Installation Guide
24

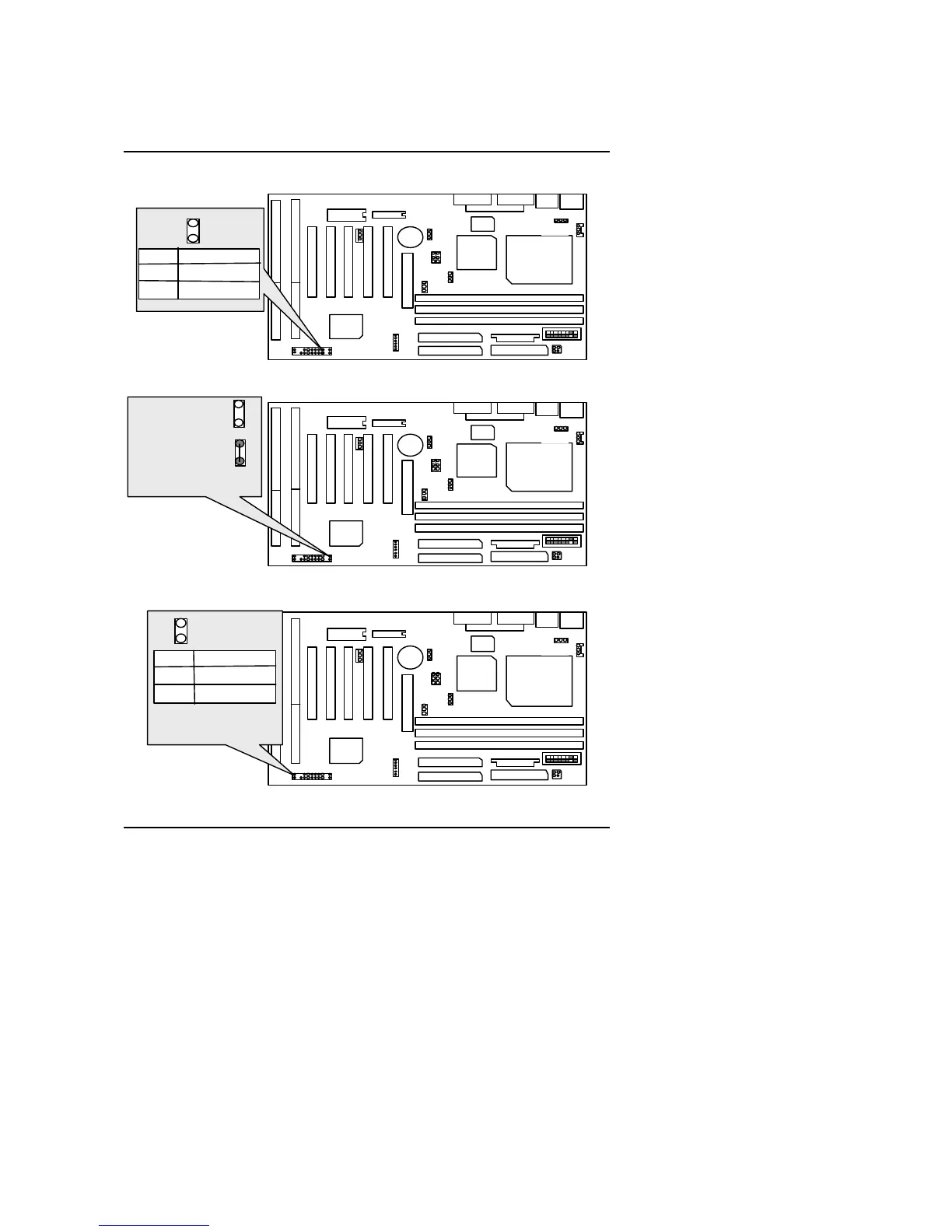

HD : IDE Hard Disk Active LED
CPU
1
M1541
M1543
5AX
1
Pin No.
Function
1
2
LED anode (+)
LED cathode (-)
GN : Green Function Switch
CPU
1
M1541
M1543
5AX
Close one time:
For system entering Green
mode
Open :
Normal operation.
GD : Green LED
CPU
1
M1541
M1543
5AX
1
Pin No.
Function
1
2
LED anode (+)
LED cathode (-)
25
27
