Quick Installation Guide
26

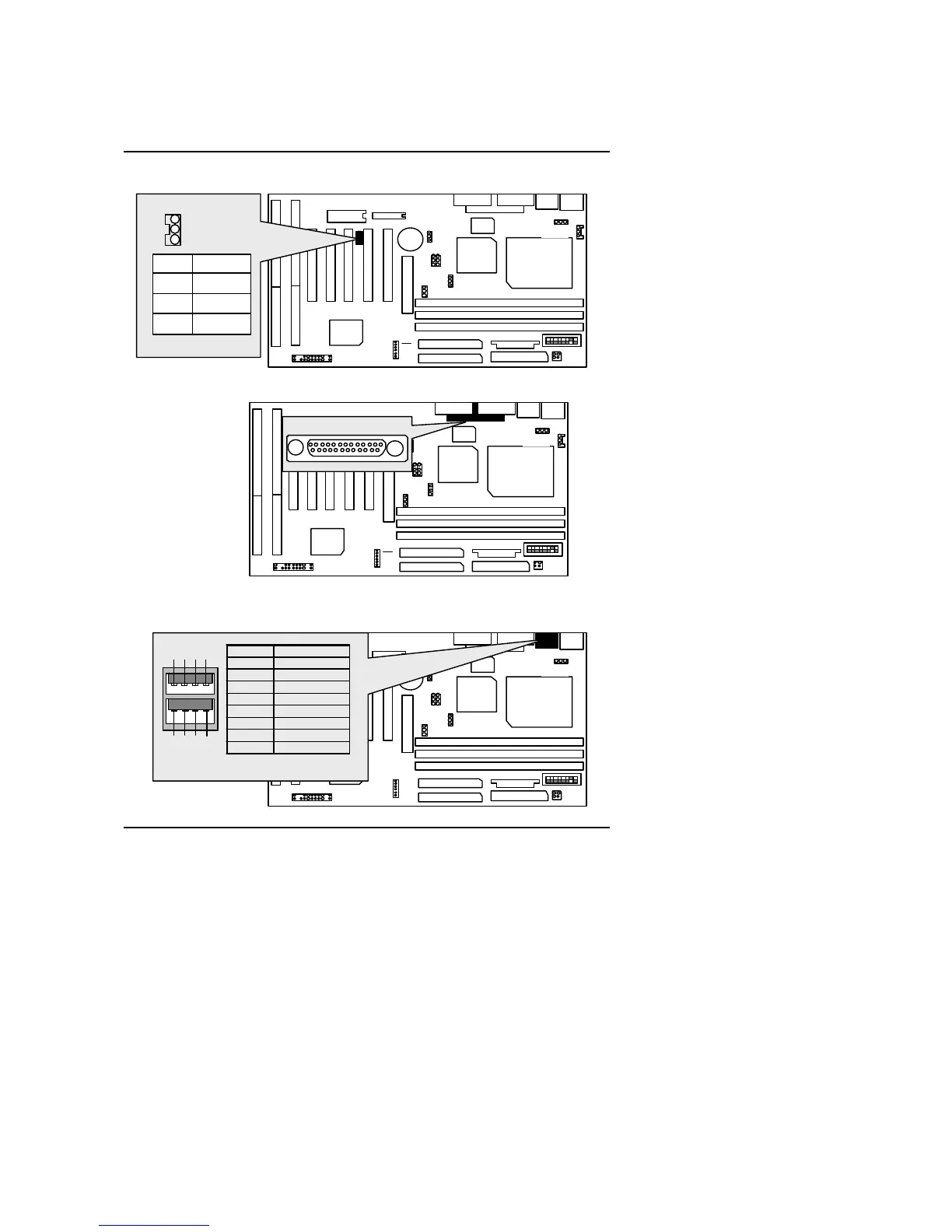

JP5: Wake On Lan
CPU
1
M1541
M1543
5AX
1
1
Pin No.
Function
+5V SB
GND
Signal
3
2
1
LPT : LPT Port
CPU
1
M1541
M1543
5AX
LPT PORT
USB: USB Port
CPU
1
M1541
M1543
5AX
1
2
3
4
8
7
6
5
PIN No.
Function
1
USB V0
2
USB D0-
3
USB D0+
4
GND
5
USB V1
6
USB D1-
7
USB D1+
8
GND
27
