1-7 Internal Connectors

Read the following guidelines before connecting external devices:

• First make sure your devices are compliant with the connectors you wish to connect.

• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

• After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

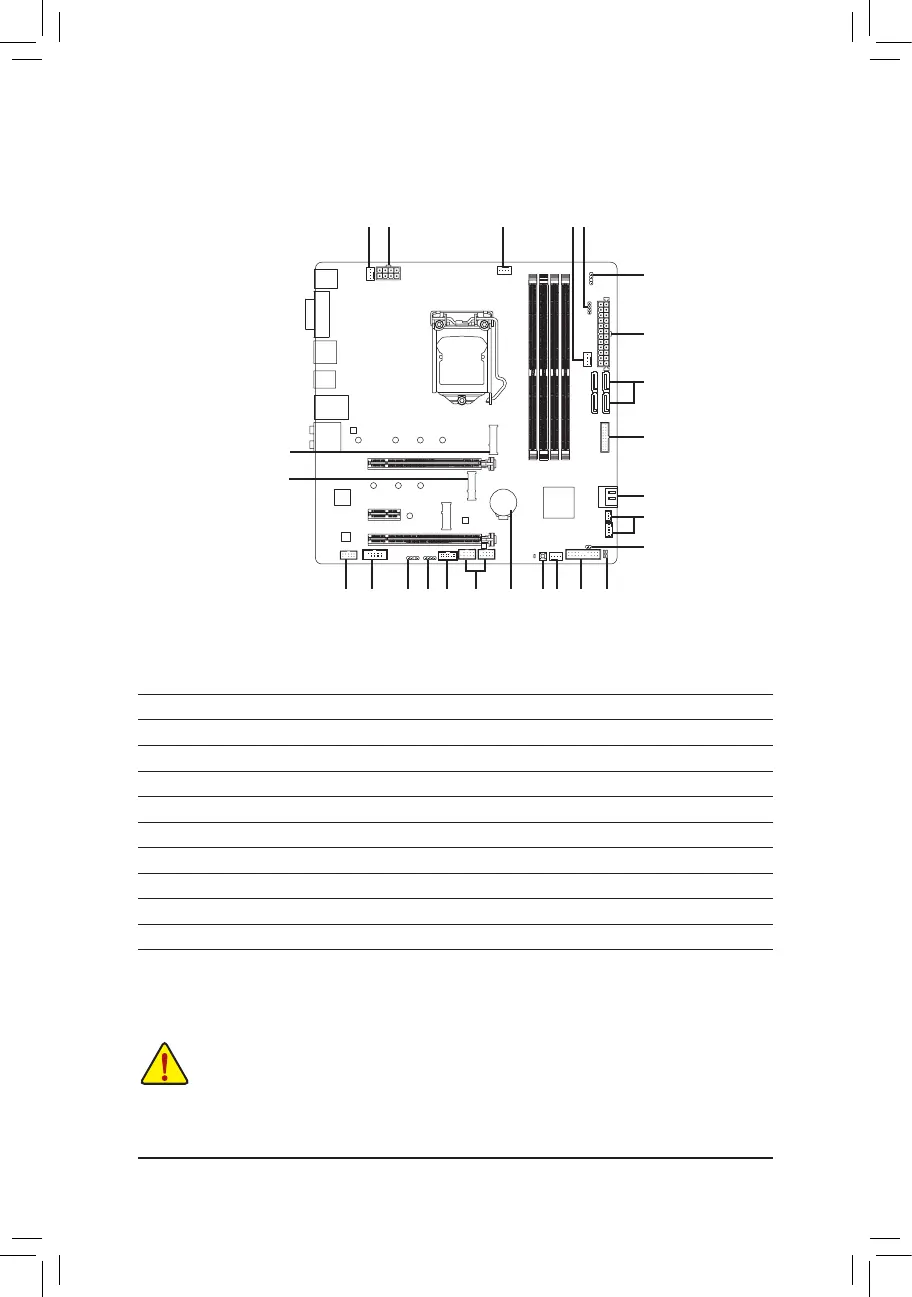

10 181917

159 14

5 6

12 4

3 64

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN1/2/3

5) D_LED1/D_LED2

6) LED_C1/LED_C2

7) SATA3 0/1/2/3/4/5

8) M2Q_SB/M2A_SB

9) F_AUDIO

10) F_ PANEL

11) F_U32

12) F_USB1/F_USB2

13) THB_C/THB_C1

14) COM

15) SPI_TPM

16) CLR_CMOS

17) BAT

18) CPU/DRAM/VGA/BOOT

19) QFLASH_PLUS
