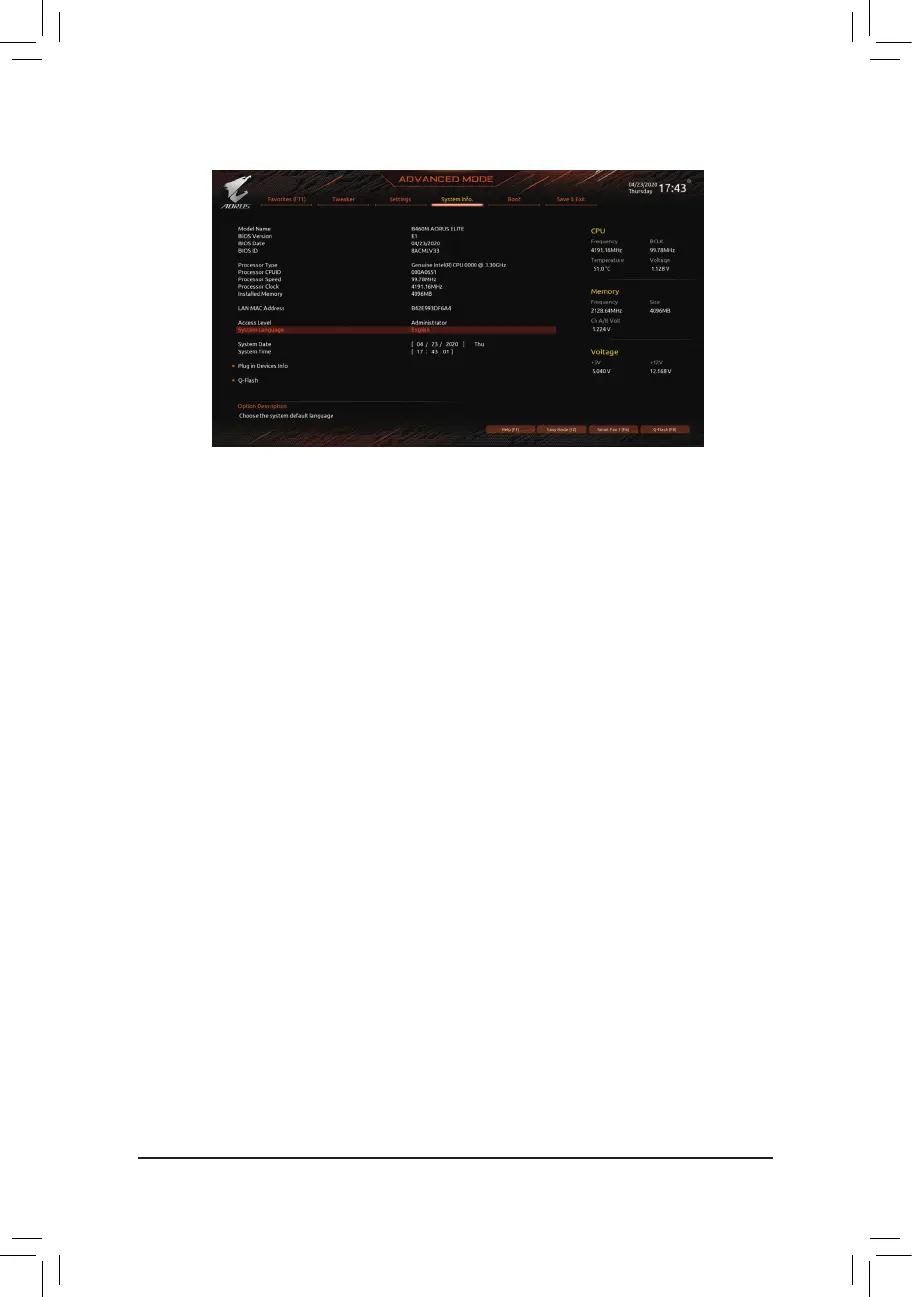

2-6 System Info.
This section provides information on your motherboard model and BIOS version. You can also select the default
language used by the BIOS and manually set the system time.
& Access Level
Displays the current access level depending on the type of password protection used. (If no password is
set, the default will display as Administrator.) The Administrator level allows you to make changes to all
BIOS settings; the User level only allows you to make changes to certain BIOS settings but not all.
& System Language
Selects the default language used by the BIOS.
& System Date
Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch
betweentheMonth,Date,andYeareldsandusethe<PageUp>or<PageDown>keytosetthedesired
value.
& System Time
Sets the system time. The time format is hour, minute, and second. For example, 1 p.m. is 13:00:00. Use
<Enter>toswitchbetweentheHour,Minute,andSecondeldsandusethe<PageUp>or<PageDown>
key to set the desired value.
 Plug in Devices Info
Displays information on your PCI Express and M.2 devices if installed.
 Q-Flash
 AllowsyoutoaccesstheQ-FlashutilitytoupdatetheBIOSorbackupthecurrentBIOSconguration.
- 37 -

Gigabyte B460M AORUS ELITE Specifications

General

Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460 Express
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x1 slots	1
PCI Express x16 slots	2
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported

Weight and Dimensions

Width	244 mm
