Gigabyte B460M AORUS ELITE User Manual

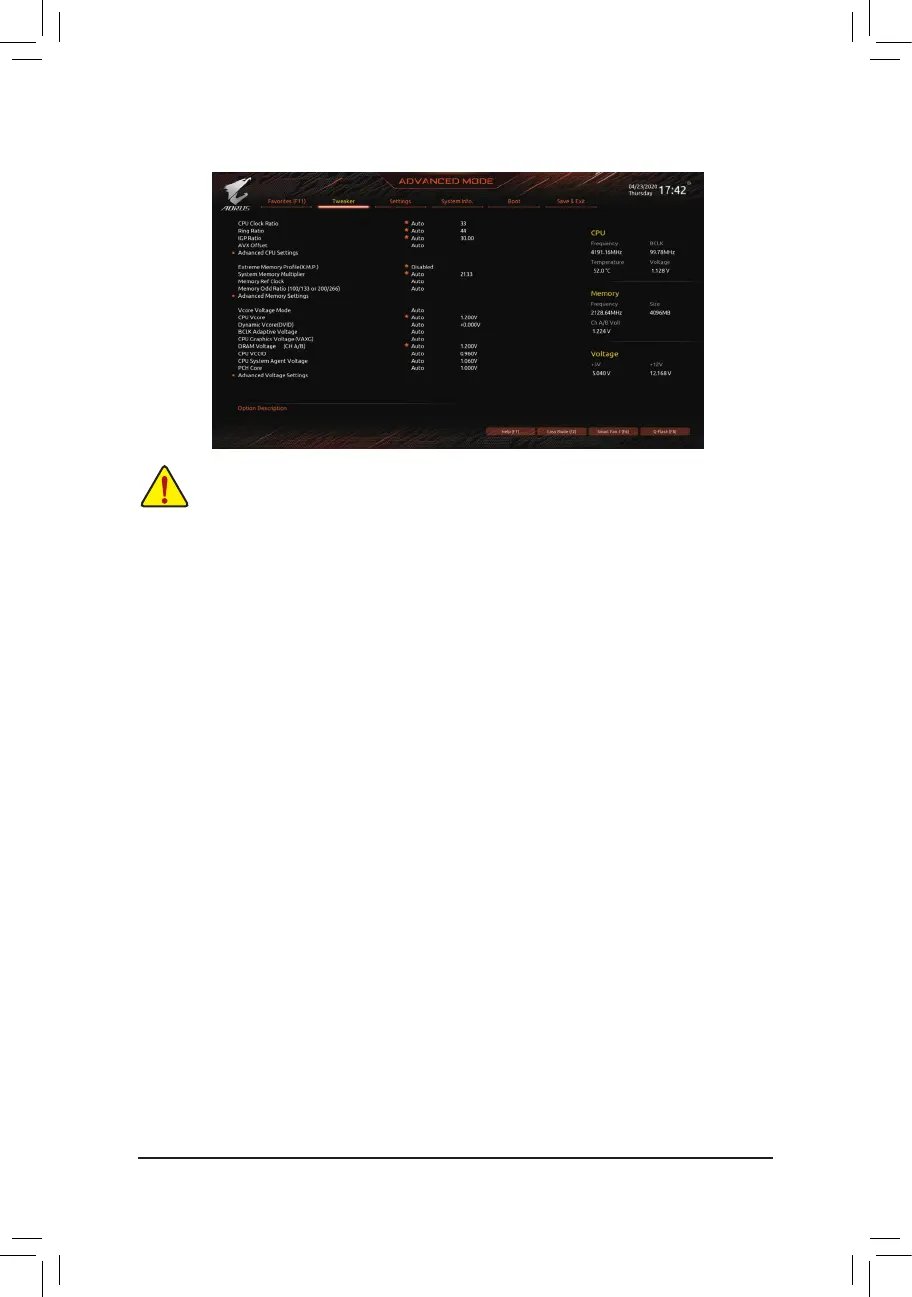

2-4 Tweaker
Whether the system will work stably with the overclock/overvoltage settings you made is dependent
onyouroverallsystemcongurations.Incorrectlydoingoverclock/overvoltagemayresultindamage
to CPU, chipset, or memory and reduce the useful life of these components. This page is for advanced
users only and we recommend you not to alter the default settings to prevent system instability or
other unexpected results. (Inadequately altering the settings may result in system's failure to boot. If
this occurs, clear the CMOS values and reset the board to default values.)
& CPU Clock Ratio
Allows you to alter the clock ratio for the installed CPU. The adjustable range is dependent on the CPU
being installed.
& Ring Ratio
Allows you to set the CPU Uncore ratio. The adjustable range is dependent on the CPU being used. (Default:
Auto)
& IGP Ratio
(Note)
Allows you to set the Graphics Ratio. (Default: Auto)
& AVX Offset
(Note)
AVX offset is the negative offset of AVX ratio.
 Advanced CPU Settings
& CPU Over Temperature Protection
(Note)
 Allowsyoutone-tunetheTJMaxoffsetvalue.(Default:Auto)
& FCLK Frequency for Early Power On
Allows you to set the FCLK frequency. Options are: Normal(800Mhz), 1GHz, 400MHz. (Default: 1GHz)
& Hyper-Threading Technology
Allows you to determine whether to enable multi-threading technology when using an Intel
®
CPU that
supports this function. This feature only works for operating systems that support multi-processor mode.
AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
& No. of CPU Cores Enabled
Allows you to select the number of CPU cores to enable in an Intel
®
multi-core CPU (the number of CPU
cores may vary by CPU). AutoletstheBIOSautomaticallycongurethissetting.(Default:Auto)
(Note) This item is present only when you install a CPU that supports this feature. For more information about
Intel
®
CPUs' unique features, please visit Intel's website.
- 26 -

Gigabyte B460M AORUS ELITE Specifications

General

Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460 Express
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2933 MHz
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
PCI Express x1 slots	1
PCI Express x16 slots	2
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
HDMI version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported

Weight and Dimensions

Width	244 mm
