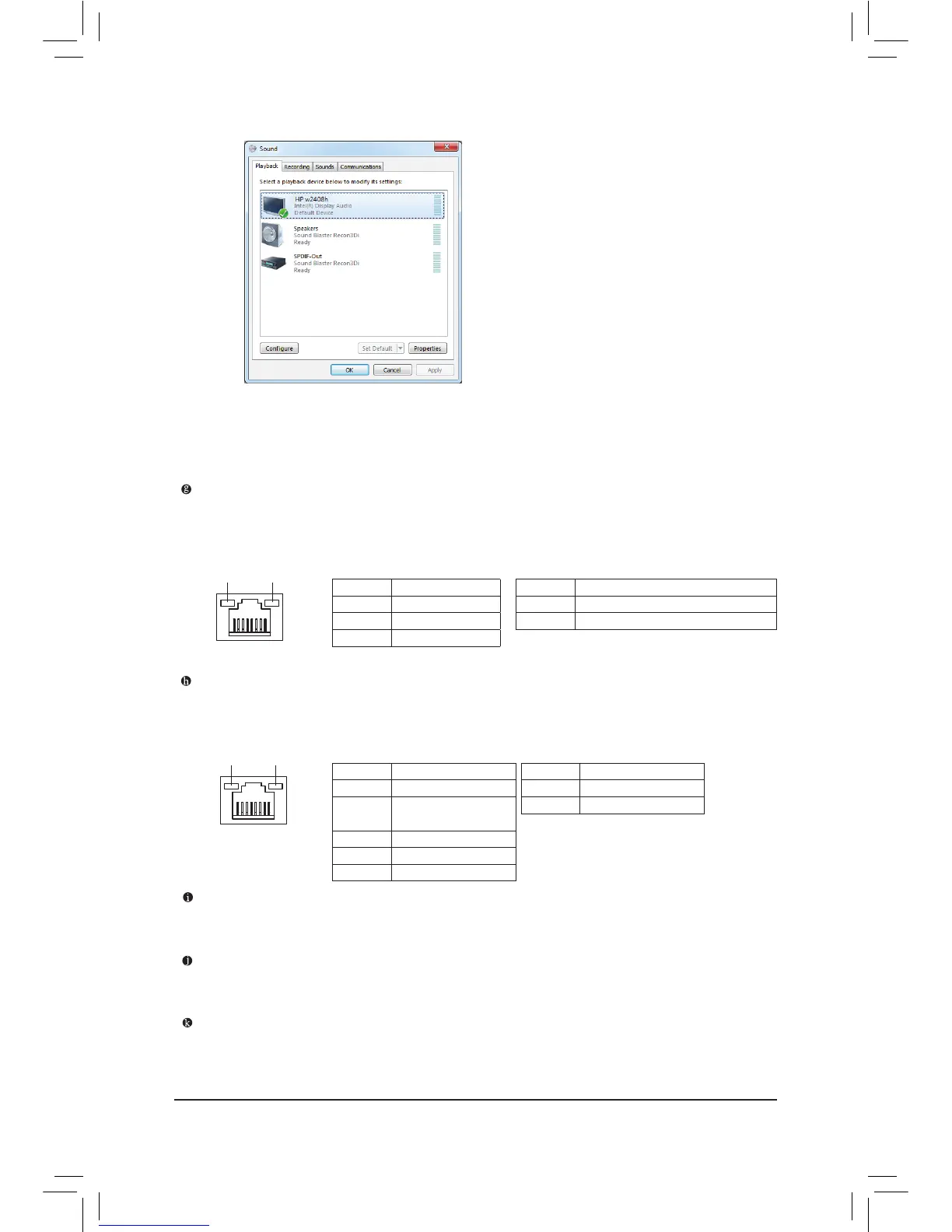

- 22 -Hardware Installation
In Windows 7, select Start>Control Panel>Hardware and
Sound>Sound>Playback, set Intel(R) Display Audio to the
default playback device.
Dual Display Congurations for the Onboard Graphics:
This motherboard provides four video output ports: D-Sub, DVI-D, HDMI, and DisplayPort. Dual monitor
confgurations are supported in operating system environment only, but not during the BIOS Setup or POST
process.
RJ-45 LAN Port (LAN2)
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Activity LED
Connection/
Speed LED
LAN Port
Connection/Speed LED:
State Description
Orange 1 Gbps data rate
Green 100 Mbps data rate
Off 10 Mbps data rate
RJ-45 LAN Port (LAN1)
The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following
describes the states of the LAN port LEDs.
Speed/Activity LED
Link LED
LAN Port
Link LED:Speed/Activity LED:
State Description
Orange 10 Mbps data rate
Green +
Orange
100 Mbps data rate
Green 1 Gbps data rate
Blinking Network activity
Off No connection
State Description
On Linked properly
Off No link
Line In/Mic In Jack (Pink)
The line in/Mic in jack. Use this audio jack for line in devices such as optical drive, walkman, microphone,
etc.
Line Out (Light Green)
The default line out jack. Use this audio jack for a 2-channel speaker. This jack can be used to connect
front speakers in a 5.1-channel audio conguration.
Optical S/PDIF Out Connector
This connector provides digital audio out to an external audio system that supports digital optical audio.
Before using this feature, ensure that your audio system provides an optical digital audio in connector.
Activity LED:
State Description
Blinking Data transmission or receiving is occurring
On No data transmission or receiving is occurring

Gigabyte G1.Sniper 3 Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	2
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
Headphone outputs	5
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Creative CA0132
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	-
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	XL-ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way SLI, 3-Way SLI, 4-Way SLI, Hybrid CrossFireX
PCI Express slots version	3.0
Controller interface type	Intel Z77
Controller 2nd interface type	2 x Marvell 88SE9172
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	4.0
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	264 mm
Width	305 mm
