System Hardware Installation - 36 -
3-6 Installing a PCI Express Card
• Voltages can be present within the server whenever an AC power source is connected. This
voltage is present even when the main power switch is in the off position. Ensure that the system
is powered-down and all power sources have been disconnected from the server prior to installing
a PCI card.
Failure to observe these warnings could result in personal injury or damage to equipment.
Follow these instructions to install a PCI Express x8 card on right side of the
system:
1. Loosen and remove the two screws securing the PCI Express card bracket on the right side of the
system.
2. Remove the PCI Express card bracket from the system.
3. Install the PCI Express card into the bracket.
4. Secure the PCI Express card to the bracket with one screw.

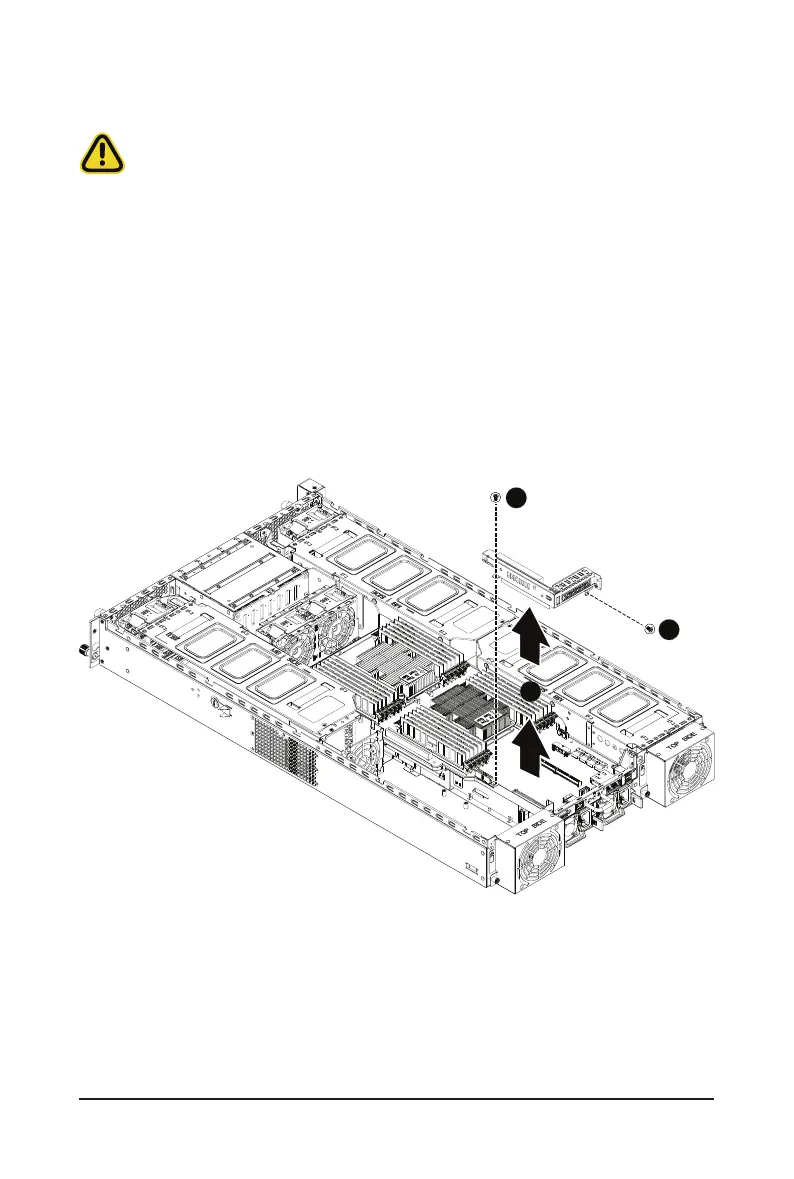

5. Install the PCI Express card bracket with card back into the system, ensure that the connector on
the bracket is securely installed into the connector on the motherboard as shown.
6. Secure the PCI Express card bracket with card to the system with two (2) screws.
