Gigabyte GA-78LMT-S2P User Manual

- 13 -
1-7 Internal Connectors
Read the following guidelines before connecting external devices:
First make sure your devices are compliant with the connectors you wish to connect. •
Before installing the devices, be sure to turn off the devices and your computer. Unplug the •
power cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has •
been securely attached to the connector on the motherboard.

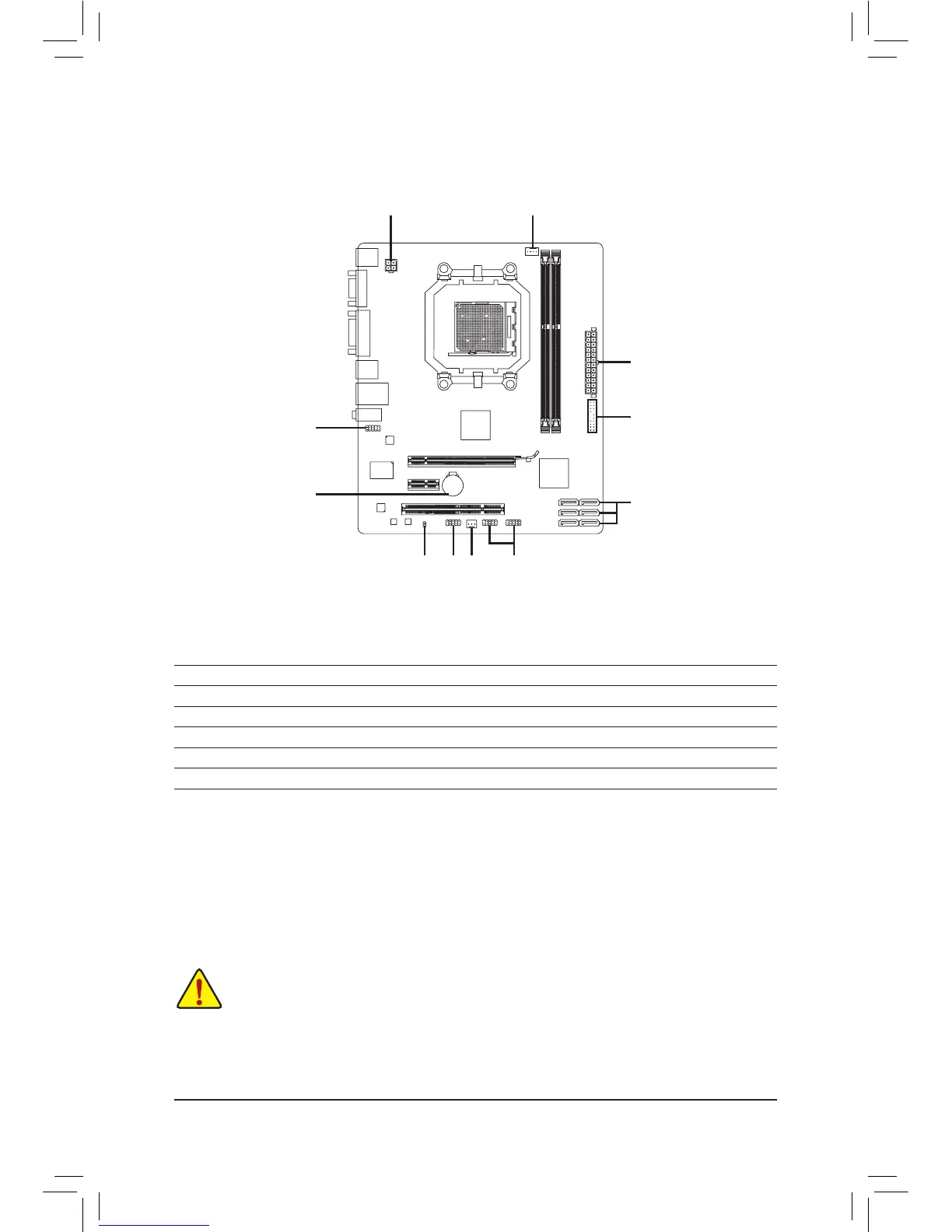

1
2
6
3
10 9
7
11
5
84
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) SATA2_0/1/2/3/4/5
6) F_PANEL
7) F_AUDIO
8) F_USB1/F_USB2
9) COM
10) CLR_CMOS
11) BAT

Gigabyte GA-78LMT-S2P Specifications

General

Form Factor	Micro ATX
Chipset	AMD 760G
Socket	AM3+
Memory Standard	DDR3 1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 2 x PCI
USB Ports	8 x USB 2.0 (4 rear, 4 via header)
Audio	Realtek ALC887 codec
LAN	Realtek 8111F Gigabit LAN
Integrated Graphics	ATI Radeon 3000
Video Outputs	1 x D-Sub (VGA)
Power Connector	24-pin ATX
Memory Slots	2 x DIMM
