Gigabyte GA-78LMT-S2P User Manual

- 6 -

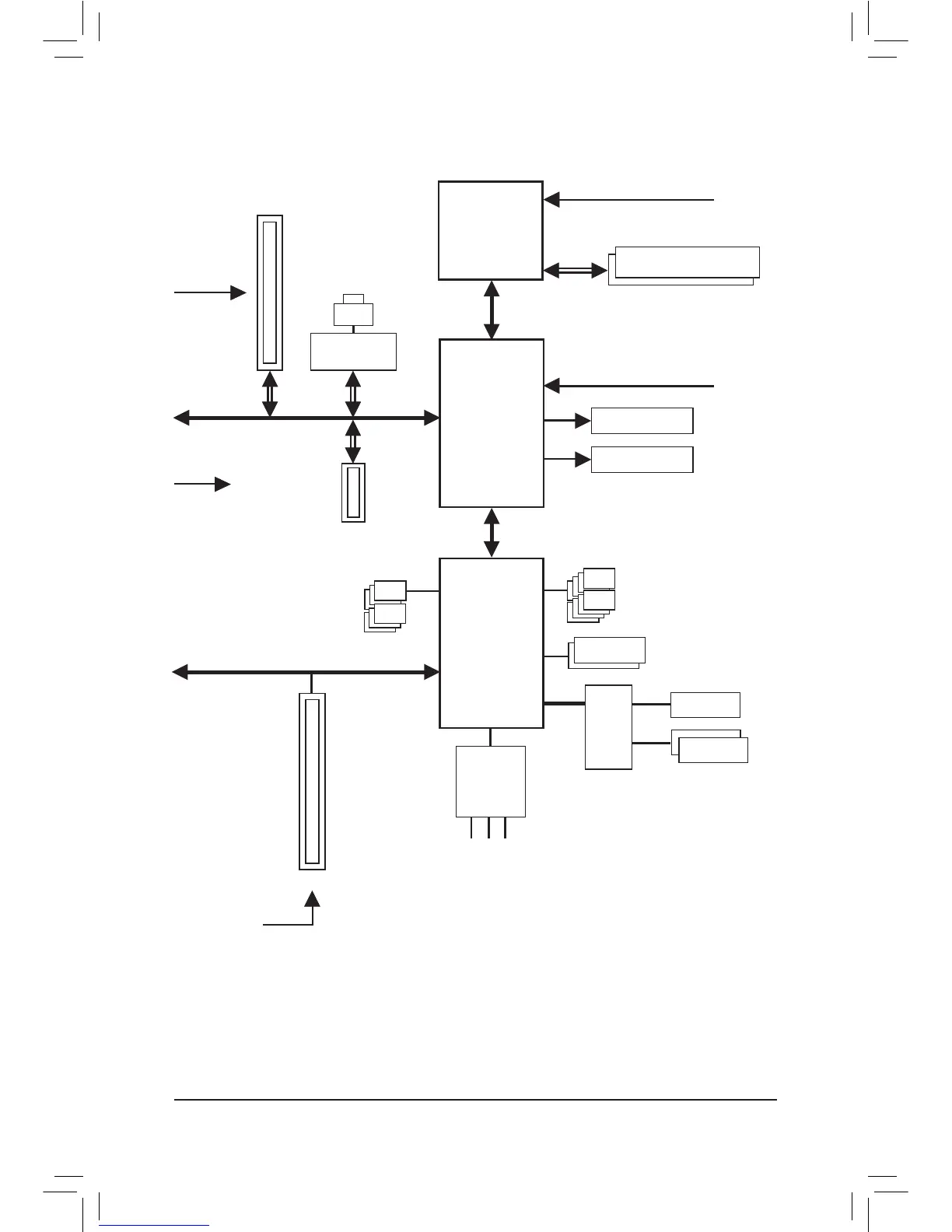

GA-78LMT-S2P Motherboard Block Diagram
Hyper Transport 3.0
AMD 760G
CPU CLK+/- (200 MHz)
Dual Channel Memory
PCI Bus
AM3+/AM3 CPU
1 PCI
PCI CLK
(33 MHz)
DDR3 1333+ (O.C.)/1066/800 MHz
COM Port
iTE
IT8720
LPC
Bus
PS/2 KB/Mouse
Dual BIOS
8 USB 2.0/1.1 Ports
6 SATA 3Gb/s
AMD SB710
PCI Express Bus
PCIe CLK
(100 MHz)
x1
PCIe CLK
(100 MHz)
1 PCI Express x16
x16
1 PCI Express x1
x1
GFX CLK (100 MHz)
D-Sub
DVI-D
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
CODEC
LAN
RJ45
Atheros/Realtek
GbE LAN

Gigabyte GA-78LMT-S2P Specifications

General

Form Factor	Micro ATX
Chipset	AMD 760G
Socket	AM3+
Memory Standard	DDR3 1333/1066 MHz
Storage Interface	4 x SATA 3Gb/s
Expansion Slots	1 x PCIe 2.0 x16, 1 x PCIe 2.0 x1, 2 x PCI
USB Ports	8 x USB 2.0 (4 rear, 4 via header)
Audio	Realtek ALC887 codec
LAN	Realtek 8111F Gigabit LAN
Integrated Graphics	ATI Radeon 3000
Video Outputs	1 x D-Sub (VGA)
Power Connector	24-pin ATX
Memory Slots	2 x DIMM
