Gigabyte GA-970A-UD3 User Manual

Hardware Installation - 22 -

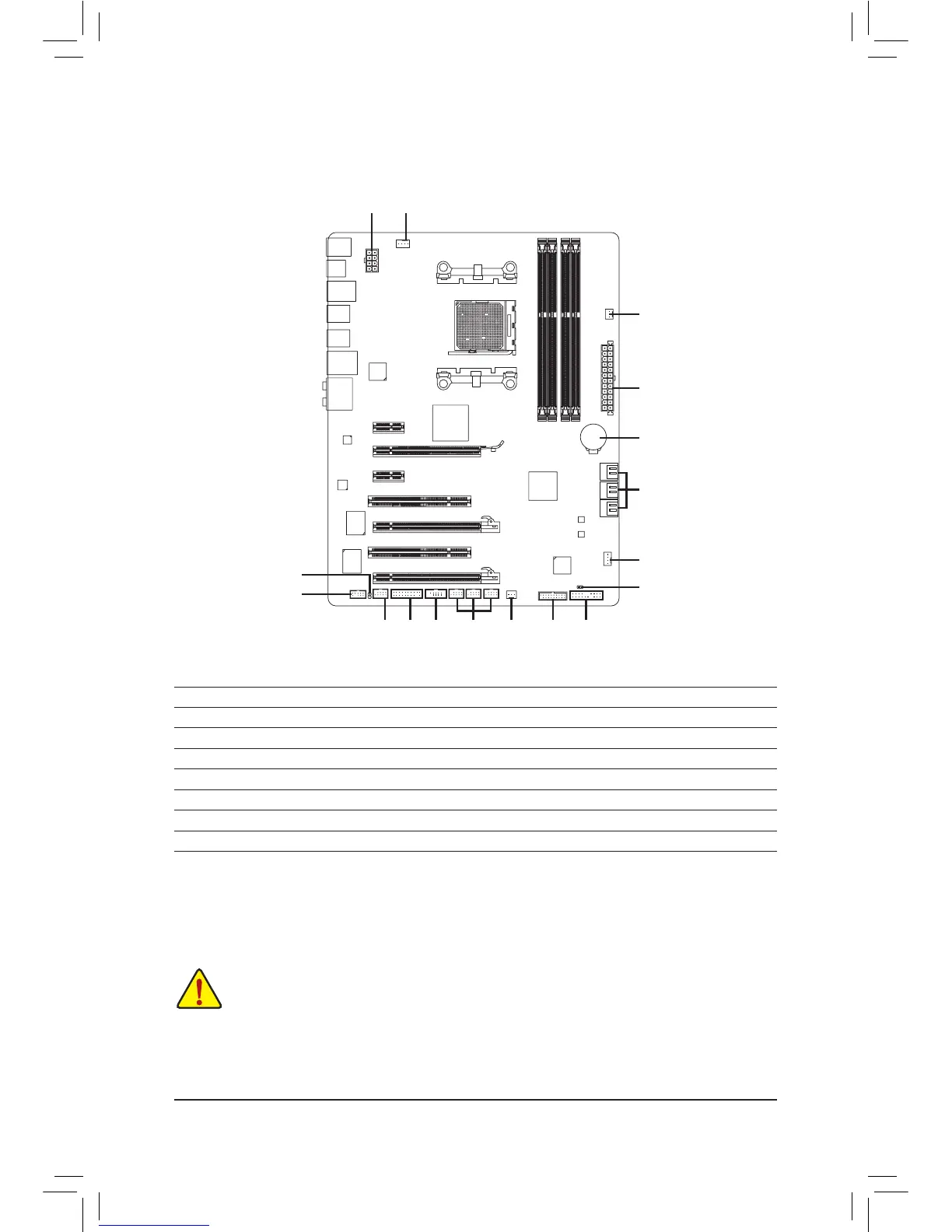

1-8 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
1 3
8
14 10 4
4
6
15
2
5
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN1/2
5) PWR_FAN
6) SATA3_0/1/2/3/4/5
7) F_PANEL
8) F_AUDIO
9) SPDIF_O
10) F_USB1/F_USB2/F_USB3
11) F_USB30
12) F_1394
13) COMA
14) TPM
15) BAT
16) CLR_CMOS
71112
13
9
16

Gigabyte GA-970A-UD3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio chip	Realtek ALC889
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Compatible operating systems	Windows XP, Vista, 7
On-board graphics card	No
Parallel processing technology support	Not supported
RAID levels	0, 1, 5, 10, JBOD
Bundled software	Norton Internet Security
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
