- 87 - Appendix
(Note) Enter the Digital Output(Optical) screen to congure further settings if you use the S/PDIF Out
connector(s) on the back panel for digital audio output or enter the Digital Output screen if you use
the internal S/PDIF Out connector (SPDIF_O) for digital audio output.
5-2-2 Conguring S/PDIF Out
The S/PDIF Out jack can transmit audio signals to an external decoder for decoding to get the best audio
quality.

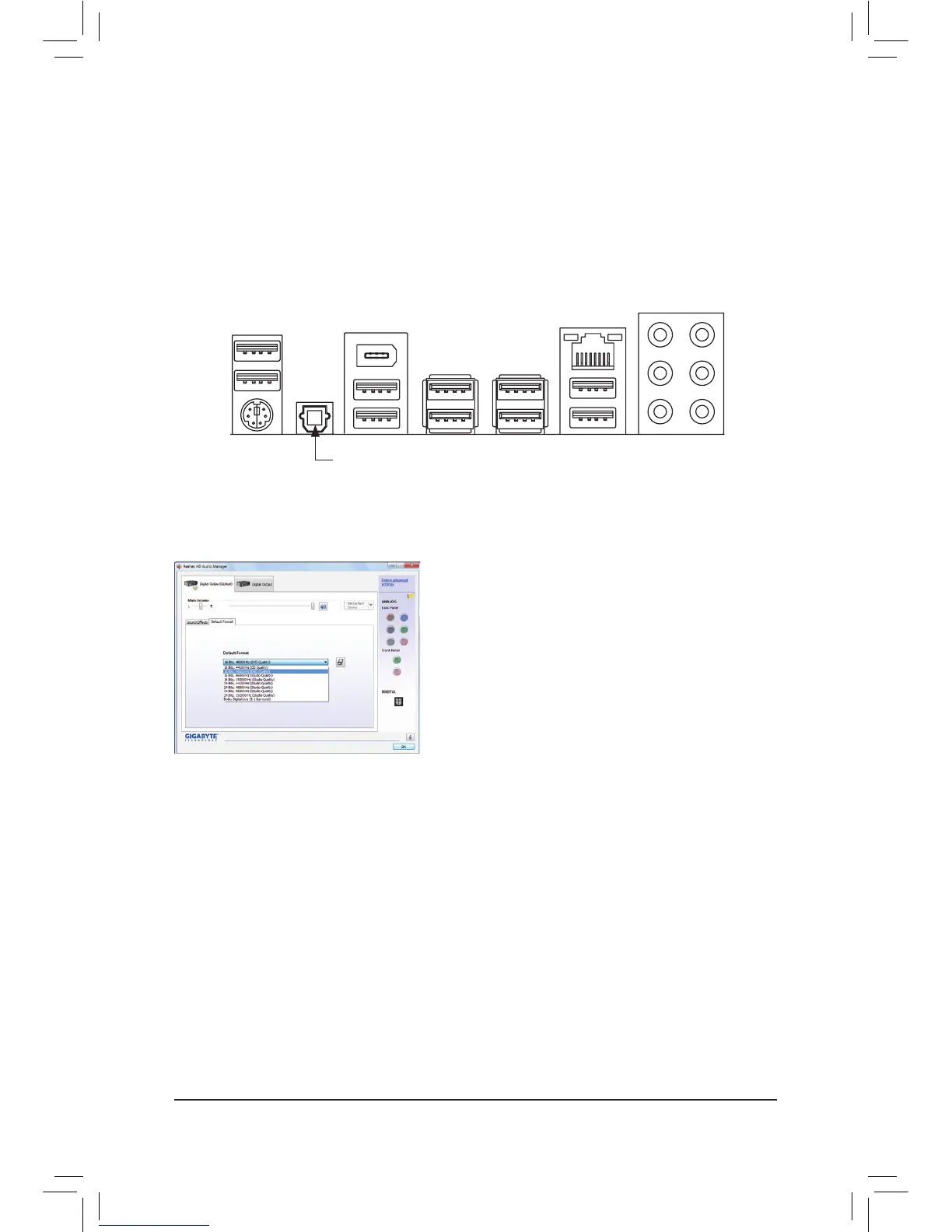

1. Connecting a S/PDIF Out Cable:
Connect a S/PDIF optical cable to the corresponding S/PDIF out connector as shown below and an external
decoder for transmitting the S/PDIF digital audio signals.
2. Conguring S/PDIF Out:
On the Digital Output(Optical) screen
(Note)
, click the Default Format tab and then select the sample rate and
bit depth. Click OK to complete.
Connects to a S/PDIF optical cable

Gigabyte GA-970A-UD3 Specifications

General

Memory voltage	1.5 V
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866 MHz
Processor socket	Socket AM3
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors	3
Power fan connector	Yes
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Audio chip	Realtek ALC889
Component for	PC
Motherboard chipset	AMD 970
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB950
Compatible operating systems	Windows XP, Vista, 7
On-board graphics card	No
Parallel processing technology support	Not supported
RAID levels	0, 1, 5, 10, JBOD
Bundled software	Norton Internet Security
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0b
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	244 mm
Width	305 mm
