Gigabyte GA-B75M-D3V User Manual

- 13 -

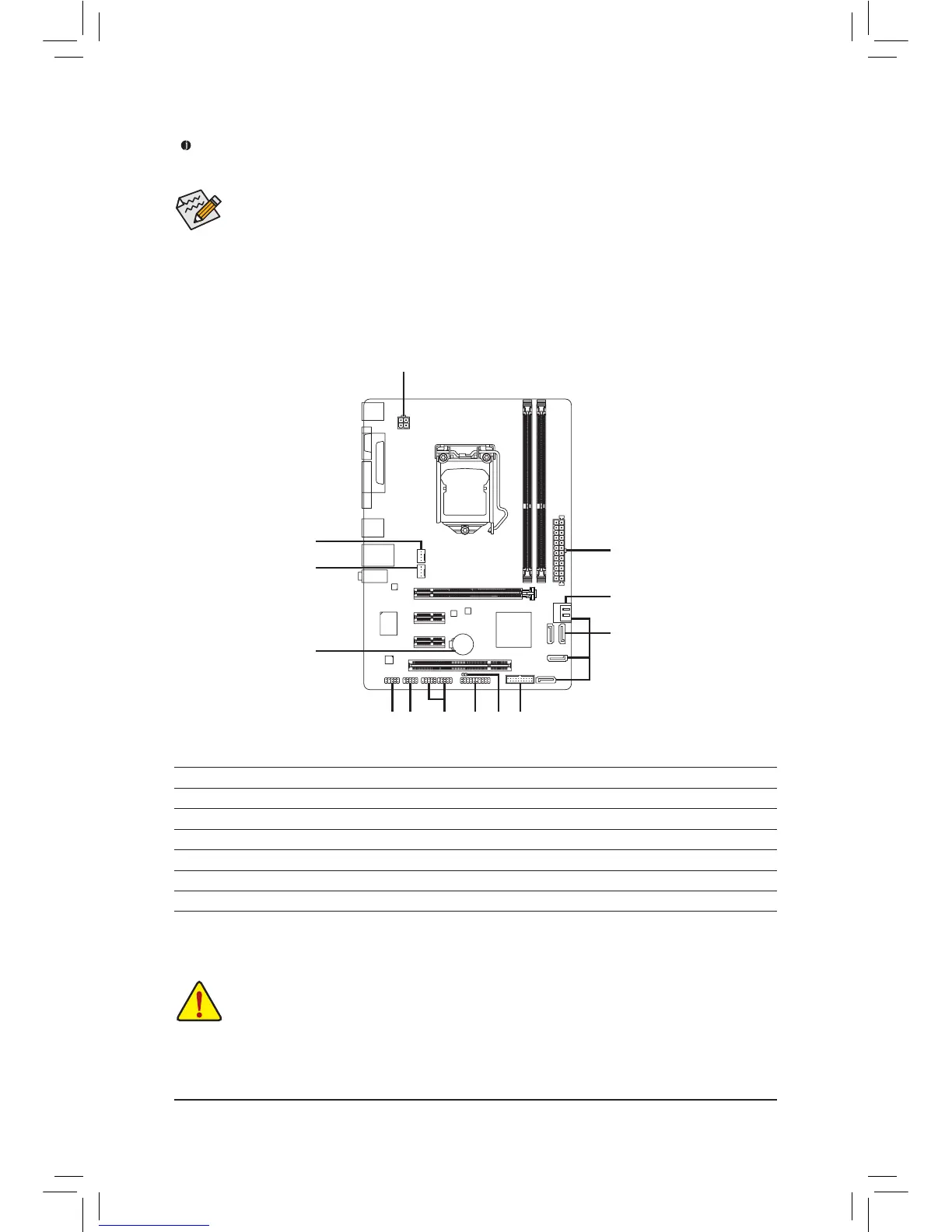

1-7 Internal Connectors
Read the following guidelines before connecting external devices:
First make sure your devices are compliant with the connectors you wish to connect. •
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power •
cord from the power outlet to prevent damage to the devices.
After installing the device and before turning on the computer, make sure the device cable has been •
securely attached to the connector on the motherboard.
1
2
6
7
9 10 8 13 11
4
3
5
12
1) ATX_12V
2) ATX
3) CPU_FAN
4) SYS_FAN
5) BAT
6) SATA3 0
7) SATA2 1/2/3/4/5
8) F_PANEL
9) F_AUDIO
10) COM
11) F_USB30
12) F_USB1/F_USB2
13) CLR_CMOS
To congure 7.1-channel audio, you have to use an HD front panel audio module and enable the
multi-channel audio feature through the audio driver.
Mic In Jack (Pink)
The default Mic in jack. Microphones must be connected to this jack.

Gigabyte GA-B75M-D3V Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum graphics card memory	1696 MB
Parallel processing technology support	Not supported
PCI Express slots version	3.0
LAN controller	-
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	174 mm
Width	244 mm
