Gigabyte GA-B75M-D3V User Manual

- 35 -
AC BACK &
Determines the state of the system after the return of power from an AC power loss.
Memory The system returns to its last known awake state upon the return of the AC power. 
Always On The system is turned on upon the return of the AC power. 
Always Off The system stays off upon the return of the AC power. (Default) 
Power On By Keyboard &
Allows the system to be turned on by a PS/2 keyboard wake-up event.
Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead.
Disabled Disables this function. (Default) 
Keyboard 98 Press POWER button on the Windows 98 keyboard to turn on the system. 
Any Key Press any key to turn on the system. 

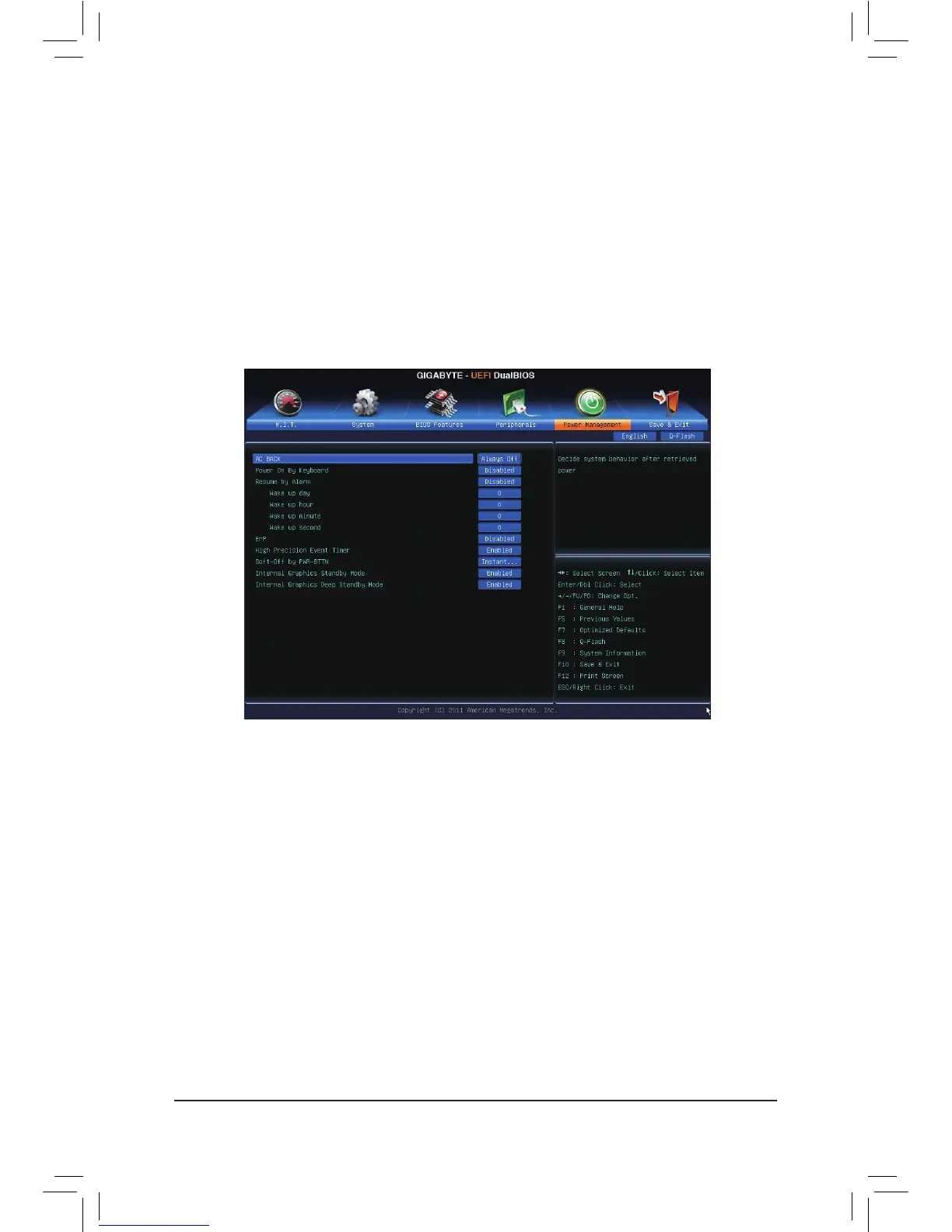

2-7 Power Management
Parallel Port &
Enables or disables the onboard parallel port. (Default: Enabled)
Intel(R) Smart Connect Technology `
ISCTConguration &
Enables or disables Intel Smart Connect Technology. (Default: Disabled)

Gigabyte GA-B75M-D3V Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
Supported memory module capacities	1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
Number of SATA II connectors	5
Number of Parallel ATA connectors	0
Headphone outputs	3
USB 2.0 ports quantity	4
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel B75
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum graphics card memory	1696 MB
Parallel processing technology support	Not supported
PCI Express slots version	3.0
LAN controller	-
Networking features	10/100/1000 Mbit/sec
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	174 mm
Width	244 mm
