1-7 Internal Connectors
Read the following guidelines before connecting external devices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the
power cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable
has been securely attached to the connector on the motherboard.

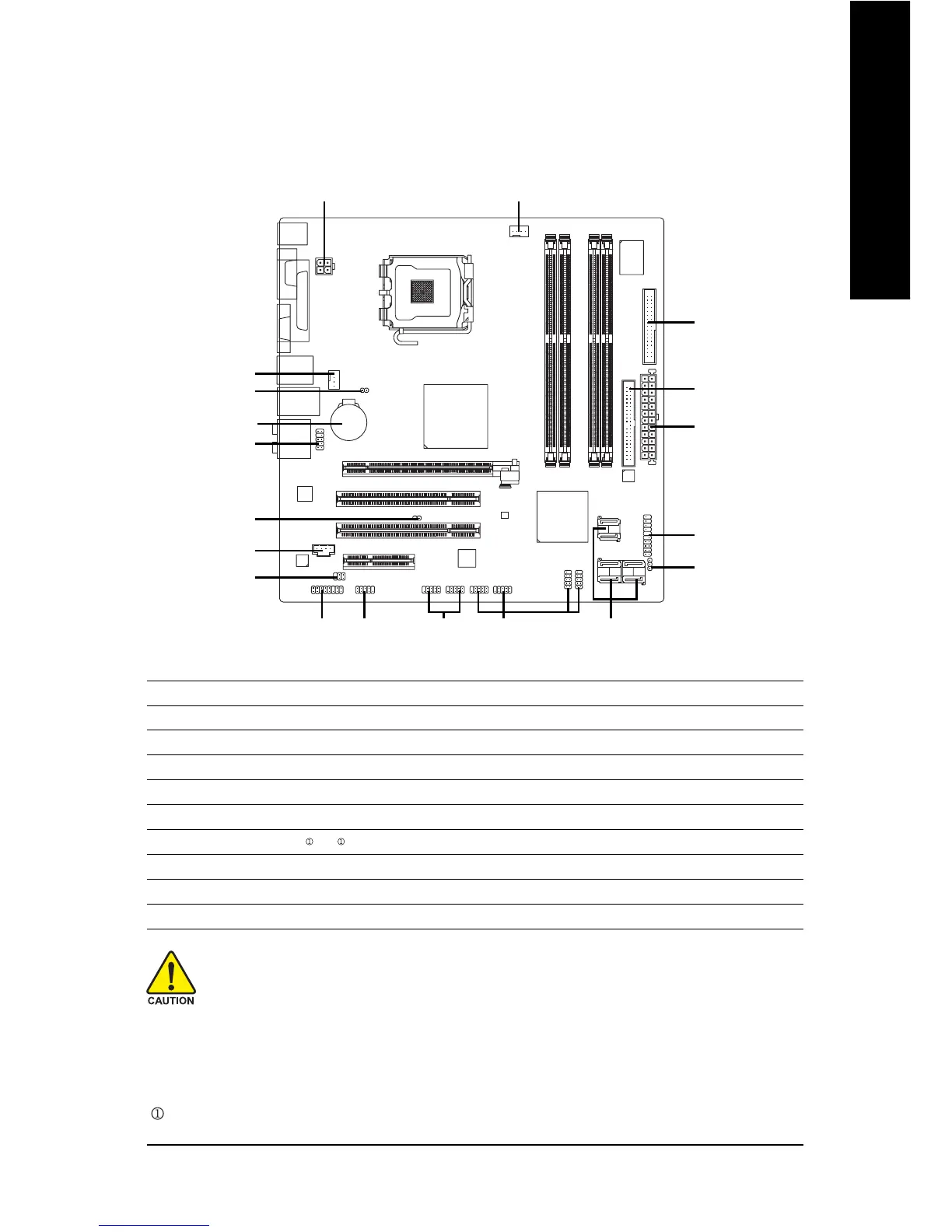

1) ATX_12V
2) ATX (Power Connector)
3) CPU_FAN
4) SYS_FAN
5) FDD
6) IDE
7) SATAII0 / 1 / 2 / 3 / 4 / 5
8) PWR_LED
9) BATTERY
10) F_PANEL
11) F_AUDIO
12) CD_IN
13) SPDIF_IO
14) HDMI_AC
15) F_USB1 / F_USB2 / F_USB3 / F_USB4
16) F1_1394 / F2_1394
17) COMB
18) CI
19) CLR_CMOS
1 3
8
1516
13
12
11
6
5
4
2
9
1714
10
7
18
19
Only for GA-G33M-DS2R.

Gigabyte GA-G33M-DS2R Specifications

General

Brand	Gigabyte
Model	GA-G33M-DS2R
Category	Motherboard
Language	English
