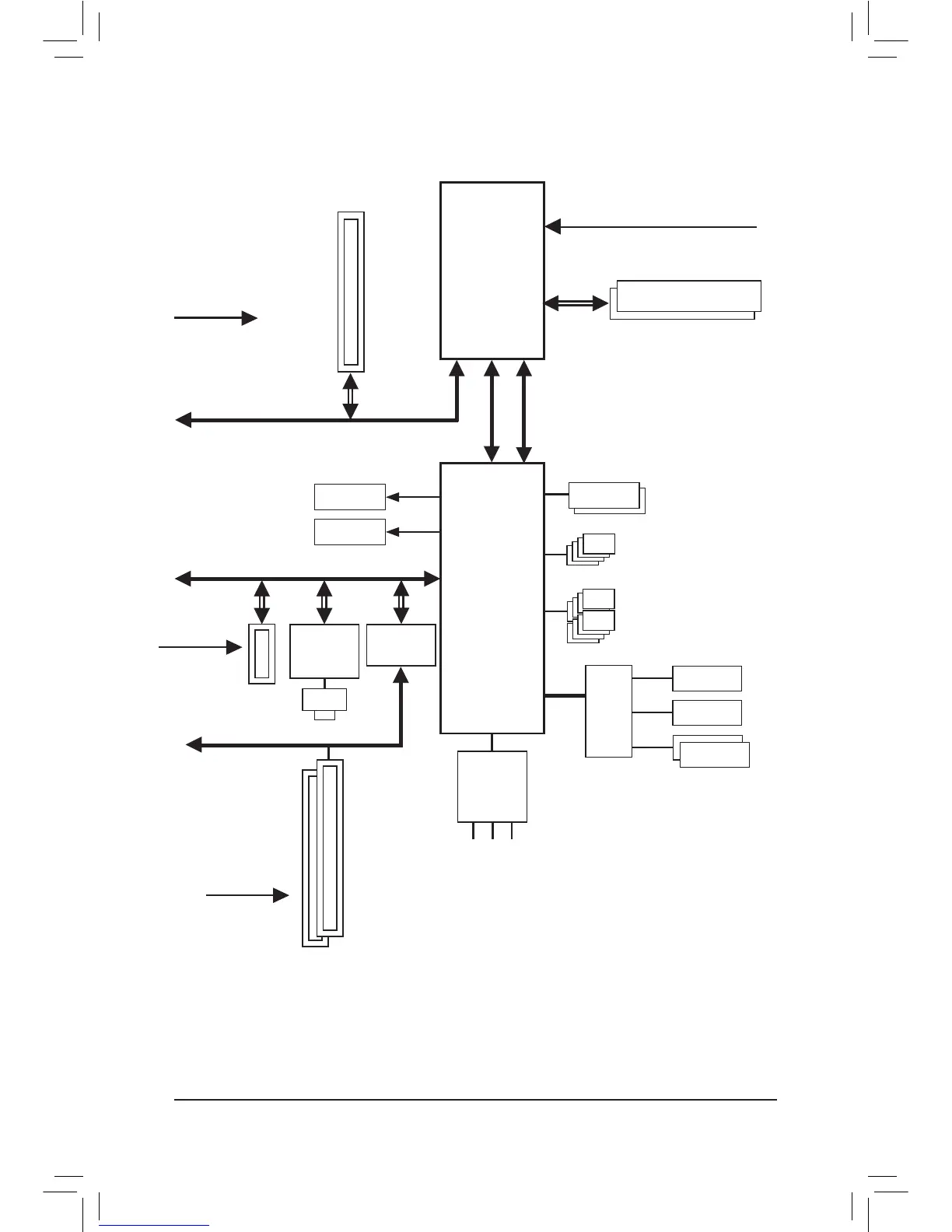

GA-H61M-S2PV Motherboard Block Diagram
PS/2 KB/Mouse
LGA1155
CPU
Intel
®
H61
PCIe CLK
(100 MHz)
PCI Express Bus
CPU CLK+/- (100 MHz)
1 PCI Express x16
Dual BIOS
COM Port
LPT
8 USB 2.0/1.1
LPC
Bus
DDR3 1333/1066/800 MHz
PCI Express Bus
PCIe CLK
(100 MHz)
iTE
IT8728
1 PCI Express x1
4 SATA 3Gb/s
D-Sub
DVI-D
DMI 2.0
FDI
x16
Dual Channel Memory
x1 x1
Line Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line In (Rear Speaker Out)
CODEC
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
2 PCI
PCI Bus
x1
LAN
RJ45
Realtek/
Atheros
GbE LAN
