- 12 -

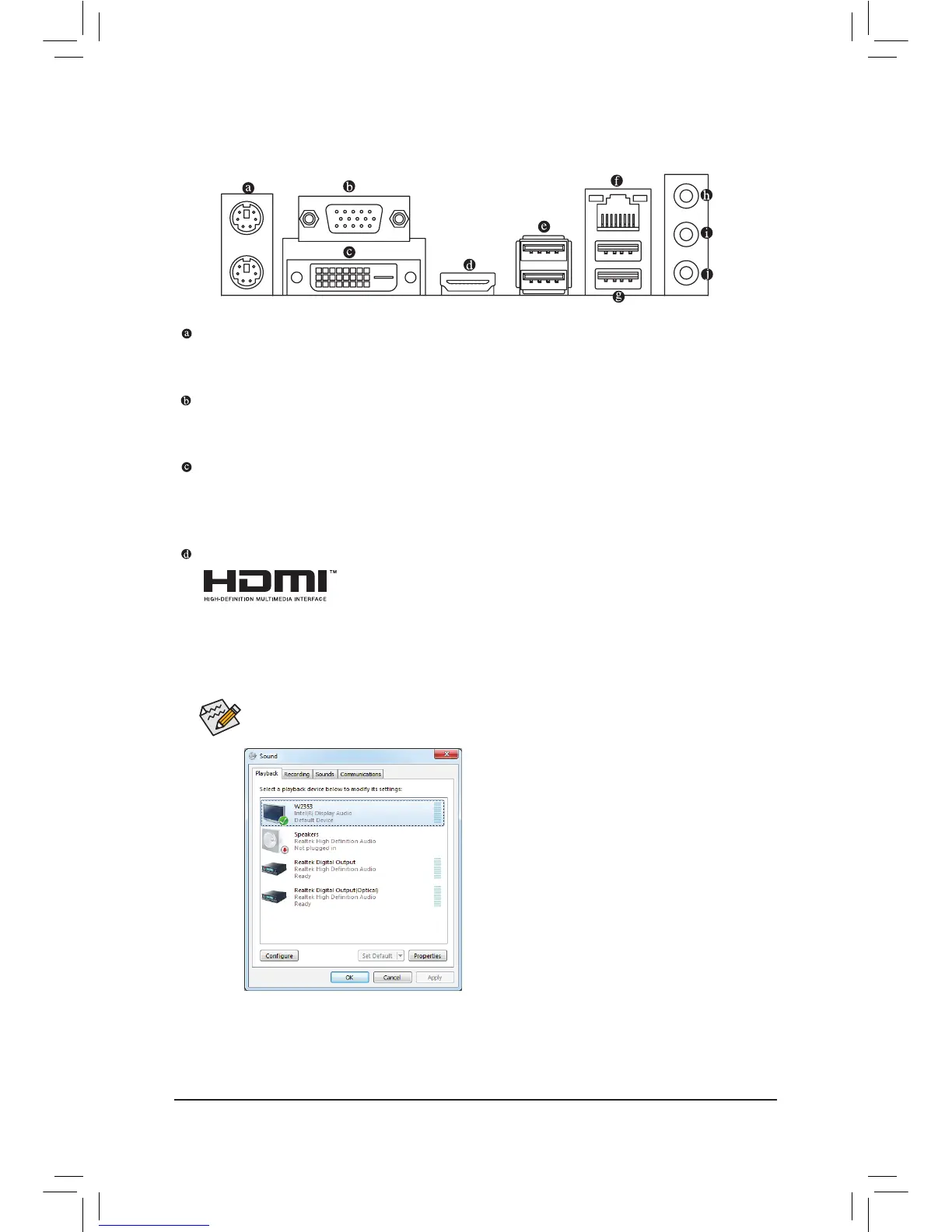

1-6 Back Panel Connectors
PS/2 Keyboard/Mouse Port
Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2 key-
board.
D-Sub Port
The D-Sub port supports a 15-pin D-Sub connector. Connect a monitor that supports D-Sub connection
to this port.
DVI-D Port
(Note)
The DVI-D port conforms to the DVI-D specication and supports a maximum resolution of 1920x1200
(the actual resolutions supported depend on the monitor being used). Connect a monitor that supports
DVI-D connection to this port.
HDMI Port
HDMI (High-Denition Multimedia Interface) is an all-digital audio/video inter-
face capable of transmitting uncompressed audio/video signals. The HDMI port
is HDCP compliant and supports Dolby TrueHD and DTS HD Master Audio formats. It also supports up
to 192KHz/24bit 8-channel LPCM audio output. You can use this port to connect your HDMI-supported
audio/video device. The maximum supported resolution is 1920x1200, but the actual resolutions sup-
ported are dependent on the monitor being used.
After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The
item name may differ depending on your operating system. Refer to the screenshot below.)
In Windows 7, select Start>Control Panel>Hardware
and Sound>Sound>Playback, set Intel(R) Display Au-
dio to the default playback device.
(Note) The DVI-D port does not support D-Sub connection by adapter.
