Gigabyte GA-H81M-S2PV User Manual

- 28 -
& Hot plug
Enables or disable the hot plug capability for each SATA port. (Default: Disabled)
& External SATA
Enables or disables support for external SATA devices. (Default: Disabled)
` SuperIOConguration
This section provides information on the super I/O chip and allows you to congure the serial port and
parallel port.
& Serial Port A
Enables or disables the onboard serial port. (Default: Enabled)
& Parallel Port
Enables or disables the onboard parallel port. (Default: Enabled)
& Device Mode
This item is congurable only when Parallel Port is set to Enabled. It allows you to select an operating
mode for the onboard parallel (LPT) port. Options are: Standard Parallel Port Mode (Default), EPP Mode
(Enhanced Parallel Port), ECP Mode (Extended Capabilities Port), EPP Mode & ECP Mode.
` Realtek PCIe GBE Family Controller
This sub-menu provides information on LAN conguration.

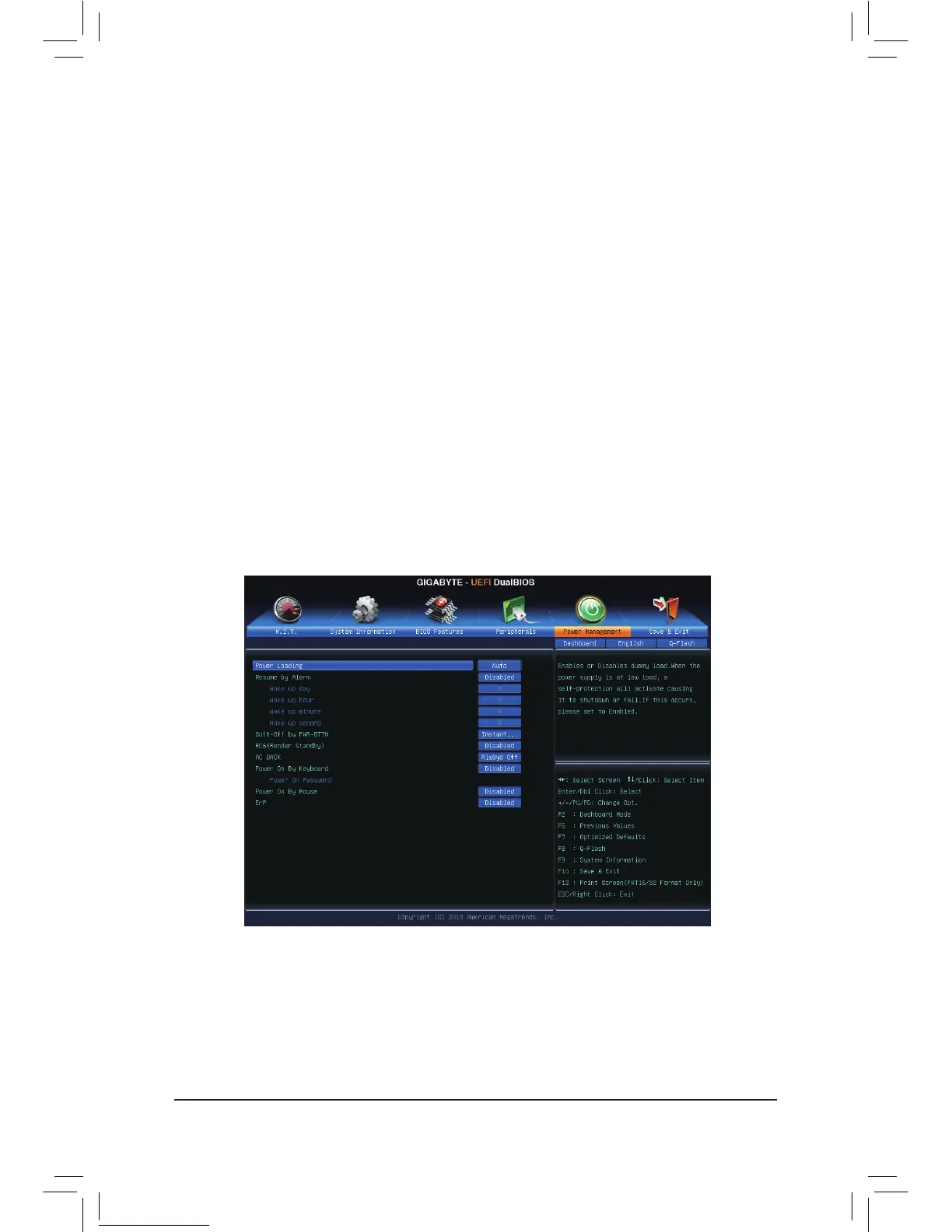

2-6 Power Management
& Power Loading
Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing
it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically congur this
setting.(Default:Auto)
& Resume by Alarm
Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:
Wake up day: Turn on the system at a specic time on each day or on a specic day in a month.

Gigabyte GA-H81M-S2PV Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
S/PDIF out port	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	180 mm
Width	244 mm
