Gigabyte GA-H81M-S2PV User Manual

- 5 -

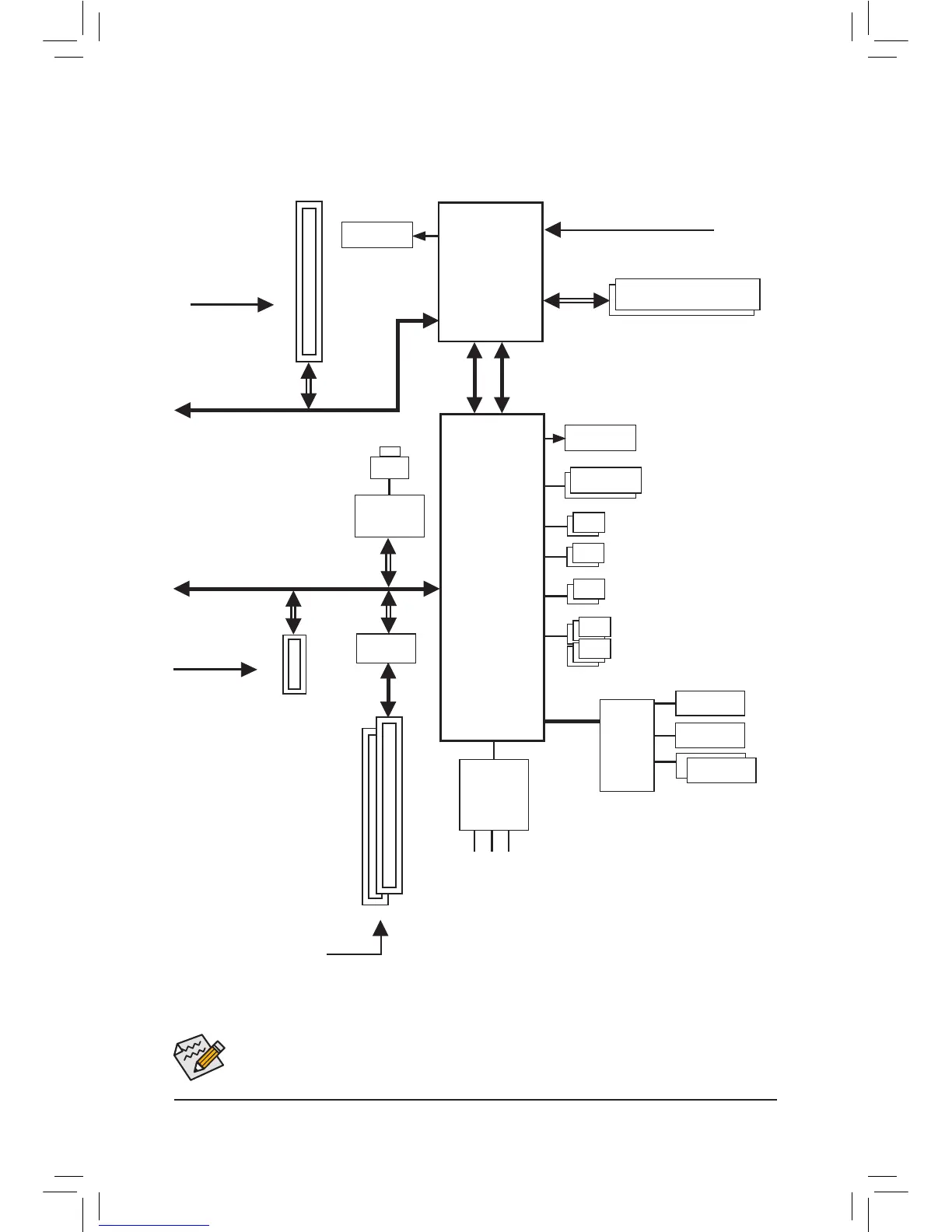

GA-H81M-S2PV Motherboard Block Diagram
For detailed product information/limitation(s), refer to "1-2 Product Specications."
PS/2 KB/Mouse
DMI 2.0
FDI
CPU CLK+/- (100 MHz)
Dual BIOS
DDR3 1600/1333 MHz
Dual Channel Memory
COM
LPC Bus
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
1 PCI Express x16
x1
LAN
RJ45
Realtek
®
GbE LAN
2 PCI
PCI Bus
PCI CLK
(33 MHz)
PCIe to PCI
Bridge
x1
x1
PCI Express Bus
x16
D-Sub
2 SATA 6Gb/s
6 USB 2.0/1.1
2 USB 3.0/2.0
2 SATA 3Gb/s
1 PCI Express x1
Line Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
CODEC
LPT
iTE
®
Super
I/O
DVI-D
Intel
®
H81
LGA1150
CPU

Gigabyte GA-H81M-S2PV Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Internal memory	16 GB
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Number of EATX power connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
S/PDIF out port	No
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Supported storage drive interfaces	SATA II, SATA III
Maximum resolution	1920 x 1200 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	Not supported
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	128 Mbit

Weight and Dimensions

Depth	180 mm
Width	244 mm
