` SuperIOConguration
This section provides information on the super I/O chip and allows you to congure the serial port and
parallel port.
& Serial Port A
Enables or disables the onboard serial port. (Default: Enabled)
& Parallel Port
Enables or disables the onboard parallel port. (Default: Enabled)
& Device Mode
This item is congurable only when Parallel Port is set to Enabled. It allows you to select an operating
mode for the onboard parallel (LPT) port. Options are: Standard Parallel Port Mode (Default), EPP Mode
(Enhanced Parallel Port), ECP Mode (Extended Capabilities Port), EPP Mode & ECP Mode.
` Realtek PCIe GBE Family Controller
This sub-menu provides information on LAN conguration.

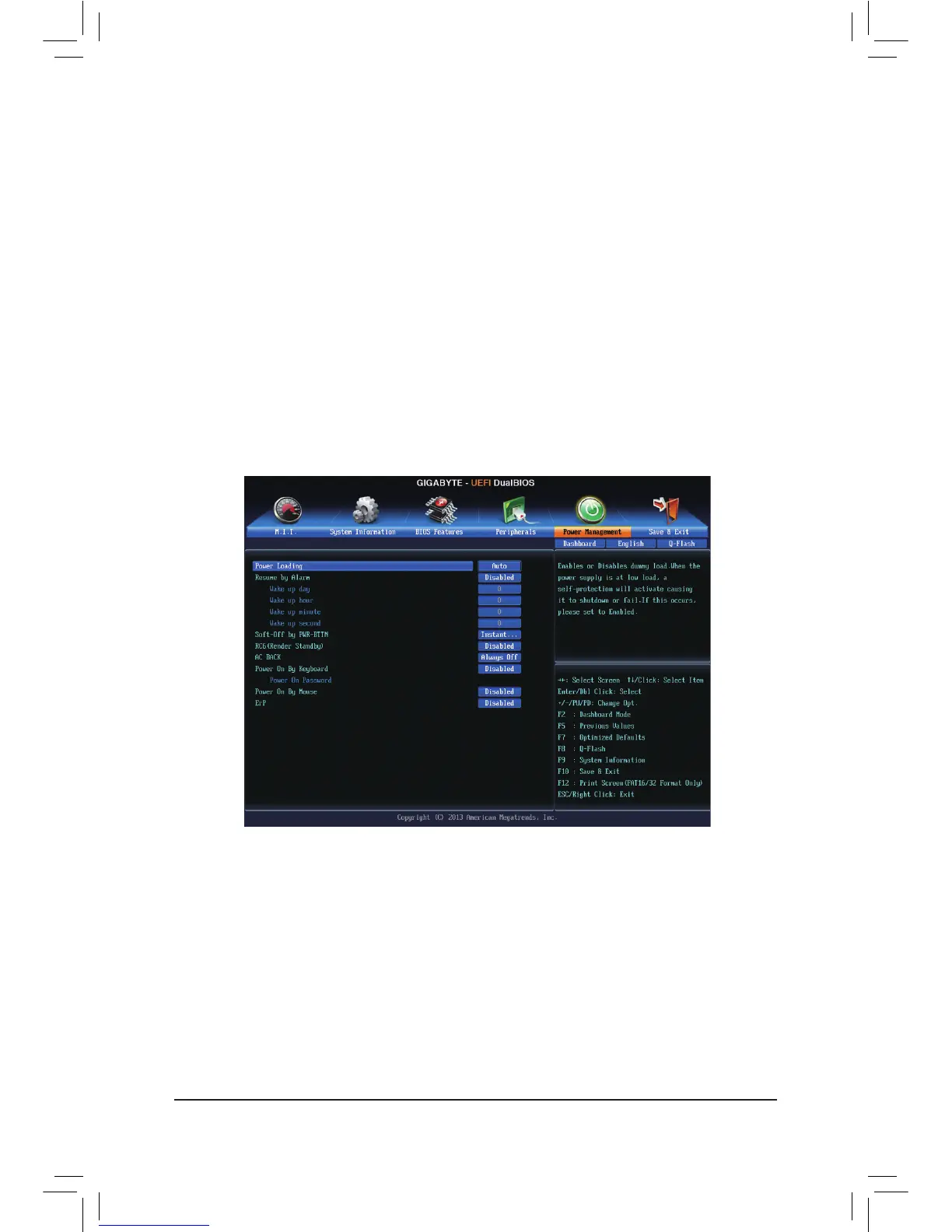

2-6 Power Management
& Power Loading
Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing
it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically congure this
setting. (Default: Auto)
& Resume by Alarm
Determines whether to power on the system at a desired time. (Default: Disabled)
If enabled, set the date and time as following:
Wake up day: Turn on the system at a specic time on each day or on a specic day in a month.
Wake up hour/minute/second: Set the time at which the system will be powered on automatically.
Note: When using this function, avoid inadequate shutdown from the operating system or removal of the
AC power, or the settings may not be effective.

Gigabyte GA-H81N Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II, SATA III
HDMI version	1.4a
USB 2.0 ports quantity	5
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
PC health monitoring	CPU
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	-
BIOS type	UEFI AMI
ACPI version	2.0a
Bundled software	Norton® Internet Security (OEM)

Weight and Dimensions

Width	170 mm
