Gigabyte GA-H81N User Manual

- 5 -

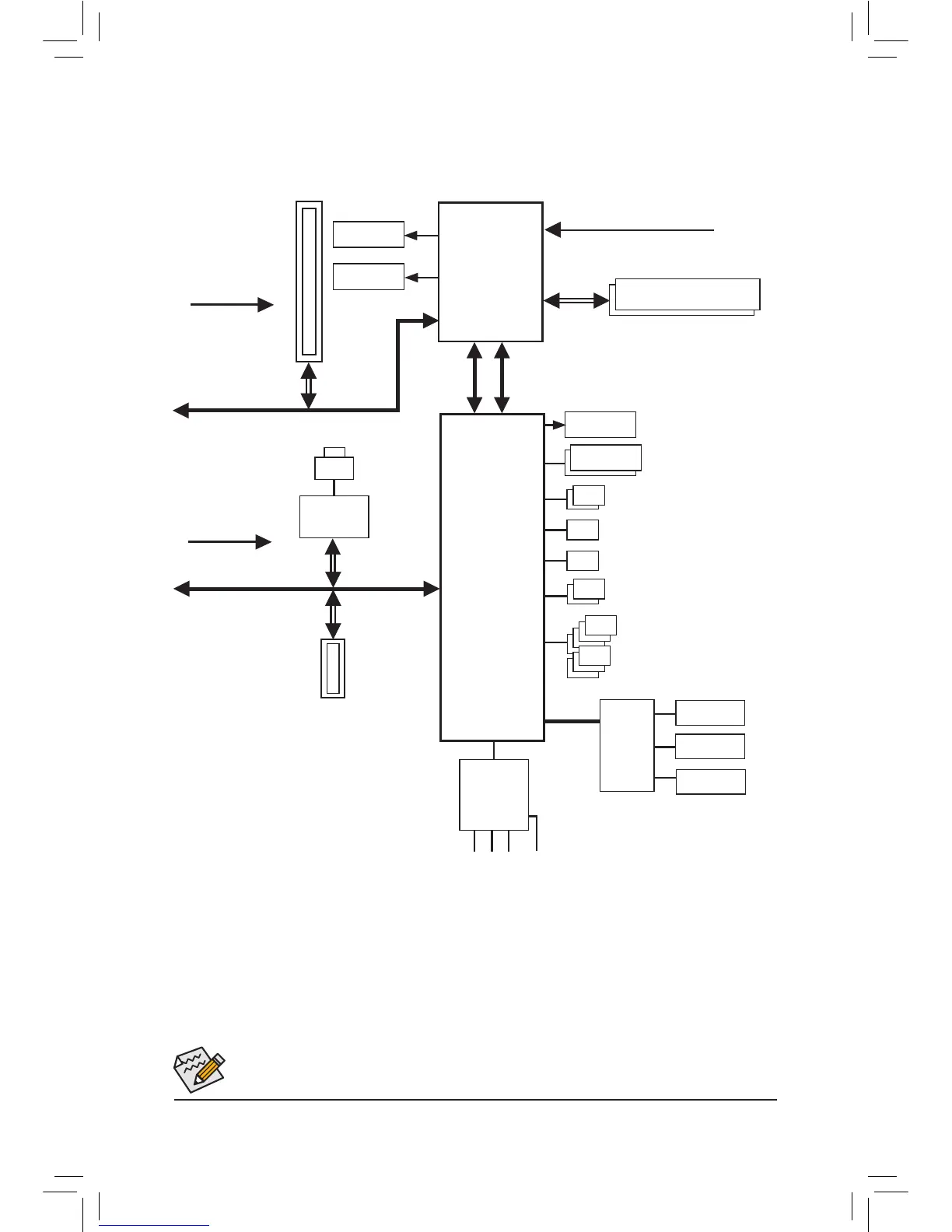

GA-H81N Motherboard Block Diagram
PS/2 KB/Mouse
DMI 2.0
FDI
CPU CLK+/- (100 MHz)
Dual BIOS
DDR3 1600/1333 MHz
Dual Channel Memory
LPC Bus
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
PCI Express Bus
1 PCI Express x16
x1
LAN
RJ45
Realtek
®
GbE LAN
PCI Express Bus
x16
D-Sub
2 SATA 6Gb/s
For detailed product information/limitation(s), refer to "1-2 Product Specications."
1 SATA 3Gb/s
Line Out (Front Speaker Out)
MIC (Center/Subwoofer
Speaker Out)
Line In (Rear Speaker Out)
LPT
iTE
®
Super
I/O
Intel
®
H81
S/PDIF Out
CODEC
COM
x1
Mini PCIe
DVI-D
HDMI
LGA1150
CPU
7 USB 2.0/1.1
2 USB 3.0/2.0
1 mSATA 3Gb/s

Gigabyte GA-H81N Specifications

General

Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600 MHz
Processor socket	LGA 1150 (Socket H3)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
Supported storage drive interfaces	SATA II, SATA III
HDMI version	1.4a
USB 2.0 ports quantity	5
Ethernet interface type	Gigabit Ethernet
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® H81
PC health monitoring	CPU
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	1024 MB
Parallel processing technology support	-
BIOS type	UEFI AMI
ACPI version	2.0a
Bundled software	Norton® Internet Security (OEM)

Weight and Dimensions

Width	170 mm
