Use extreme care when removing the CPU cooler because the thermal grease/tape between
the CPU cooler and CPU may adhere to the CPU. Inadequately removing the CPU cooler
may damage the CPU.

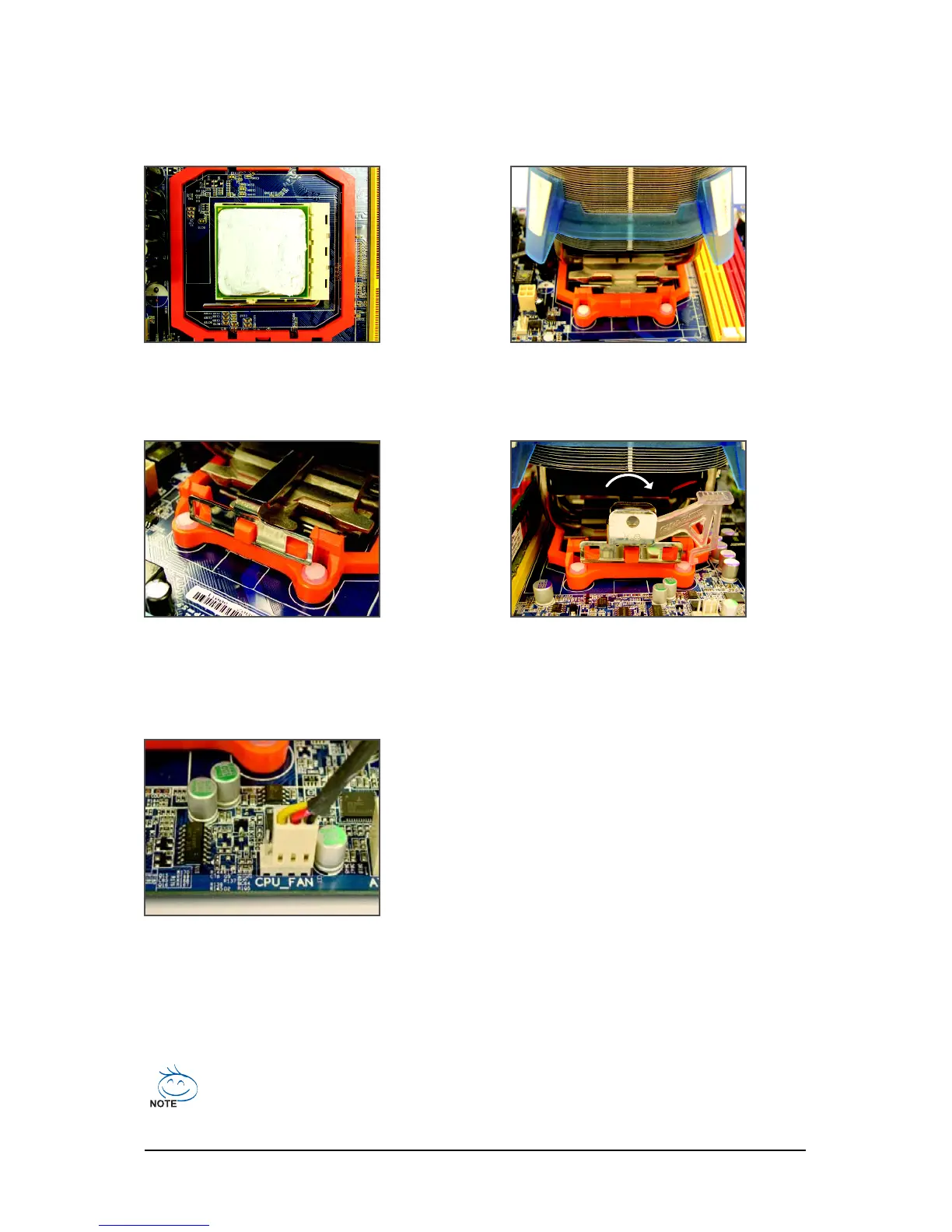

1-3-2 Installing the CPU Cooler
Follow the steps below to correctly install the CPU cooler on the CPU. (The following procedure uses
the GIGABYTE cooler as the example.)
Step 1:
Apply an even and thin layer of thermal grease
on the surface of the installed CPU.
Step 2:
Place the CPU cooler on the CPU.
Step 4:
Turn the cam handle from the left side to the
right side (as the picture above shows) to lock
into place. (Refer to your CPU cooler installa-
tion manual for instructions on installing the
cooler.)
Step 3:
Hook the CPU cooler clip to the mounting lug on
one side of the retention frame. On the other side,
push straight down on the the CPU cooler clip to
hook it to the mounting lug on the retention frame.
Step 5:
Finally, attach the power connector of the CPU
cooler to the CPU fan header (CPU_FAN) on
the motherboard.

Gigabyte GA-M61PME-S2 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Processor system buses supported	2000 MHz
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
Headphone outputs	3
USB 2.0 ports quantity	4
BIOS type	AWARD
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Norton Internet Security
Networking features	Gigabit Ethernet
RAID levels	0, 1

Weight and Dimensions

Depth	225 mm
Width	244 mm
