Gigabyte GA-M61PME-S2 User Manual

- 8 -

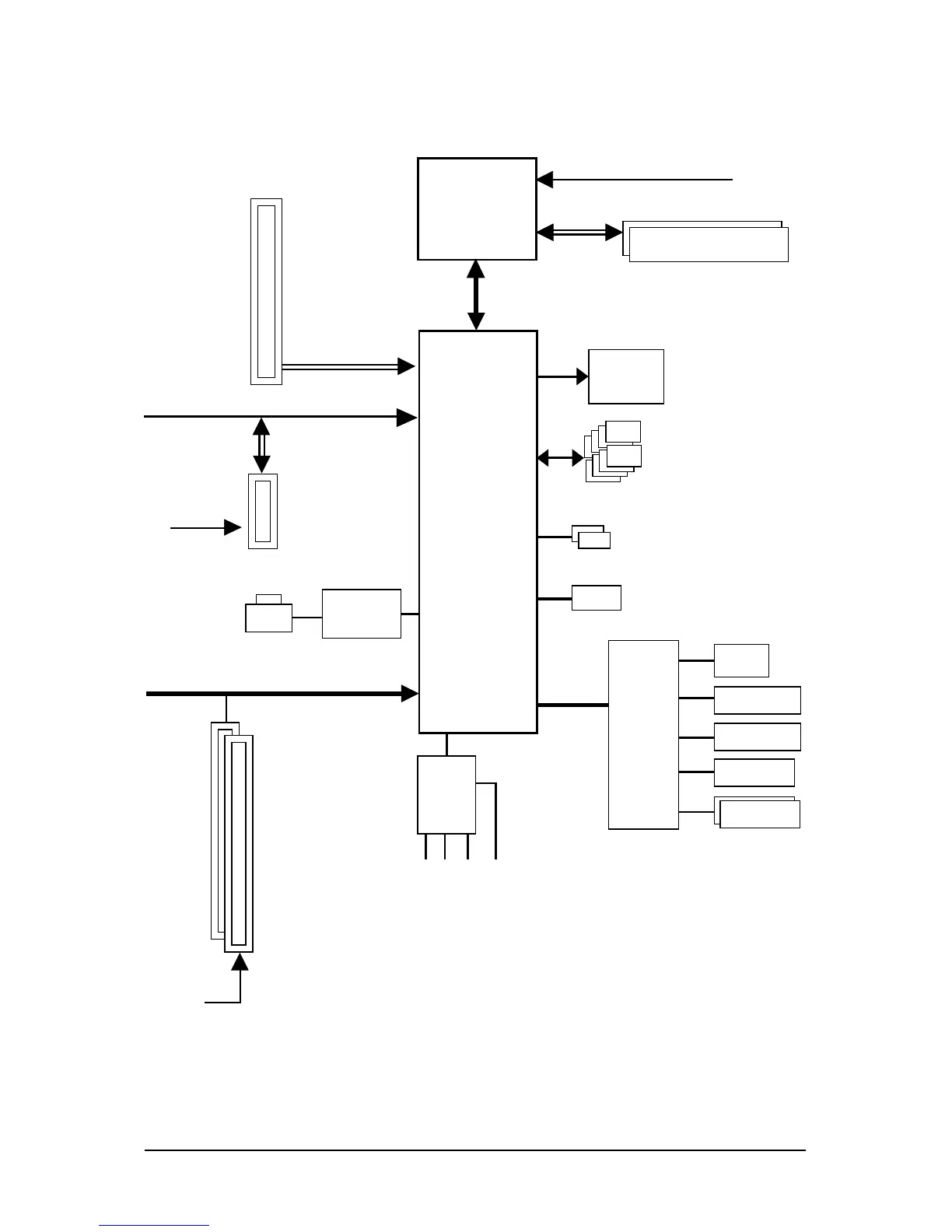

Block Diagram
DDR2 800/667/533 MHz DIMM
PCIe CLK
(100 MHz)
PCI Express x16
AMD
Socket AM2
CPU
CPU CLK+/-(200 MHz)
Hyper Transport Bus
2 SATA 3Gb/s
ATA-133/100/66/33
IDE Channel
PCI Bus
8 USB Ports
Dual Channel Memory
LPC BUS
PCI Express x1 Bus
1 PCI Express x1
x1
PCIe CLK
(100 MHz)
PCI CLK
(33 MHz)
2 PCI
IT8716
D-Sub
LAN
RJ45
Realtek
8201CL
PS/2 KB/Mouse
COM Port
LPT Port
Floppy
BIOS
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
CODEC
Line-In (Rear Speaker Out)
SPDIF Out
NVIDIA
®
GeForce 6100/
nForce 430

Gigabyte GA-M61PME-S2 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Processor system buses supported	2000 MHz
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
Headphone outputs	3
USB 2.0 ports quantity	4
BIOS type	AWARD
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Norton Internet Security
Networking features	Gigabit Ethernet
RAID levels	0, 1

Weight and Dimensions

Depth	225 mm
Width	244 mm
