Gigabyte GA-M61PME-S2 User Manual

Hardware Installation- 23 -

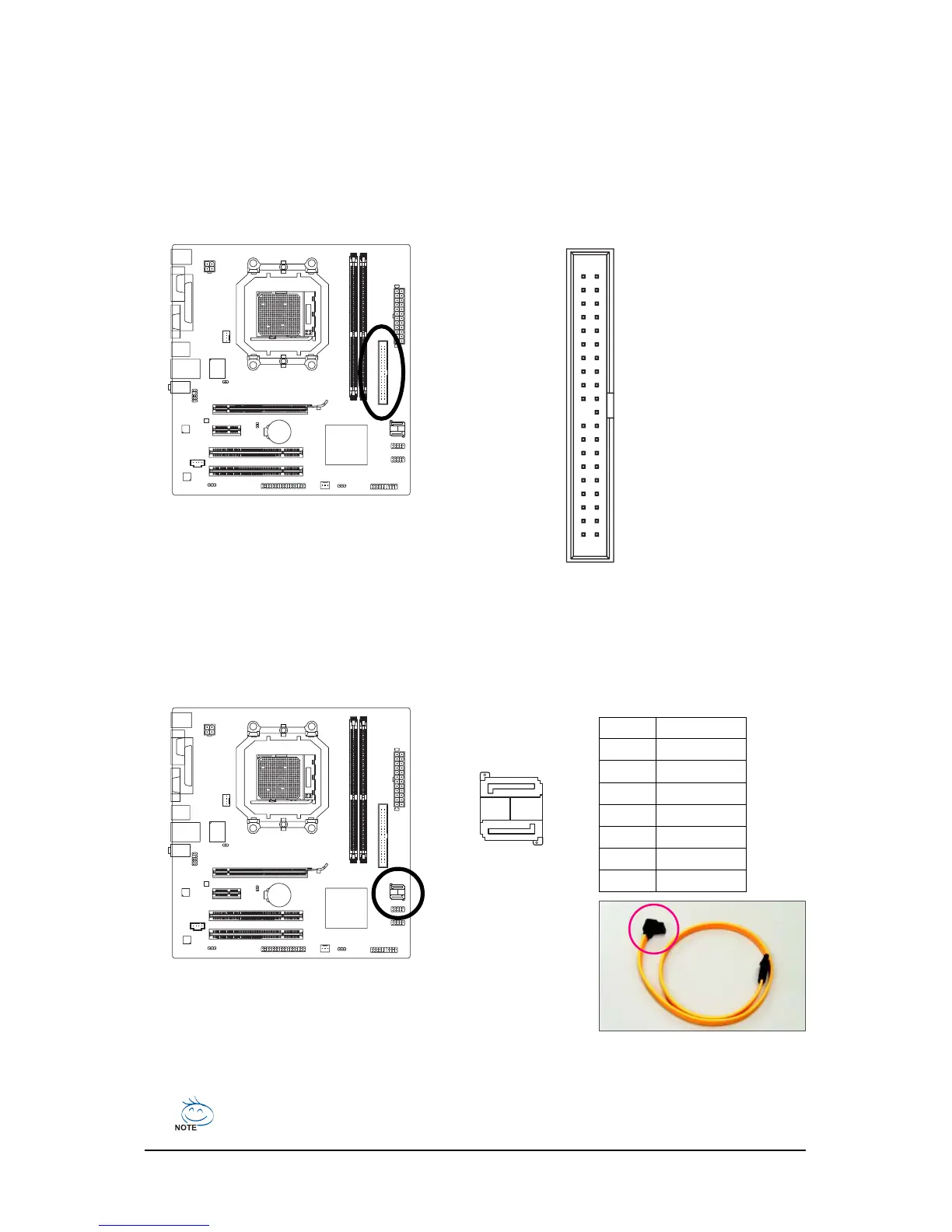

6) IDE (IDE Connector)
The IDE connector supports up to two IDE devices such as hard drives and optical drives. Before
attaching the IDE cable, locate the foolproof groove on the connector. If you wish to connect two IDE
devices, remember to set the jumpers and the cabling according to the role of the IDE devices (for
example, master or slave). (For information about configuring master/slave settings for the IDE
devices, read the instructions from the device manufacturers.)
12
39
40
7) SATAII 0/1 (SATA 3Gb/s Connectors)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s
standard. Each SATA connector supports a single SATA device. The NVIDIA
®
GeForce 6100/
nForce 430 chipset controller supports RAID 0 and RAID 1. Refer to Chapter 5, "Configuring SATA
Hard Drive(s)," for instructions on configuring a RAID array.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
A RAID 0 or RAID 1 configuration requires two hard drives.
7
17
1
SATAII0
SATAII1
Please connect the L-shaped end
of the SATA 3Gb/s cable to your
SATA hard drive.

Gigabyte GA-M61PME-S2 Specifications

General

Number of memory slots	2
Maximum internal memory	8 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
Processor system buses supported	2000 MHz
S/PDIF out connector	Yes
Number of Parallel ATA connectors	1
Controller interface type	SATA
Controller 2nd interface type	IDE
Headphone outputs	3
USB 2.0 ports quantity	4
BIOS type	AWARD
Power source type	ATX
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Bundled software	Norton Internet Security
Networking features	Gigabit Ethernet
RAID levels	0, 1

Weight and Dimensions

Depth	225 mm
Width	244 mm
