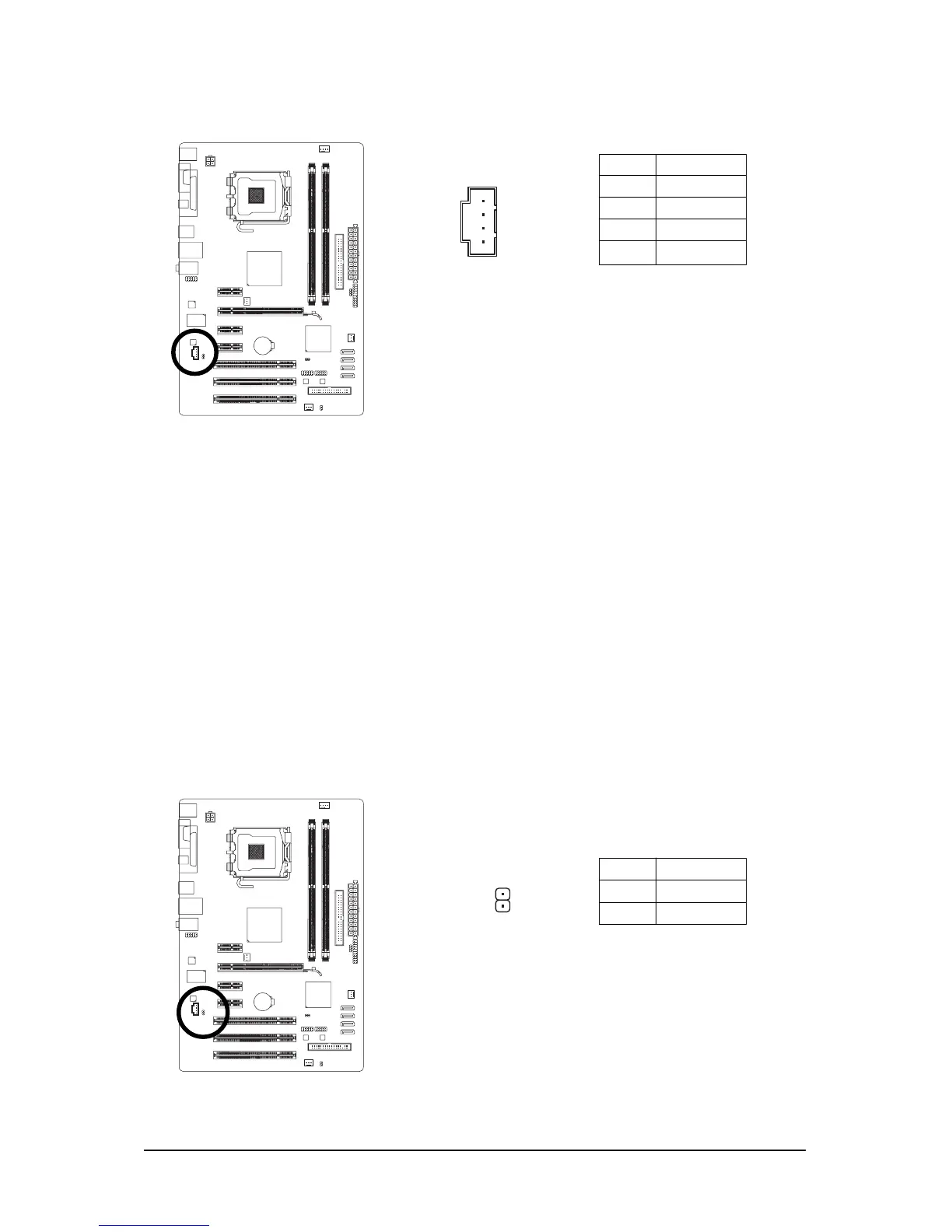

12) CD_IN (CD In Connector)
You may connect the audio cable that came with your optical drive to the header.
Pin No. Definition
1 CD-L
2 GND
3 GND
4 CD-R
1
13) SPDIF_O (S/PDIF Out Header)
This header supports digital S/PDIF out and connects a S/PDIF digital audio cable (provided by
expansion cards) for digital audio output from your motherboard to certain expansion cards like
graphics cards and sound cards. For example, some graphics cards may require you to use a
S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if
you wish to connect an HDMI display to the graphics card and have digital audio output from the
HDMI display at the same time. For information about connecting the S/PDIF digital audio cable,
carefully read the manual for your expansion card.
Pin No. Definition
1 SPDIFO
2 GND
1

Gigabyte GA-P31-ES3G Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
S/PDIF in port	No
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	5.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows Vista, XP, 2000
BIOS type	AWARD
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
Trial software	Norton Internet Security

Weight and Dimensions

Depth	194 mm
Width	305 mm
