Gigabyte GA-P31-ES3G User Manual

GA-P31-ES3G Motherboard - 66 -
Button Information Table
4-3 EasyTune 5 Pro
EasyTune
TM
5 Pro, an easy-to-use and convenient system overclocking and management tool, lets
you do overclock and overvoltage in Windows environment, eliminating the need to enter the BIOS
Setup program. EasyTune 5 Pro provides the following functions
(Note 1)
: overclocking/overvoltage,
C.I.A./M.I.B.
(Note 2)
, smart fan control, and hardware monitoring and warning. (For instructions on using
EasyTune5 Pro, read or download the information on/from the Support\Motherboard\Utility page on our
website.)

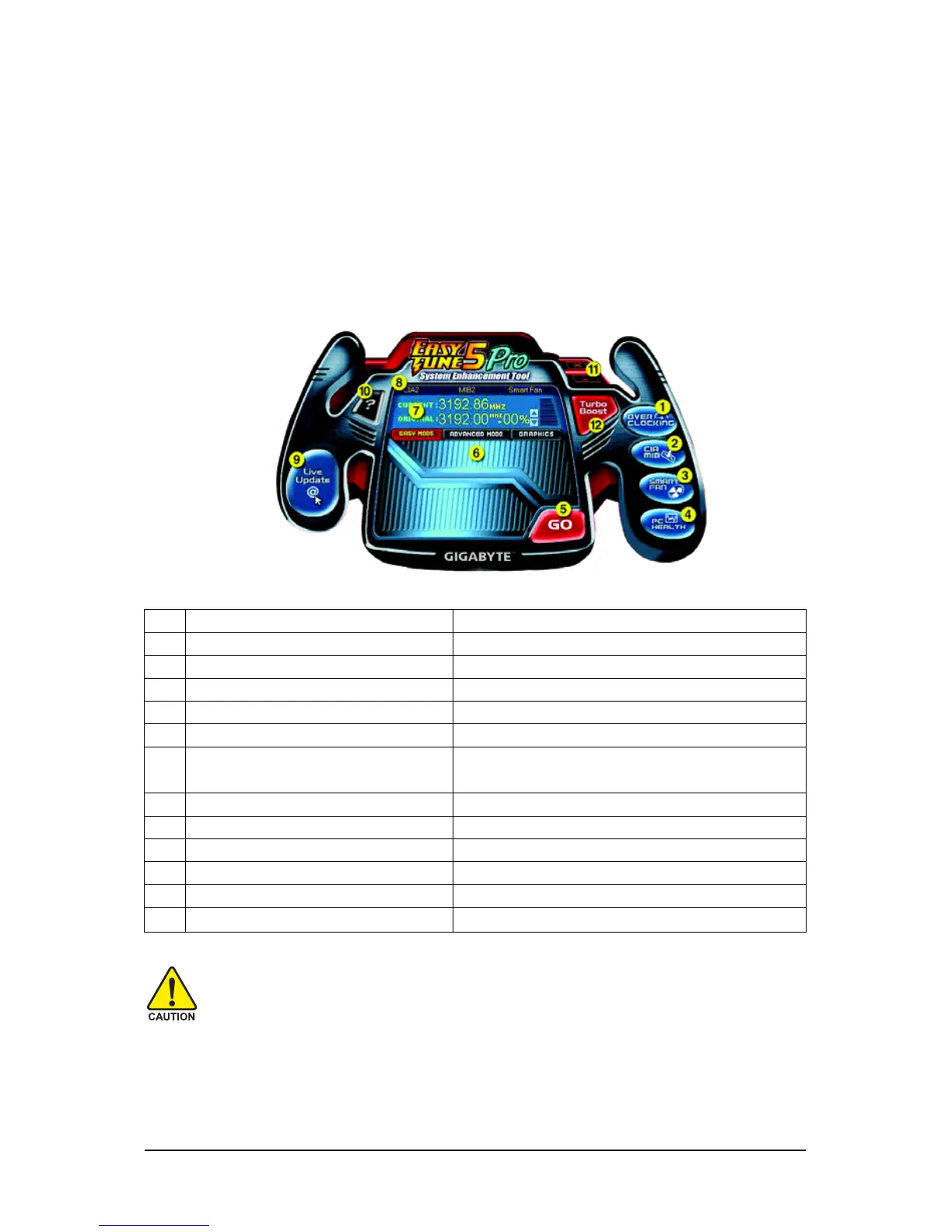

The EasyTune 5 Pro Interface
(Note 1) Available functions in EasyTune 5 Pro may differ by motherboard model.
(Note 2) C.I.A. and M.I.B. may provide optimizations for CPU and memory, enhancing the
performance of these components.
Incorrectly doing overclock/overvoltage may result in damage to CPU, chipset, or memory and
reduce the useful life of these components. Before you do the overclock/overvoltage, make sure
that you fully know how to use each function of EasyTune 5 Pro, or system instability or other
unexpected results may occur.
Button/Display Description
1. OVERCLOCKING Enters the OVERCLOCKING setting page
2. C.I.A./M.I.B. Enters the C.I.A. and M.I.B. setting page
3. SMART FAN Enters the SMART FAN setting page
4. PC HEALTH Enters the PC HEALTH setting page
5. GO Confirmation/execution button
6. EASY MODE/ADVANCED MODE/ Toggles among Easy Mode, Advanced Mode, and
GRAPHICS Graphics Mode
7. Display Area Displays the CPU frequency
8. Function LEDs Shows the supported function(s)
9. Live Update Go to GIGABYTE website to update EasyTune 5 Pro
10. Help Opens EasyTune 5 Pro help file
11. Exit/Minimize Quits or minimizes the EasyTune 5 Pro interface
12. Turbo Boost Performance Enhancement

Gigabyte GA-P31-ES3G Specifications

General

Memory voltage	1.8 V
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
USB 2.0 connectors	8
Power fan connector	Yes
Number of SATA connectors	4
Number of Parallel ATA connectors	1
S/PDIF in port	No
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888
Audio output channels	5.1 channels
Motherboard form factor	ATX
Compatible operating systems	Microsoft Windows Vista, XP, 2000
BIOS type	AWARD
LAN controller	Realtek RTL8111C
Networking features	10/100/1000 Mbit
Trial software	Norton Internet Security

Weight and Dimensions

Depth	194 mm
Width	305 mm
