Gigabyte GA-P41T-D3 User Manual

- 8 -

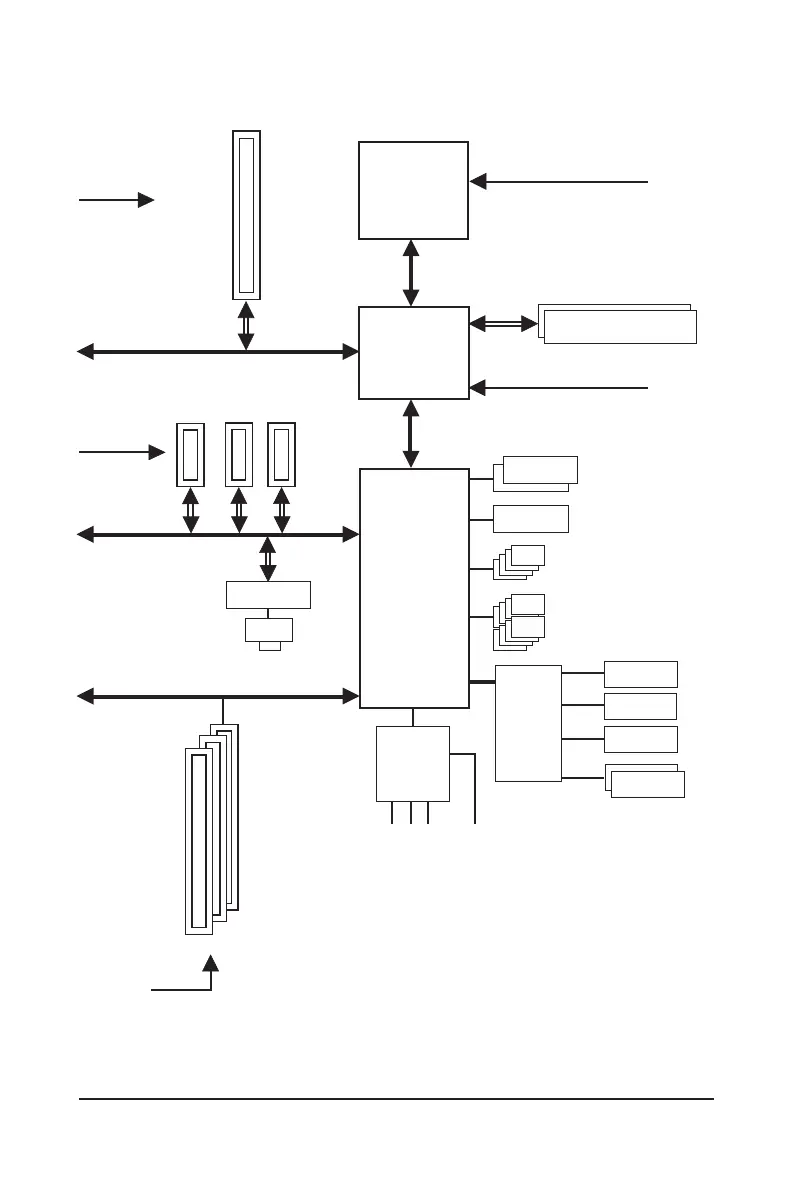

GA-P41T-D3 Motherboard Block Diagram
PS/2 KB/Mouse
8 USB 2.0/1.1
LGA775
Processor
Host
Interface
Intel
®
G41
MCH CLK
(333/266/200 MHz)
Intel
®
ICH7
3 PCI
PCI Bus
Dual Channel Memory
PCI CLK
(33 MHz)
PCI Express x16
Floppy
CPU CLK+/-
(333/266/200 MHz)
3 PCI Express x1
PCI Express Bus
PCIe CLK
(100 MHz)
PCIe CLK
(100 MHz)
x1
x1
4 SATA 3Gb/s
ATA-100/66/33
IDE Channel
Dual BIOS
COM Port
LAN
RJ45
Line-Out (Front Speaker Out)
MIC (Center/Subwoofer Speaker Out)
Line-In (Rear Speaker Out)
S/PDIF Out
CODEC
LPT
x1 x1
x16
1 PCI Express x16
DDR3 1333(O.C.)/1066/800 MHz
Realtek
RTL8111C/D/E
iTE
IT8718

Gigabyte GA-P41T-D3 Specifications

General

Non-ECC	No
Memory voltage	1.5 V
Number of memory slots	2
Maximum internal memory	4 GB
Supported memory clock speeds	1333 MHz
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of SATA connectors	4
Number of EATX power connectors	1
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Firewire (IEEE 1394) ports	0
Audio chip	Realtek ALC888 / ALC892
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8111C
Networking features	Gigabit Ethernet
BIOS type	AWARD
ACPI version	1.0
BIOS memory size	16 Mbit

Weight and Dimensions

Depth	194 mm
Width	305 mm
