- 27 - Hardware Installation

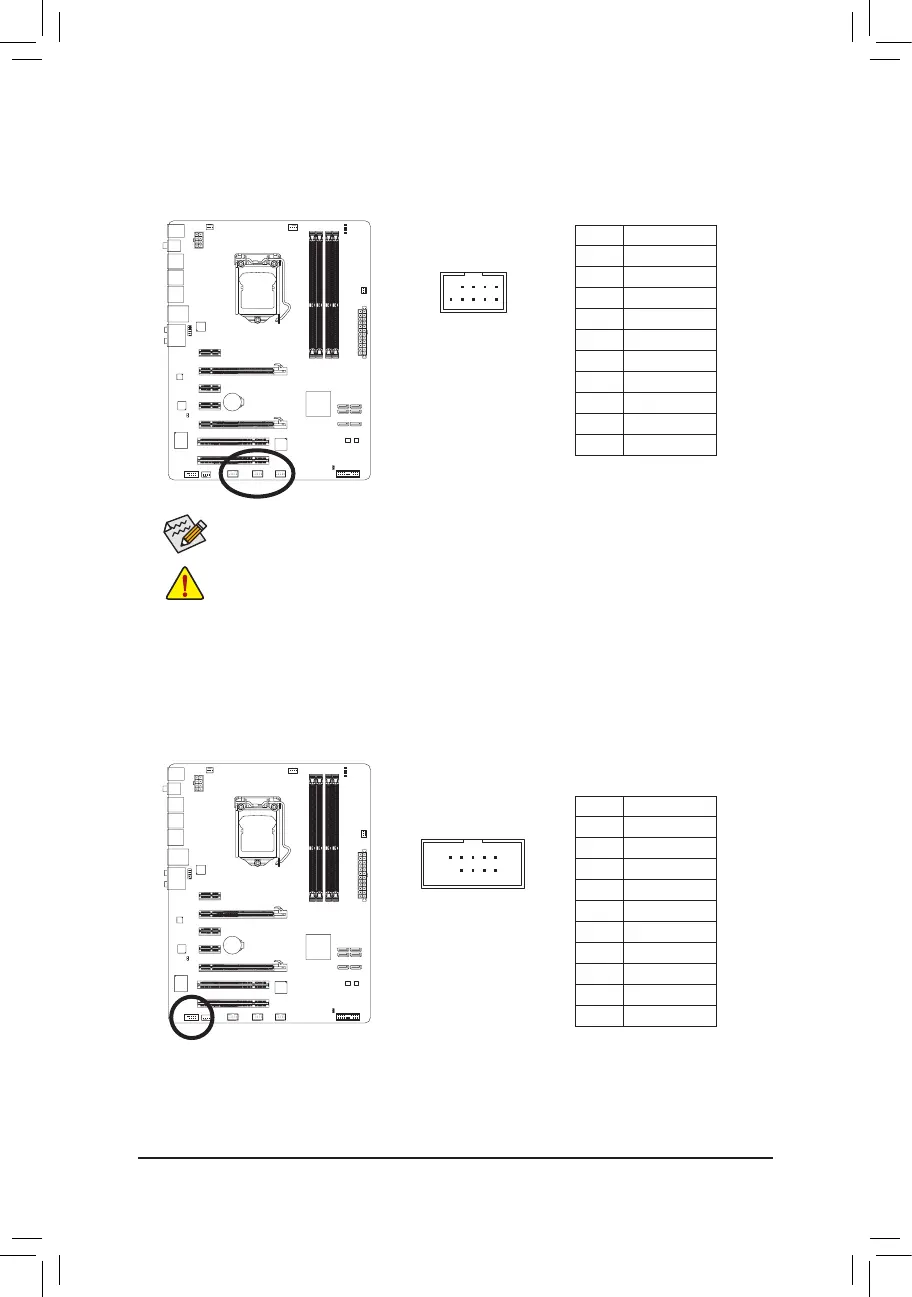

12) F_USB1/F_USB2/F_USB3 (USB Headers)

 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

DEBUG

PORT

G.QBOFM

PinNo. Denition

1 Power (5V)

2 Power (5V)

3 USB DX-

4 USB DY-

5 USB DX+

6 USB DY+

7 GND

8 GND

9 No Pin

10 NC

• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB header.

• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power

cord from the power outlet to prevent damage to the USB bracket.

When the system is in S4/S5 mode, only the USB ports routed to the F_USB1 header can sup-

port the ON/OFF Charge function.

13) COMA (Serial Port Header)

The COM header can provide one serial port via an optional COM port cable. For purchasing the op-

tional COM port cable, please contact the local dealer.

PinNo. Denition

1 NDCD-

2 NSIN

3 NSOUT

4 NDTR-

5 GND

6 NDSR-

7 NRTS-

8 NCTS-

9 NRI-

10 No Pin

Gigabyte GA-P67A-UD3R-B3 User Manual
