Gigabyte GA-VM900M User Manual

Appendix- 71 -
English

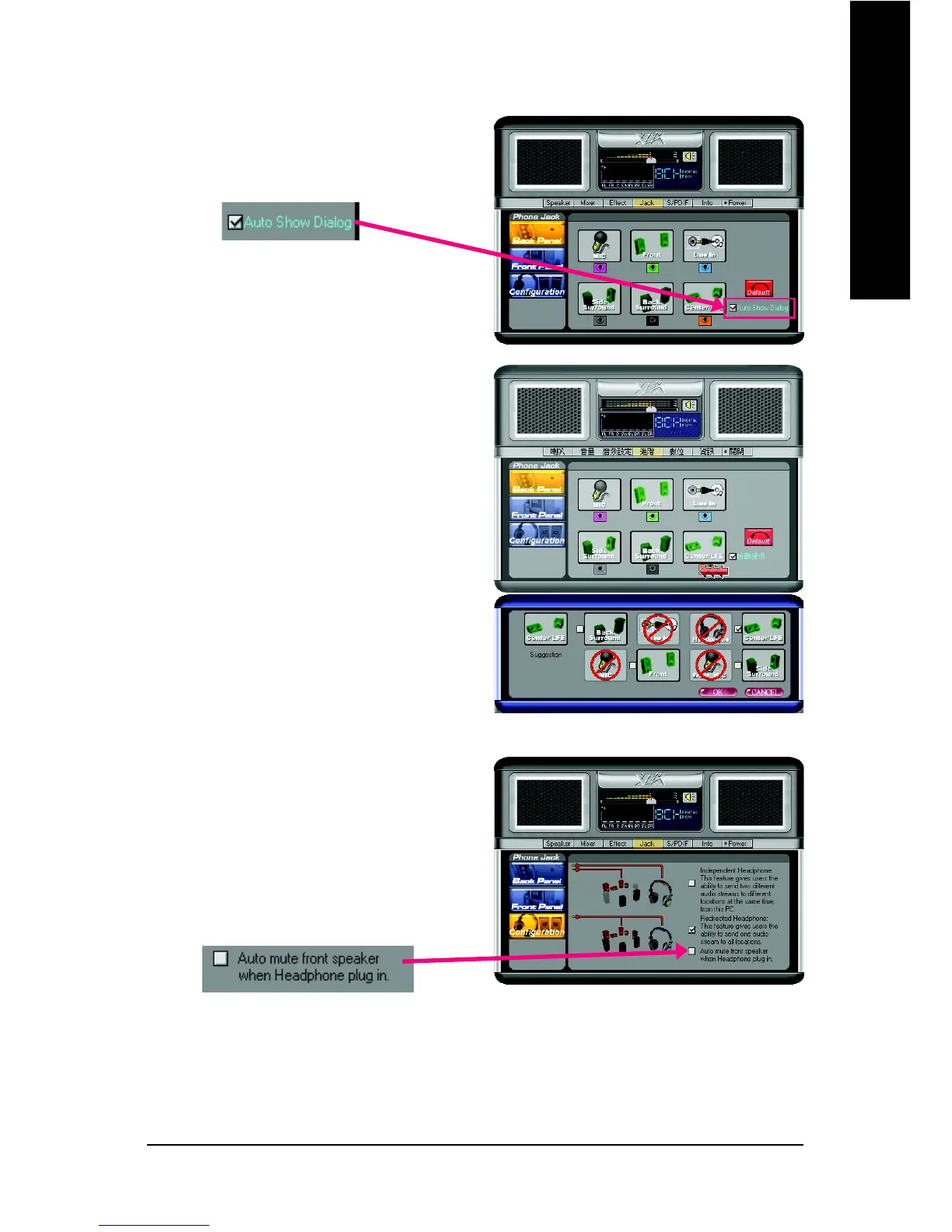

AC'97 Audio Configuration:
To enable the front panel audio connector to sup-
port AC'97 Audio mode, go to the Audio Control
Panel and click the Jack tab.
Click the Configuration button and do not select
the Auto mute front speaker when Headphone
plug in check box. This action completes the
AC'97 Audio configuration.
Auto-detecting:
In the Audio Control Panel, click the Jack tab. Click
the Auto Show Dialog checkbox will enable the
Retasking function.
A Retasking dialog will show up when you plug
the audio device into the jacks. Click the right
output device checkbox that you connect in, then
press OK.

Gigabyte GA-VM900M Specifications

General

Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	LGA 775 (Socket T)
Processor manufacturer	Intel
Power fan connector	Yes
Number of COM connectors	1
WiFi-AP antenna jack	No
USB 2.0 ports quantity	4
Audio chip	VIA VT1708A
Power source type	ATX
Motherboard chipset	VIA P4M900
Motherboard form factor	micro ATX
Parallel processing technology support	Not supported
LAN controller	Realtek RTL8201CL
Networking features	10/100Mb Ethernet

Weight and Dimensions

Depth	233 mm
Width	244 mm
