Gigabyte GA-Z170-HD3P User Manual

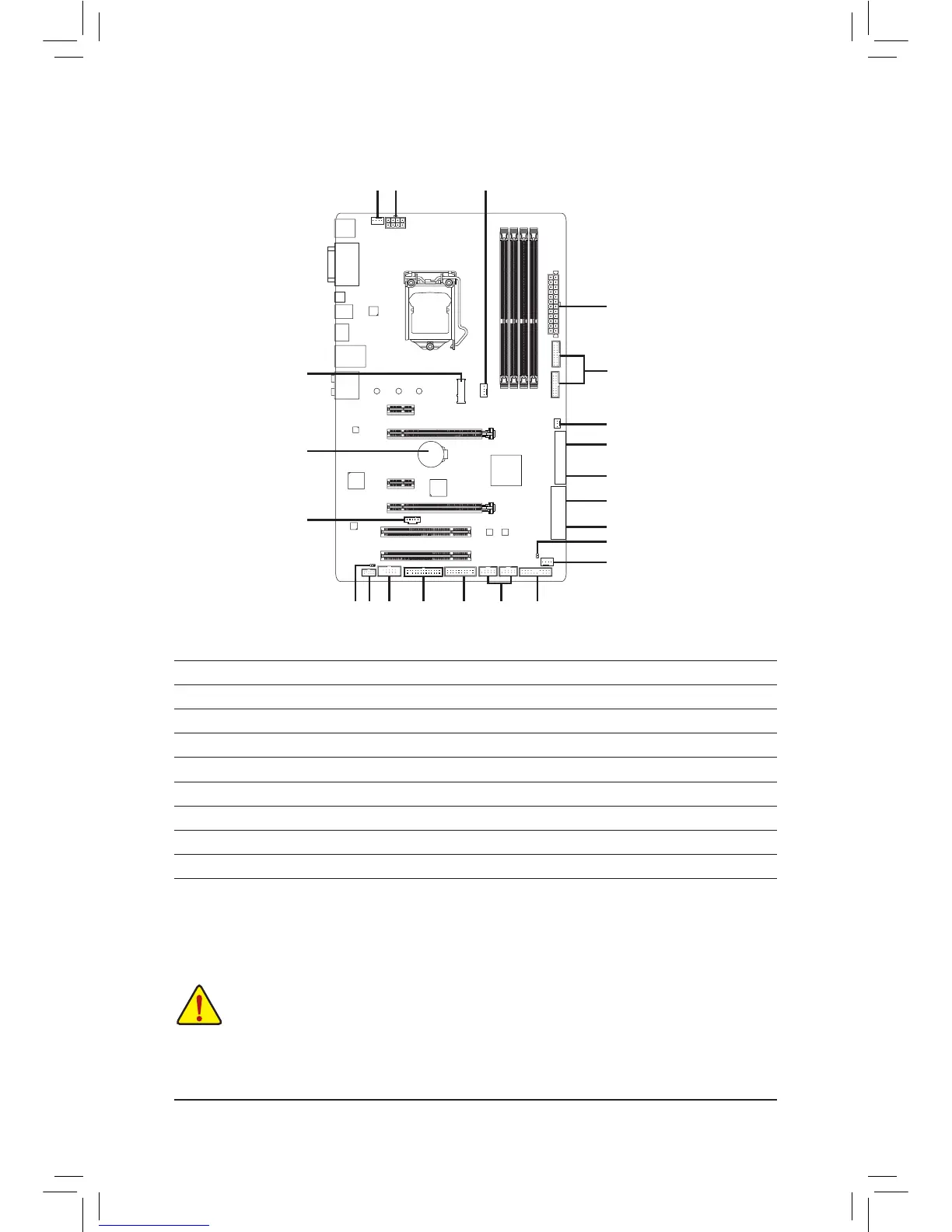

1-7 Internal Connectors
Readthefollowingguidelinesbeforeconnectingexternaldevices:
• First make sure your devices are compliant with the connectors you wish to connect.
• Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
• After installing the device and before turning on the computer, make sure the device cable has
been securely attached to the connector on the motherboard.
12
1
4
1311
8
10
4
3
18
9
14 15
7
16
4
2
5
6
5
6
17
1) ATX_12V_2X4
2) ATX
3) CPU_FAN
4) SYS_FAN1/2/3
5) SATA EXPRESS
6) SATA3 0/1/2/3/4/5
7) M2A_32G
8) BAT
9) F_PANEL
10) SPDIF_O
11) F_AUDIO
12) F_USB30_1/F_USB30_2
13) F_USB1/F_USB2
14) COMA
15) LPT
16) TPM
17) THB_C
18) CLR_CMOS
- 12 -

Gigabyte GA-Z170-HD3P Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	3333, 2133, 2400, 2666, 2800, 3000, 3200, 3300 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Serial port headers	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	-
Number of SATA Express connectors	3
RAID levels	1, 5, 10
Supported storage drive interfaces	M.2, SATA III
HDMI version	1.4
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z170
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	199 mm
Width	305 mm
