Gigabyte GA-Z170-HD3P User Manual

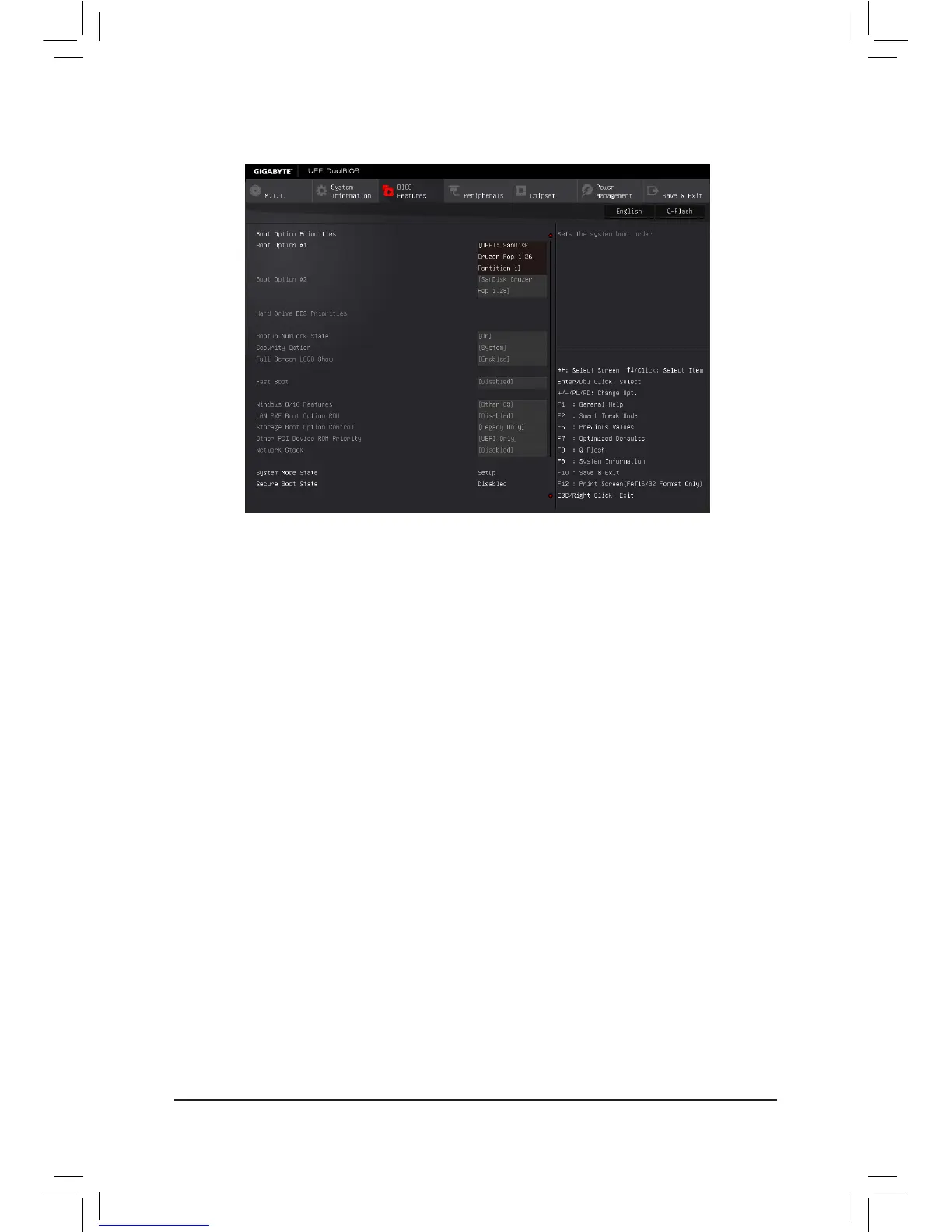

2-4 BIOS Features
& Boot Option Priorities
 Speciestheoverallbootorderfromtheavailabledevices.RemovablestoragedevicesthatsupportGPT
formatwillbeprexedwith"UEFI:"stringonthebootdevicelist.Tobootfromanoperatingsystemthat
supportsGPTpartitioning,selectthedeviceprexedwith"UEFI:"string.
Or if you want to install an operating system that supports GPT partitioning such as Windows 7 64-bit, select
theopticaldrivethatcontainstheWindows764-bitinstallationdiskandisprexedwith"UEFI:"string.
& Hard Drive/CD/DVD ROM Drive/Floppy Drive/Network Device BBS Priorities
 Speciesthebootorderforaspecicdevicetype,suchasharddrives,opticaldrives,oppydiskdrives,
and devices that support Boot from LAN function, etc. Press <Enter> on this item to enter the submenu that
presents the devices of the same type that are connected. This item is present only if at least one device
for this type is installed.
& Bootup NumLock State
Enables or disables Numlock feature on the numeric keypad of the keyboard after the POST. (Default: On)
& Security Option
 Specieswhetherapasswordisrequiredeverytimethesystemboots,oronlywhenyouenterBIOSSetup.
Afterconguringthisitem,setthepassword(s)undertheAdministrator Password/User Password item.
Setup A password is only required for entering the BIOS Setup program.
System A password is required for booting the system and for entering the BIOS Setup
program. (Default)
& Full Screen LOGO Show
Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the
GIGABYTE Logo when the system starts up. (Default: Enabled)
& Fast Boot
Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup
speed. (Default: Disabled)
& SATA Support
 All Sata Devices All SATA devices are functional in the operating system and during the POST.
(Default)
- 27 -

Gigabyte GA-Z170-HD3P Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	3333, 2133, 2400, 2666, 2800, 3000, 3200, 3300 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
USB 2.0 connectors	2
Serial port headers	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	-
Number of SATA Express connectors	3
RAID levels	1, 5, 10
Supported storage drive interfaces	M.2, SATA III
HDMI version	1.4
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	Intel® Z170
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Maximum resolution	4096 x 2160 pixels
Maximum graphics card memory	512 MB
Parallel processing technology support	2-Way CrossFireX
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Depth	199 mm
Width	305 mm
