Hardware Installation

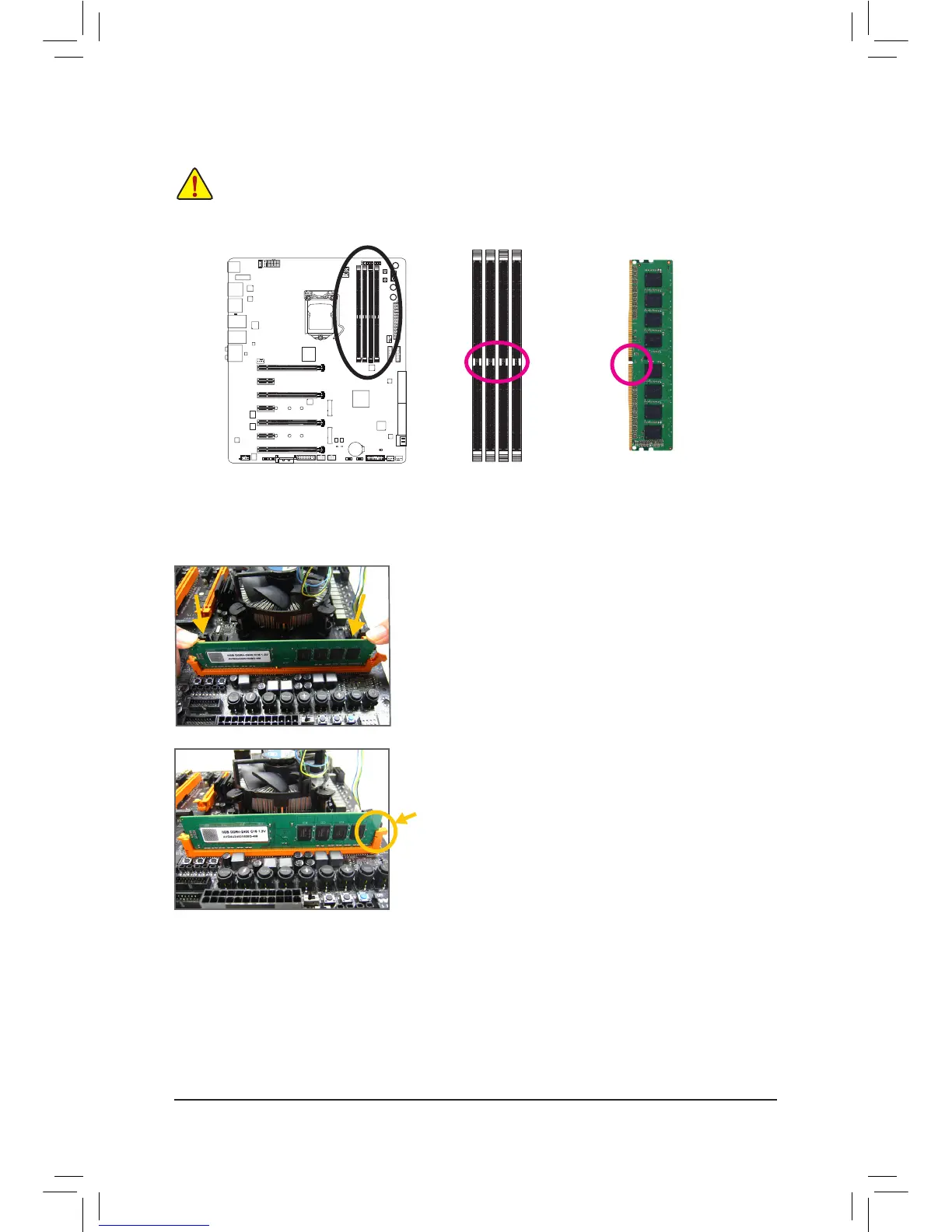

1-4-2 Installing a Memory

Before installing a memory module, make sure to turn off the computer and unplug the power cord

from the power outlet to prevent damage to the memory module. DDR4 and DDR3 DIMMs are not

compatible to each other or DDR2 DIMMs. Be sure to install DDR4 DIMMs on this motherboard.

Notch

DDR4 DIMM

ADDR4memorymodulehasanotch,soitcanonlytinonedirection.Followthestepsbelowtocorrectlyinstall

your memory modules in the memory sockets.

Step 1:

Note the orientation of the memory module. Spread the retaining clip

at the right end of the memory socket. Place the memory module on

thesocket.Asindicatedinthepictureontheleft,placeyourngers

on the top edge of the memory, push down on the memory and insert

it vertically into the memory socket.

Step 2:

The clip at the right end of the socket will snap into place when the

memory module is securely inserted.
