Gigabyte GA-Z270X-Gaming 5 User Manual

- 4 -

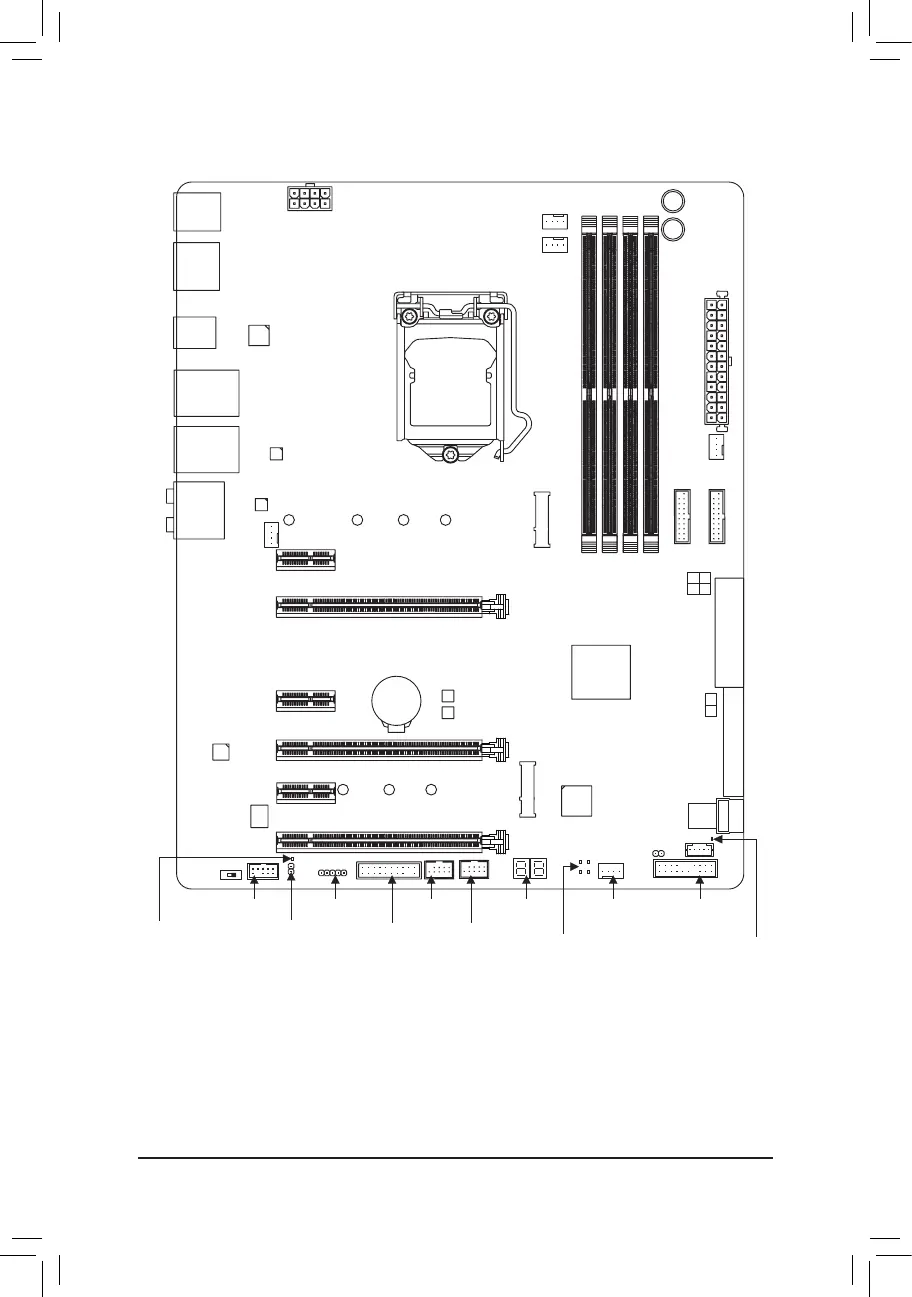

GA-Z270X-Gaming 5 Motherboard Layout
Box Contents
5 GA-Z270X-Gaming 5 motherboard 5 Four SATA cables
5 Motherboard driver disk 5 I/O Shield
5 User's Manual 5 One G Connector
5 Quick Installation Guide 5 OneRGB(RGBW)LEDstripextensioncable
(Note) Fordebugcodeinformation,pleaserefertoChapter3.
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
KB_MS_USB30
CPU_FAN
ATX_12V_2X4
ATX
F_AUDIO
AUDIO
B_BIOS
PCIEX8
DDR4_2 DDR4_1 DDR4_4 DDR4_3
BAT
F_PANELLED_C
Intel
®
Z270
CLR_CMOS
M_BIOS
PCIEX1_1
PCIEX16
F_USB1
LGA1151
GA-Z270X-Gaming 5
USB30_LAN1
SATAEXPRESS
F_USB30_2
PCIEX1_2
SYS_FAN2
SATA3
iTE
®
Super I/O
SYS_FAN3_PUMPF_USB2
TPM
M2M_32G
Intel
®
GbE LAN
SATA3
5 4 1 0
CPU_OPT
TYPEC
OC
3 2
SATAEXPRESS
F_USB30_1
USB31
USB_LAN2
DP_HDMI
M2P_32G
RivetNetworks
Killer
™
E2500 LAN
PCIEX1_3
PCIEX4
Debug LED
(Note)
ECO
TI NE5532
GAIN
SPDIF_O
CODEC
80 60 42
80 60 42
U2_32G
THB_C
CPU DRAM
VGA BOOT
SYS_FAN1
110
ASMedia
®
USB 3.1 Gen 2
Controller
System Temperature Sensor 2
System Temperature Sensor 1

Gigabyte GA-Z270X-Gaming 5 Specifications

General

Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000 MHz
Supported memory module capacities	16GB
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Component for	PC
Motherboard chipset	Intel® Z270
Audio output channels	7.1 channels
Motherboard form factor	ATX
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
BIOS type	EFI AMI
ACPI version	5.0
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
PCI Express x1 slots	3
Number of M.2 (M) slots	2
Thunderbolt headers	1
Number of SATA II connectors	0
Number of SATA III connectors	6
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.

Weight and Dimensions

Depth	305 mm
Width	244 mm
