- 15 -
Hardware Installation

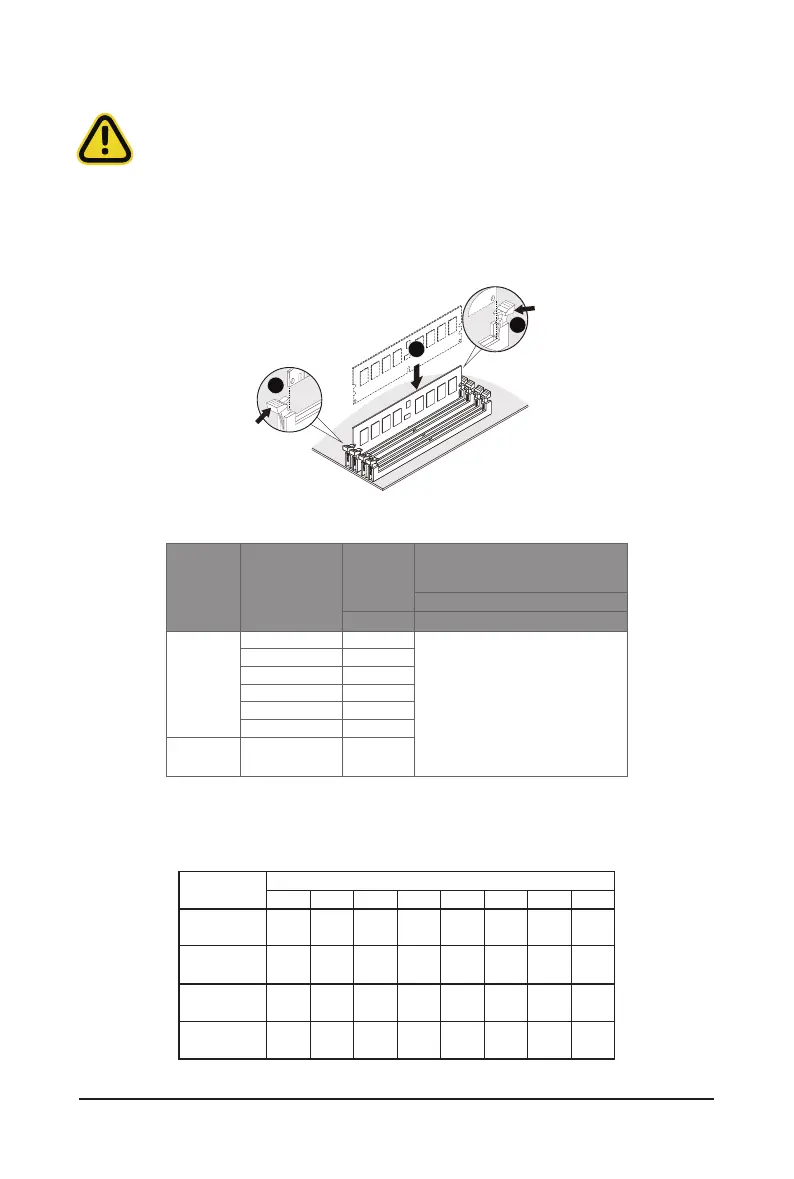

1-4-2 Installing and Removing a Memory Module
Before installing a memory module, make sure to turn off the computer and unplug the
power cord from the power outlet to prevent damage to the memory module.
Be sure to install DDR5 DIMMs on this motherboard.
1
2
2
Follow these instructions to install a DIMM module:
1. Insert the DIMM memory module vertically into the DIMM slot and push it down.
2. Close the plastic clip at both edges of the DIMM slots to lock the DIMM module.
3. Reverse the installation steps when you want to remove the DIMM module.
1-4-3 DIMM Population Table
Type
Ranks Per DIMM
and Data Width
DIMM
Capacity
(GB)
Speed (MT/s); Voltage (V);
DIMM per Channel (DPC)
1DPC*
16Gb 1.1V
RDIMM
SRx8 (RC D) 16GB
4800
SRx4 (RC C) 32GB
SRx4 (RC F) 9x4 32GB
DRx8 (RC E) 32GB
DRx4 (RC A) 64GB
DRx4 (RC B) 9x4 64GB
RDIMM 3DS
(4R/8R)x4
(RC A)
2H-128GB
4H-256GB
*1DPC applies to 1SPC or 2SPC implementations (SPC - Sockets Per Channel)
1-4-4 Processor and Memory Module Matrix Table
4 DIMM
Memory Q’ty
1 DIMM
2 DIMM
8 DIMM
CPU0
D0 C0 B0 A0 E0 F0 G0 H0
V
V V
VVVV
VV V V VVVV
To Next Page
