Gigabyte Z490 AORUS ULTRA User Manual

- 4 -

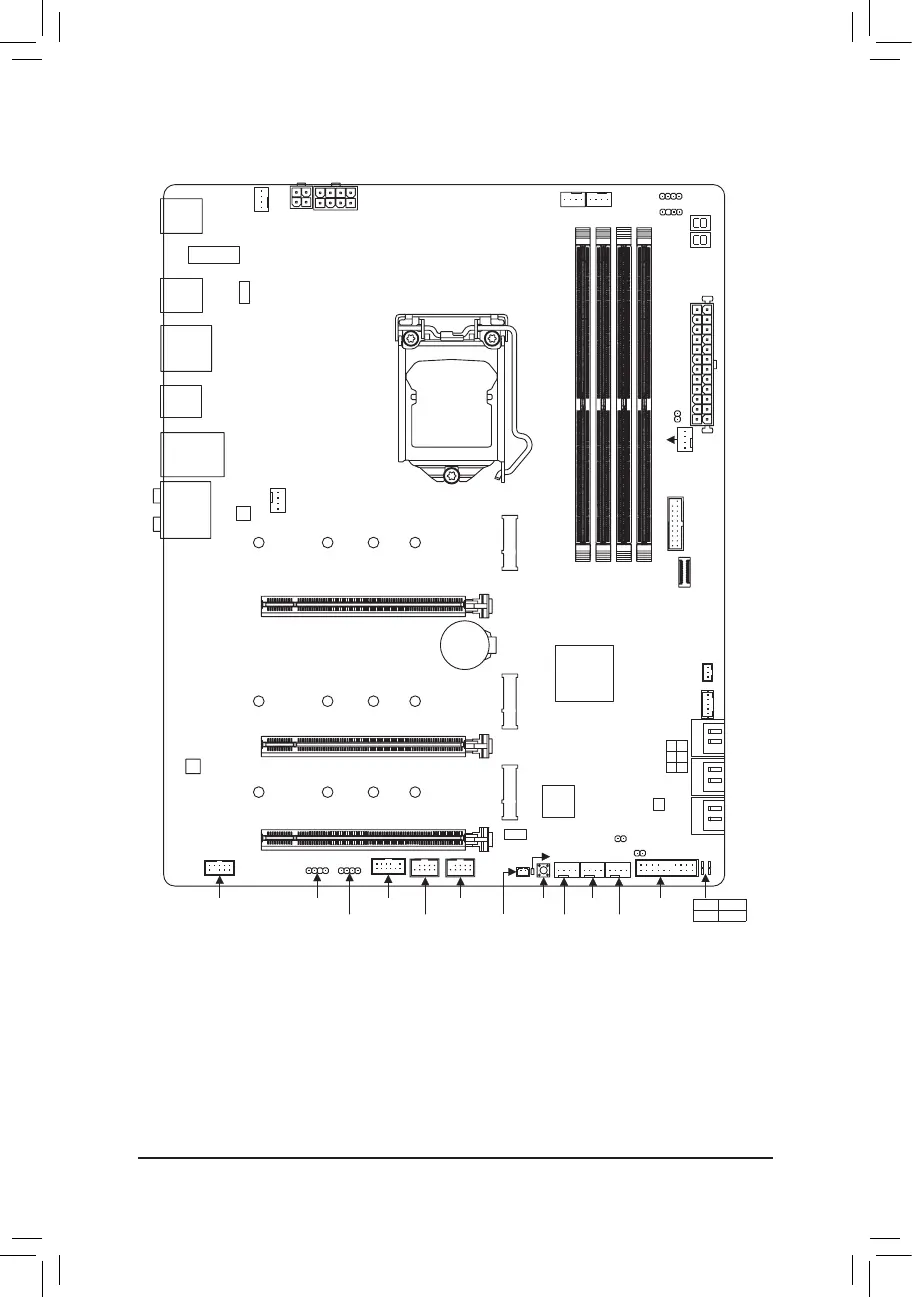

Z490 AORUS ULTRA Motherboard Layout
Box Contents
5 Z490 AORUS ULTRA motherboard 5 Four SATA cables
5 Motherboard driver disc 5 One antenna
5 User's Manual 5 One G Connector
5 Quick Installation Guide 5 One noise detection cable
5 Two RGB LED strip extension cables 5 Two thermistor cables
* The box contents above are for reference only and the actual items shall depend on the product package you obtain.
The box contents are subject to change without notice.
(Note) For debug code information, please refer to Chapter 3.
CNVI
U32
HDMI
U32G2
U32G2C
LGA1200
ATX
AUDIO
DDR4_A1 DDR4_A2 DDR4_B1 DDR4_B2
BAT
Intel
®
Z490
CLR_CMOS
M_BIOS
THB_C1
THB_C2
USB 2.0 Hub
Intel
®
GbE LAN
CODEC
PCIEX16
PCIEX8
PCIEX4
F_U32C
F_U32
SYS_FAN6_PUMP
DB_PORT
(Note)
SYS_FAN1
SYS_FAN2
426080110
M2P_SB
426080110
M2A_CPU
426080110
M2M_SB
Z490 AORUS ULTRA
QFLASH_
PLUS
F_USB1 F_PANELD_LED1F_AUDIO SPI_TPM
F_USB2
NOISE_
SENSOR
LED_C1 SYS_FAN5_
PUMP
SYS_FAN3
CPU_FAN
CPU_OPT
SYS_FAN4
iTE
®
Super I/O
D_LED2
LED_C2
ATX_12V_2X4
ATX_12V_2X2
USB 2.0 Hub
QFLED
SATA3
5 3 1 4 2 0
CPU DRAM
VGA BOOT
USB20_1
USB20_2
U32G2_LAN
EC_TEMP1
EC_TEMP2

Gigabyte Z490 AORUS ULTRA Specifications

General

Audio chip	Realtek ALC1220-VB
Cooling type	Passive
Component for	PC
Motherboard chipset	Intel Z490
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Bundled software	Norton® Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license)
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	256 Mbit
Clear CMOS jumper	Yes
System Management BIOS (SMBIOS) version	2.7
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	3000, 3200, 3300, 3333, 3400, 3466, 3600, 3666, 3733, 3800, 3866, 4000, 4133, 4266, 4300, 4400, 4500, 4600, 4700, 4800, 4933, 5000 MHz
LAN controller	Intel AX201
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Ethernet interface type	2.5 Gigabit Ethernet
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	M.2, SATA III
Graphics card	HD Graphics
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	2-Way CrossFireX, 2-Way SLI, Crossfire, Quad-GPU SLI
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Digital audio optical out	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	-
Number of SATA III connectors	6

Weight and Dimensions

Depth	244 mm
Width	305 mm
