10

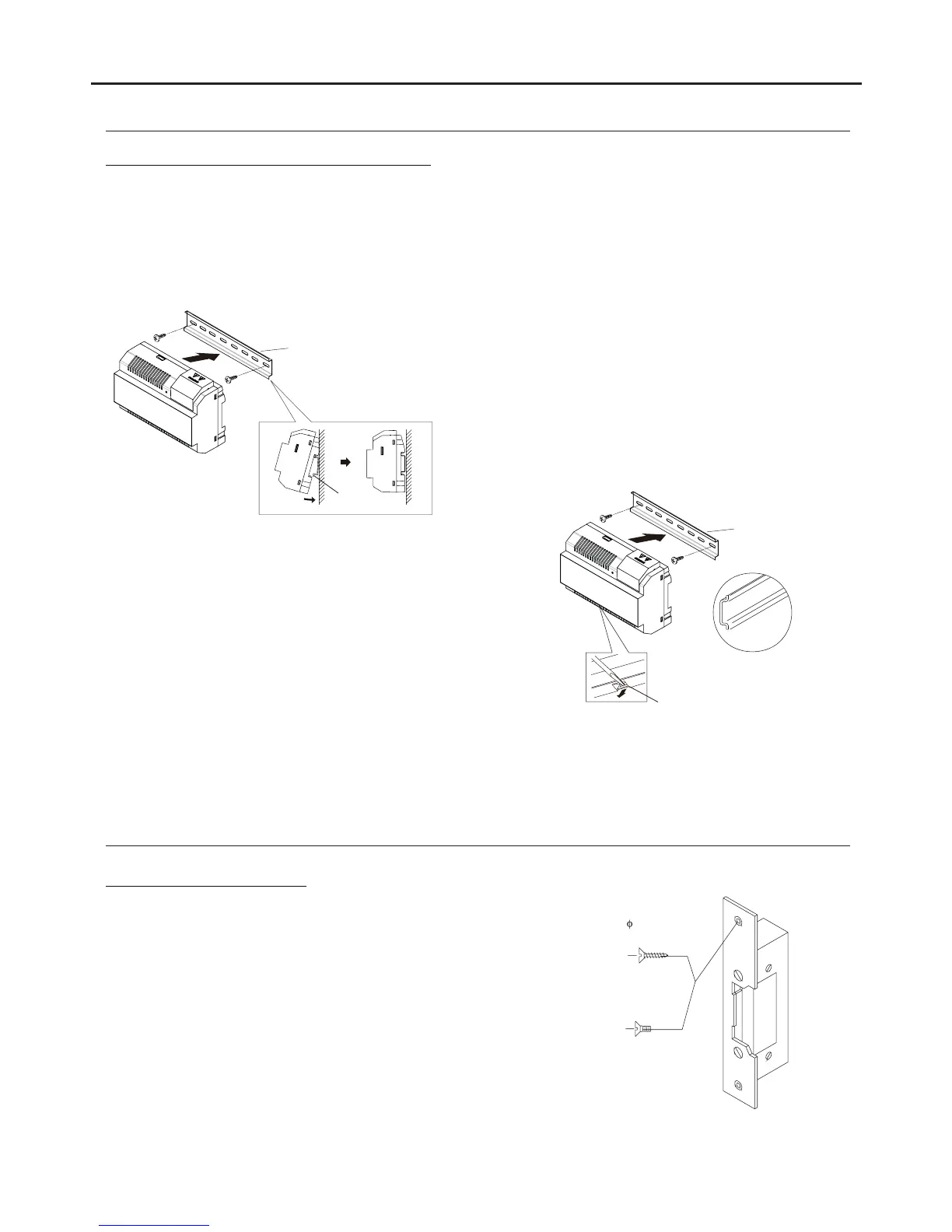

INSTALLATION OF THE POWER SUPPLY UNIT
Installing the FA-GB2/A power supply unit:
M 4 x 8
3,5 x 25
DIN-7972
DIN-963
IMPORTANT:
- The lock release must be 12V DC orAC (Golmar).
(See page 18 forAC lock releases and pages 11-18 for DC lock releases).
- The kit is supplied with two varistors. If connecting an AC lock release to one of the outputs, fit the varistor
supplied directly to the lock release terminals to ensure the device functions correctly.
If the lock release is to be fitted to a metal door, use a Ø3.5mm drill bit and
thread the hole made. For wooden doors, use a Ø3mm drill bit.
Installing the lock release:
INSTALLATION OF THE LOCK RELEASE
STAINLESS STEEL NEXA MODULAR GB2 VIDEO DOOR ENTRY SYSTEM KIT – HOUSES
Replace the protective cover once the input terminals have been wired.
Please note that current regulations stipulate that the power supply
must be protected by a circuit breaker.
Connect the FA-GB2/A power supply unit to the earth connection.
Mount the DIN rail to the wall with the plugs and screws
supplied.
Then attach the power supply by applying slight pressure.
The power supply can be installed on a DIN 46277 rail.
.
To remove the power supply unit from the DIN rail, use a flat
screwdriver to lever it off, as shown in the drawing.
The FA-GB2/A model requires 8 elements on the rail.
IMPORTANT: the maximum number of units that can be connected to an FA-GB2/A power supply is
18 PENTHAGB2 monitors.
Install the power supply unit in a dry protected location free from the risk of dripping or splashing water.
To prevent electric shock, do not remove the protective cover of the primary or handle the wiring.
The fitting and handling of this device must be carried out by in the absence of electricalauthorised personnel
current.
To avoid damage, the power supply unit must be firmly secured in place.
DIN rail.
DIN rail.
DIN rail.
DIN 46277
DIN rail latch release.
