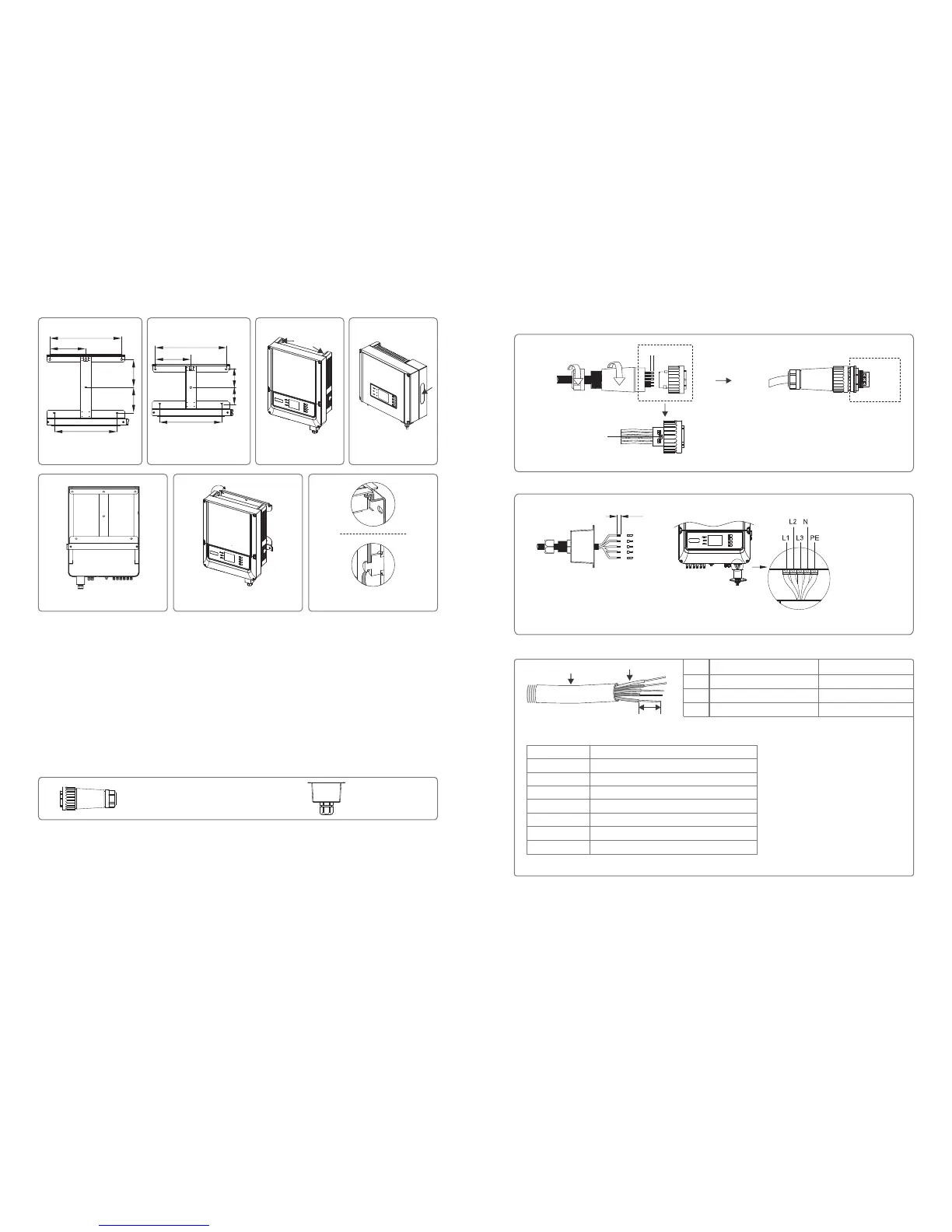

There are two AC connector brands for inverter,---VACONN Series and Waterproof Coupling Series, please refer to Figure 3.4.1-1.
Installation instruction of VACONN series connector please refer to Figure3.4.1-2.
Figure 3.4.1-1
VACONN Series
Waterproof Coupling Series
10mm
Inverter
Fastening five screws
to ensure each screw head
is not exceeding the surface
fasten screw cap clockwise
Figure 3.4.1-2
Pin1 ---- Live Wire 1 in
Pin3 ---- Live Wire 2 Pin4 ---- Live Wire 3
Pin5----- Earth Wire
P 2 ---- Neutral Wire
3.4 Electrical Connection
3.4.1 Connection to Grid (AC Side Connection)
(1) Check the grid voltage and frequency, select a suitable safety standard from inverter that comply with this requirements.
(2) Add breaker or fuse to AC side, the specification should be more than 1.25 times of rated AC output current.
(3) The PE line of inverter should be connected to the earth, make sure the impedance of neutral wire and earth wire less
than 10 ohm.
(4) Disconnect the breaker or fuse between the inverter and the utility.
(5) Connect the inverter to the grid as follows:
Installation instruction of waterproof coupling series connector please refer to Figure 3.4.1-3.
AC cable illustration please refer to Figure 3.4.1-4.
wire crimpers impose line
L1 ----- 1
L2 ----- Live Wire 2
L3 ----- Live Wire 3
N ------ Neutral Wire
PE------ Earth Wire
Live Wire
Figure 3.4.1-3
10~12mm
fasten screw cap clockwise
Value
DT: 18~25mm; SDT: 11~20mm
DT: 4~10mm²; SDT: 4~8mm²
12mm around
Grade Description
A O.D.
B Conductor Material Sectional Area
C Bare Wire Length
*
Figure 3.4.1-4
A
B
C
Tighten the screws
Figure 3.3.2-1
Figure 3.3.2-5 Figure 3.3.2-6 Figure 3.3.2-7
Figure 3.3.2-3
177163.5
400
457
228.5
Figure 3.3.2-2
457
228.5
400
117.5
104.5
Figure 3.3.2-4
Model
GW010K-DT
GW012K-DT
GW015K-DT
GW009K-DT
GW017K-DT
GW020K-DT
GW025K-DT
Conductor Material Sectional Area
2
4~10mm
2
4~10mm
2
4~10mm
2
4~10mm
2
4~10mm
2
6~10mm
2
6~10mm
*Value of Conductor Material Sectional Area refers to the following table
To Next Page
