Special features of the GR-16 HoTT receiver
Connection 6
6CH FUNCTION
Depending on the settings in the "6CH FUNCTION" line of the "RX
DATAVIEW" page of the telemetry menu, the output 6 can be used
to connect RC components or a circuit for voltage measurement.
Carry out the changeover as described in the instructions for the
transmitter or the SMART-BOX.
• SERVO
The connection 6 is suitable for the operation of RC components.
• BATT V
After switching as described before, a DC voltage off max. 25,5 V
can be displayed instead of the receiver voltage. This way it is
possible to monitor the main battery voltage without using exter-
nal sensors. The ESCs S3082 and S3083 have this switch already
included.
–
+
Attention
Never connect a power supply with an output voltage higher than
8,4 V directly to a connection port of the receiver! The receiver and
all connected devices would be immediately destroyed.

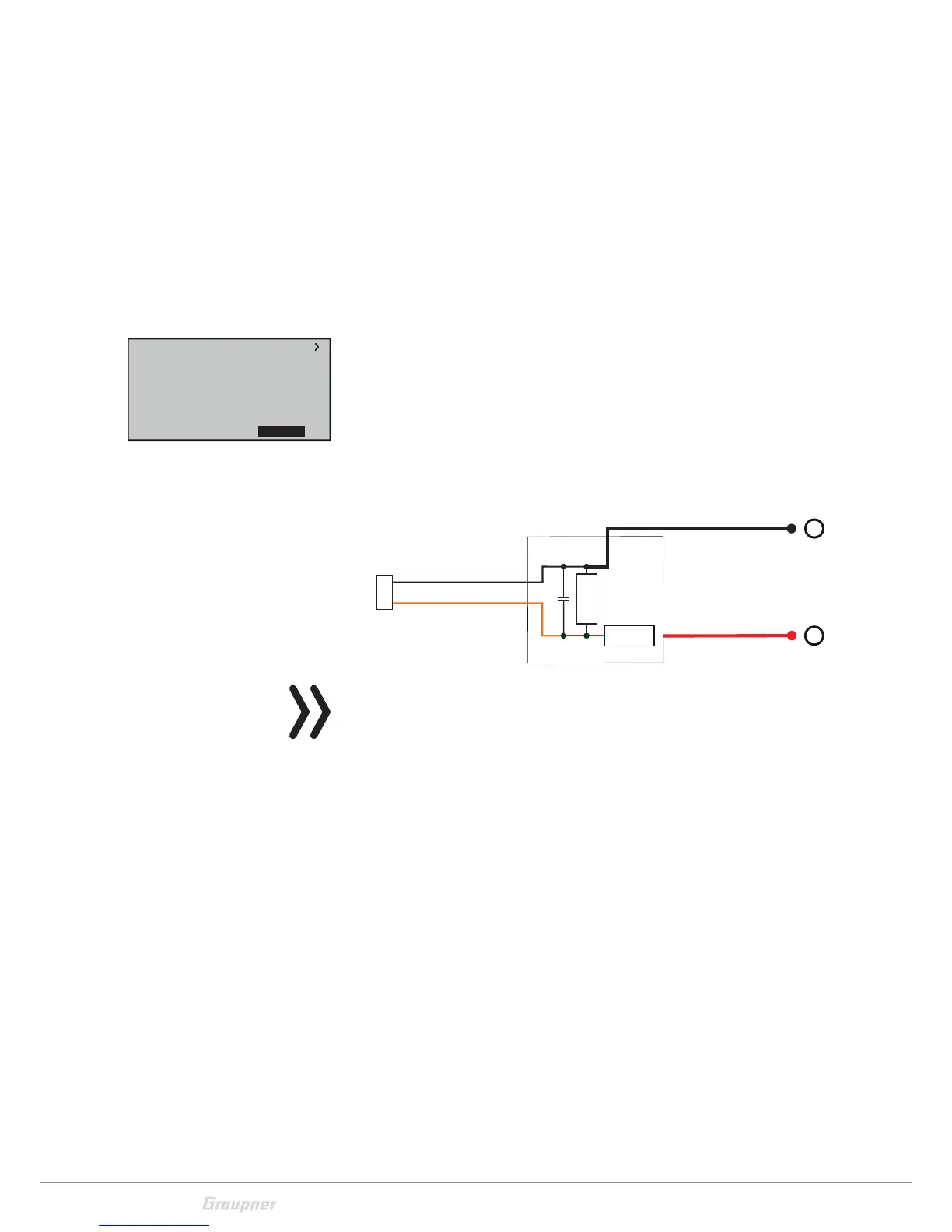

RX DATAVIEW V6.39
S–STR100% R–TEM.+28°C
L PACK TIME 00010msec
R-VOLT :05.0V
L.R-VOLT:04.5V
S–QUA100%S–dBM–030dBM
6CH FUNCTION:SERVO
To Next Page
