CAUTION
• Protect the batteries from dust, dirt, moisture, heat and vibra-
tions. Only use in dry locations.
• Do not use any damaged battery.
• Batteries may not be heated, burned, short-circuited.
• If handled improperly, there is a danger of fire, explosion, irri-
tation and burns.
• Leaked electrolyte is caustic and should not be touched or
come into contact with your eyes. In case of emergency, rinse
with a large quantity of water and consult a Med. Doctor.
• Stock the batteries in dry and fresh conditions.
• Dispose of the battery in the proper disposal centers.
Installation
The receiver must be protected against dust, exhaust gases, splash
water, etc. in the model. When you install your receiver, make sure
that it is not excessively airtight to prevent it from overheating during
operation.
Servo cables may not be wound around antennas or run next to
them. Make sure that the cables cannot shift to lie directly adjacent
to antennas during flight.
In the case of carbon fibre fuselage, at least the last 35 mm of the
antennas shall be routed from the fuselage.
Connections
Connect the devices that have to be connected to the receiver to the
row of sockets on one end of the receiver. The servo connections of
the Graupner-HoTT receiver are numbered.
The polarity of the plug-in system cannot be reversed. Do not apply
force.

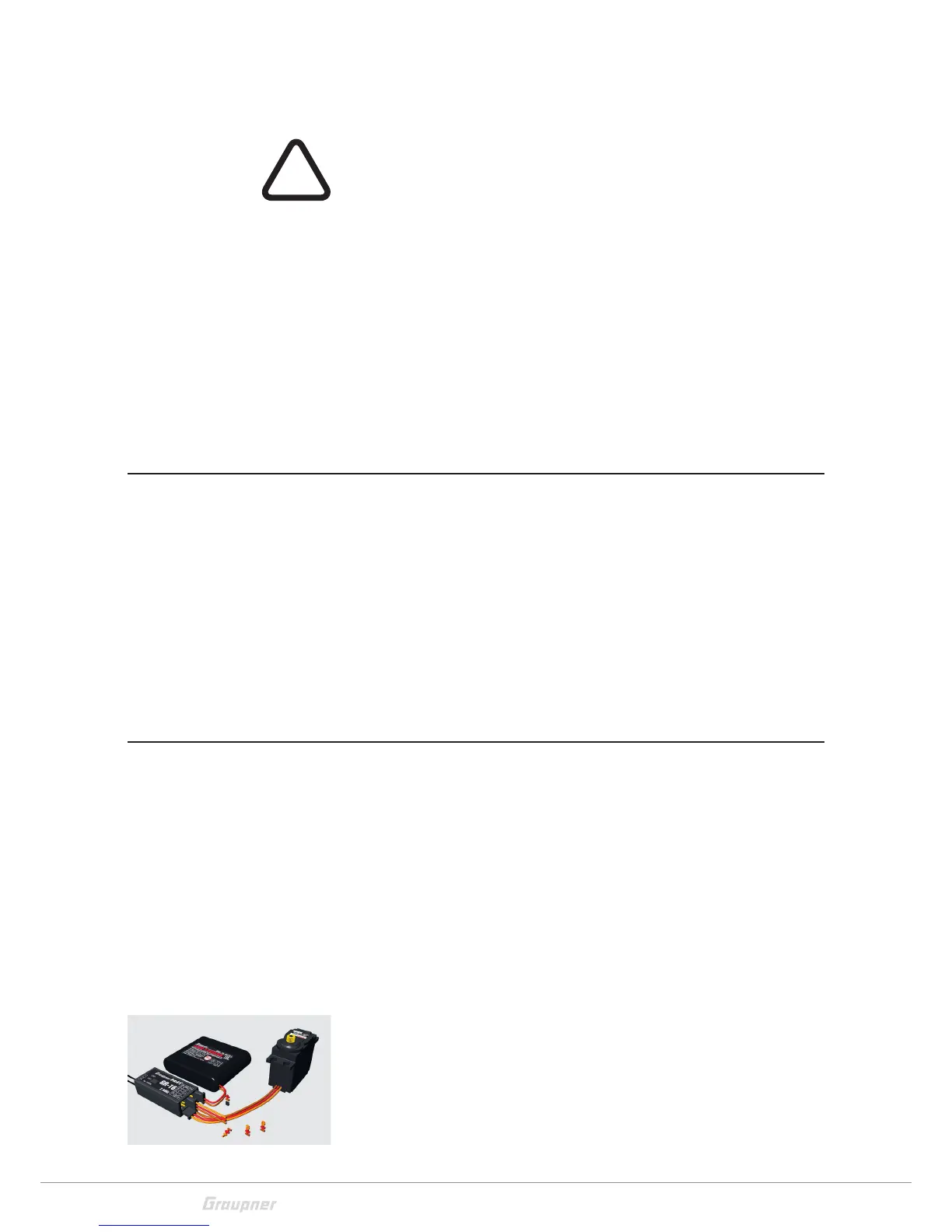

Power supply
For the battery connection are designated the ports 1 and 6, they
are also provided with an additional "B". In principle, however, you
can connect a battery to any free socket. By V- or Y-cable, but also
with any remote control component. We recommend that you con-
nect the power supply to the socket(s) close to the servos already
connected to the receiver. If you wish to connect multiple separate
batteries, the batteries must be of the same nominal voltage and
capacity.
