14 1/00
CONTROLS AND FEATURES

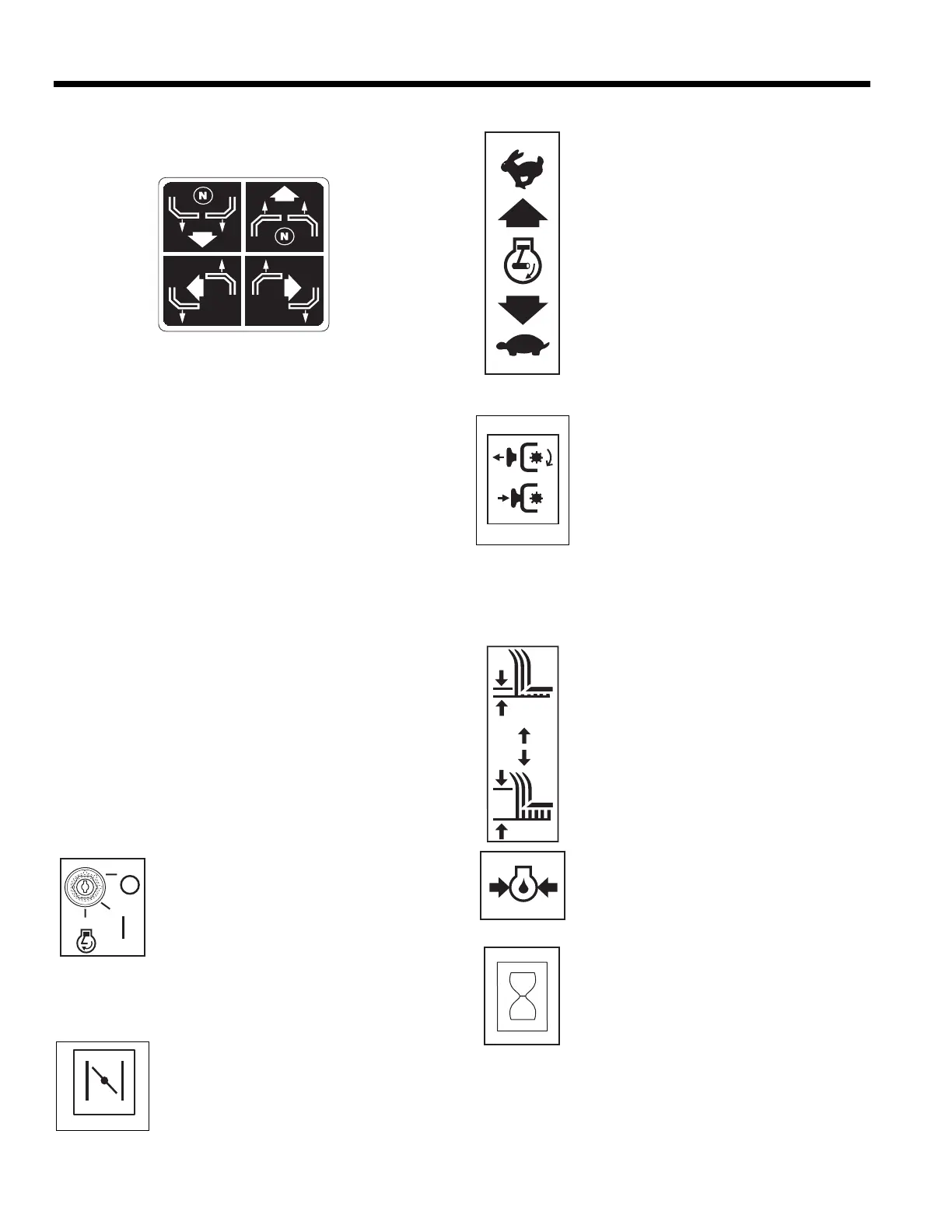

See Figure 1 for Controls and Features locations.
Steering Levers
The control levers are used for both speed and direction
control. In addition, they will stop the unit.
A. For reverse travel, pull both steering control levers
backward.
B. For straight forward travel, push both steering control
levers forward.
C. To turn left, pull the left back or push the right
Steering Control Lever forward or a combination of
both.
D. To turn right, pull the right back or push the left
Steering Control Lever forward or a combination of
both.
To stop, return both to the neutral position.
When released, levers should automatically return to
neutral position.
NOTE: The steering controls are mechanically locked in
neutral whenever the parking brake is engaged.
NOTE: Aggressive turning can scuff or damage lawns.
ALWAYS keep both wheels rotating when making sharp
turns. DO NOT make turns with inside wheel completely
stopped. To obtain minimum turning radius, slowly
reverse inside wheel while moving outside wheel slowly
forward.
Ignition Switch
The ignition switch is operated with a
removable key. The switch has three
positions: “Off”, “Run” and “Start”.
To start the engine, the key must be in the
“Start” position. Once the engine has
started release the key and it will return to
the “Run” position. To stop the engine,
turn the key to the “Off” position.
Choke Control
The choke control is used to start a cold
engine. Push the choke lever forward to
choke the engine. Pull the choke lever to
the rear when the engine gets warm.
Throttle Lever
The throttle lever is used to change the
speed of the engine. Moving the throttle
lever to the “Fast” position increases the
engine speed. Moving the lever to the
“Slow” position decreases the engine
speed.
Power Take Off (PTO) Switch
The power take off (PTO) switch is used to
engage and disengage the mower. When
the PTO switch is in the “On” position,
mower is engaged; when the PTO switch
is in the “Off” position, mower is disen-
gaged. Pull for “On” and push for “Off”.
NOTE: The engine will not start unless the steering
control levers are in the neutral position and the PTO
switch is in the “Off” position and parking brake is set.
Mower Lift Lever
The mower lift lever is used to raise and
lower the mower deck. The lift lever is
located on the left side of tractor. Move the
lever rearward to raise, and forward to
lower the deck. Release lever to hold in
selected position. The approximate
mowing height in inches is shown on the
indicator located on the lift cylinder near
operator’s right foot.
Engine Oil Pressure Indicator
This will light up “Red” if the oil pressure is
low. Check oil level and add if necessary.
Refer to engine manual.
Hour Meter
Hour Meter operates when Ignition
Switch is in the “Run” position and
records actual time engine operates.
IMPORTANT: Keep a record of Hour
Meter readings for recommended
Lubrication and Maintenance intervals.
NOTE: For accurate readings be sure Ignition Switch is
OFF when tractor is not in operation.
077348A
A
B
C
D
START
RUN
OFF
OF1750
OF1680
OF1700
SLOW
FAST
OE0261
OFF
ON
OF1700
OG0601
SECTION 4: OPERATION
