OIL PRESSURE WARNING LIGHT
See Figure 15.
Illuminates when oil pressure is low. Stop
engine immediately and refer to engine
manual.
MALFUNCTION INDICATOR
LIGHT
Models 992278, 992279, 992282, 992283,
992284, 992288, 992289, 992290
Illuminates when an engine-related problem
occurs. Stop engine immediately and refer to
engine manual.
DECK LIFT PEDAL
Raises mower deck to unlock height-of-cut
dial and adjust setting.
HEIGHT-OF-CUT ADJUSTMENT
DIAL
See Figure 16.
Sets the height of cut.
TRANSPORT LOCK
Locks mower deck in the highest position for
transporting or moving unit from one work
area to another. See Transport Unit on
page 22.
TRANSPORT LOCK RELEASE
LEVER
See Figure 17.
Releases deck from transport lock position.
Transport lock will not engage with transport
lock release lever in rear position.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
SEAT HEIGHT ADJUSTMENT
SWITCH
Raises and lowers seat height for operator
comfort.
LUMBAR SUPPORT
ADJUSTMENT LEVER
Controls the lumbar support in the backrest
for operator comfort.
BACKREST ADJUSTMENT DIAL
Controls the angle of the backrest for
operator comfort.
ARMREST ANGLE ADJUSTMENT
KNOBS
Set armrest angle for operator comfort.
HOUR / MAINTENANCE METER
Measures and displays engine runtime.
Some models also display service alerts and
recommended service intervals.

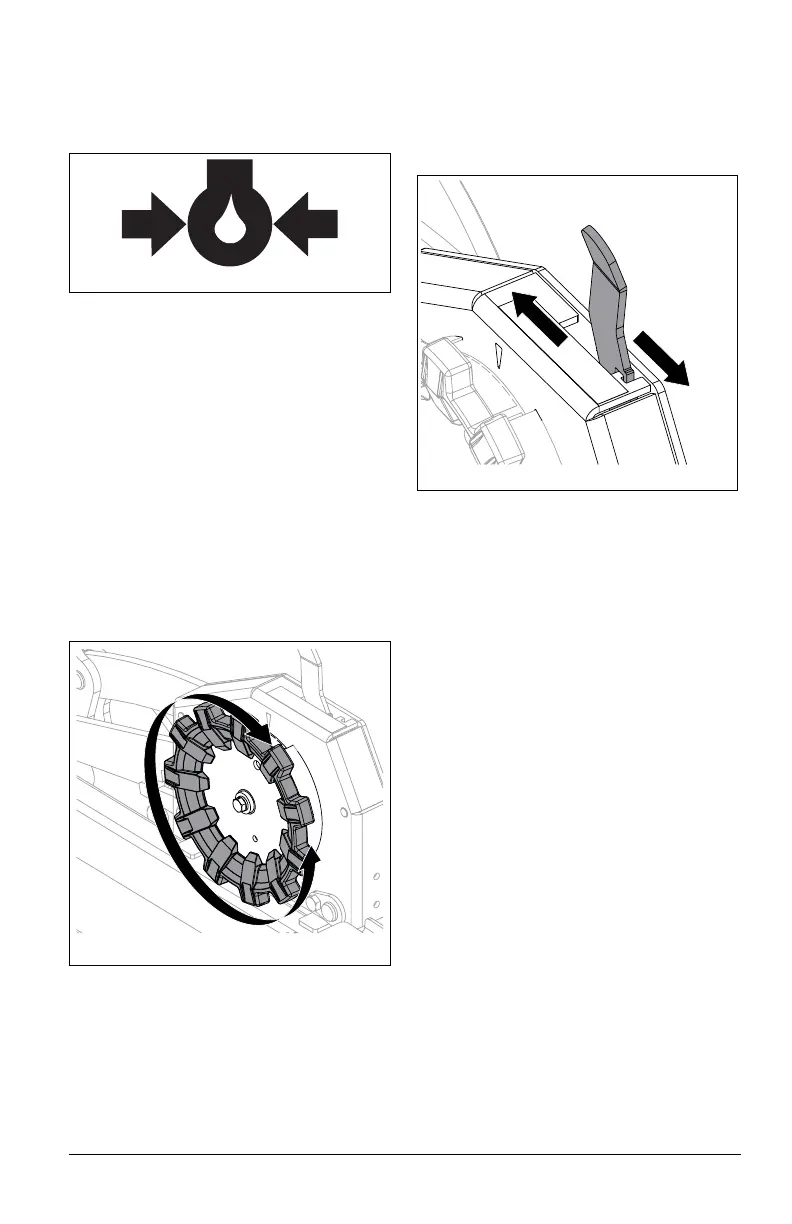

Figure 15
Figure 16
Figure 17
Transport
Lock
Disengaged
Transport
Lock
Engaged
