Set Parking Brake Neutral
1. Adjust transaxles. See Adjust Transaxles
on page 30.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Release parking brake.
4. Loosen hardware retaining eccentric
spacer on the affected side(s).
5. Engage parking brake and rotate
eccentric spacer so it aligns in brake
interlock. See Figure 40.
6. Tighten eccentric spacer hardware.
7. Stop engine, return unit to operating
position and adjust steering levers. See
Adjust Steering Levers on page 32.
ADJUST STEERING LEVERS
Align Steering Levers
If there is more than 3.2 mm (1/8") between
the horizontal alignment of the steering
levers, align the levers.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Loosen mounting hardware, align levers
and tighten hardware. See Figure 41.
Adjust Forward Position
The steering lever forward position may be
adjusted for operator comfort.
See Figure 41.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for
moving parts to stop and for hot parts to
cool.
3. Loosen mounting hardware on steering
lever assemblies.
4. Place steering levers in desired position:
• Gently push levers forward for greater
distance from operator.
• Gently pull levers back for closer
distance to operator.
5. Tighten hardware.
IMPORTANT: The steering levers should not
touch each other. There should be no more
than 3.2 mm (1/8") difference between the
horizontal and vertical alignment of the
levers.

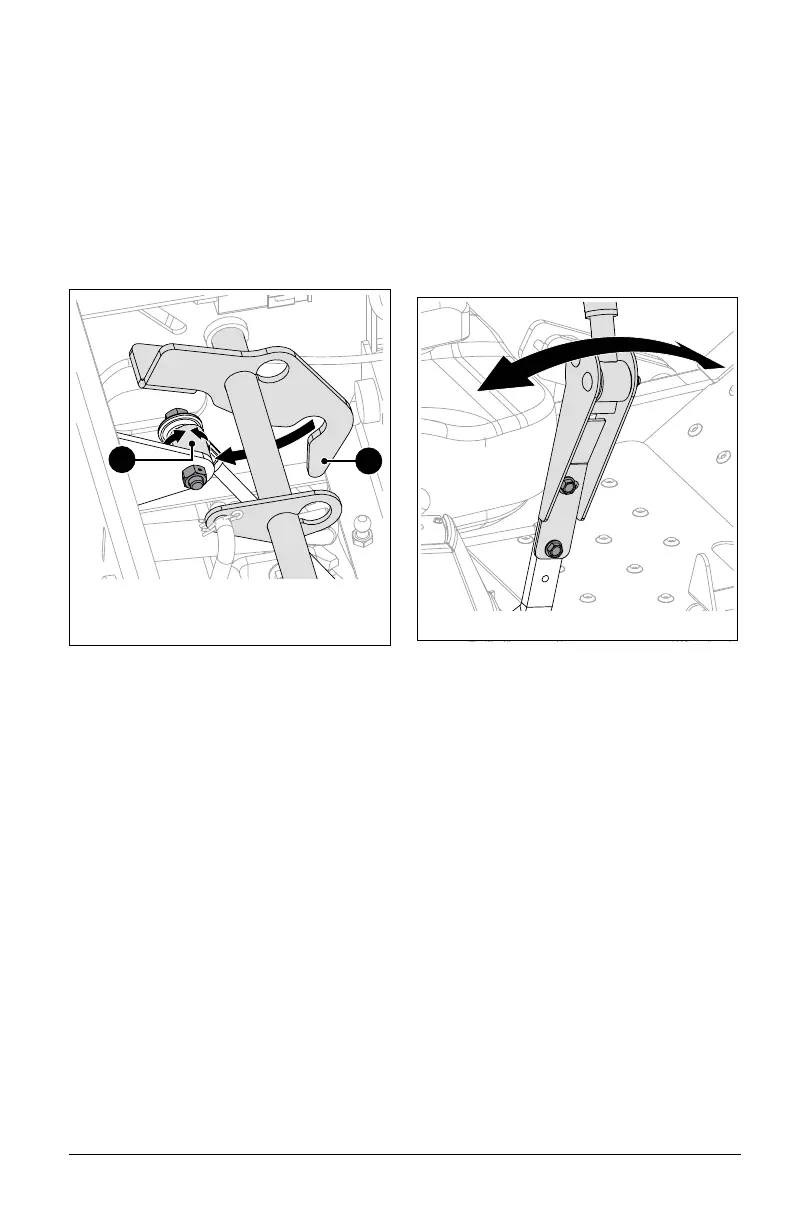

Figure 40
1. Parking Brake Interlock
2. Eccentric Spacer
1
2
Figure 41
